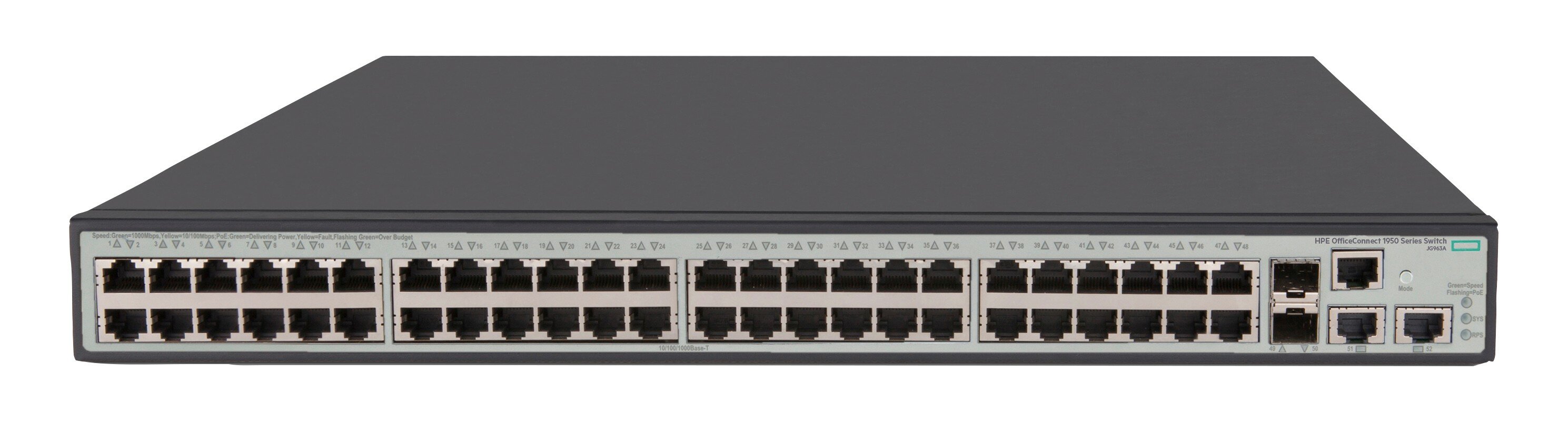

HPE 1950-48G-2SFP -2XGT- Switch 48-porte Gigabit PoE+
€627,37
HPE 1950-48G-2SFP+-2XGT-PoE+ - Switch - L3 - Administreret - 48 x 10/100/1000 (PoE+) + 2 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+ + 2 x 10Gb Ethernet - monterbar på stativ - PoE+ (370 W)
Availability: In stock
Secure payment · Fast delivery
EAN:5706998928900Brand:
HPE 1950-48G-2SFP+-2XGT-PoE+ - Switch - L3 - Administreret - 48 x 10/100/1000 (PoE+) + 2 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+ + 2 x 10Gb Ethernet - monterbar på stativ - PoE+ (370 W)
Specifications
Specifications
| Produktbeskrivelse | HPE 1950-48G-2SFP+-2XGT-PoE+ - switch - 48 porte - Administreret - monterbar på stativ |
| Enhedstype | Switch - 48 porte - L3 - Administreret - kan stables |
| Pakningstype | Monterbar på stativ 1U |
| Undertype | Gigabit Ethernet |
| Porte | 48 x 10/100/1000 (PoE+) + 2 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+ + 2 x 10Gb Ethernet |
| Power Over Ethernet (PoE) | PoE+ |
| PoE-budget | 370 W |
| Præstation | Gennemløb (64-byte pakkestørrelse): 130.9 Mpps<br>Routing/switching kapacitet: 176 Gbps |
| Kapacitet | IPv4 indtastning i routing-tabel: 32<br>IPv6 indtastning i routing-tabel: 32 |
| MAC adresse table størrelse | 16.384 indtastninger |
| Jumborammesupport | Ja |
| Routingprotokol | IGMP, statisk IPv4 routing, statisk IPv6 routing |
| Protokol til fjernadministration | SNMP 1, RMON 2, SNMP 3, SNMP 2c, HTTP, HTTPS |
| Egenskaber | Understøttet af ARP, portspejling, halv dupleksmodus, fuld dupleksmodus, STP support, VRRP support, ACL support, QoS, MDL snooping, ECMP, STP Root Guard, LLDP support, LACP, pakkestormbeskyttelse, CoS |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at |
| Effekt | AC 120/230 V (50/60 Hz) |
| Dimensioner (B x D x H) | 44 cm x 42 cm x 4.4 cm |
| Vægt | 7 kg |
| Lokalisering | Engelsk / Europa |
| Producentgaranti | Begrænset livtidsgaranti |
| Authentication Method | RADIUS |
| Capacity | IPv4 routing table entries: 32 | IPv6 routing table entries: 32 |
| Compliant Standards | CISPR 22 Class A, EN 61000-3-3, EN55024, UL 60950, ICES-003 Class A, RoHS, IEC 60950-1, WEEE, FCC Part 15 A, VCCI Class A, EN 61000-3-2:2000, GB 4943.1, EN 55022 Class A |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Features | ARP support, port mirroring, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Virtual Route Redundancy Protocol (VRRP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, Equal-Cost Multipath ( |
| Flash Memory | 128 MB |
| Jumbo Frame Support | Yes |
| MAC Address Table Size | 16384 entries |
| Performance | Throughput (64-byte packet size): 130.9 Mpps | Routing/switching capacity: 176 Gbps |
| PoE Budget | 370 W |
| Ports | (48) RJ-45 auto-negotiating 10/100/1000 PoE+ ports (2) SFP+ fixed 1000/10000 SFP+ ports (2) RJ-45 1/10GBASE-T ports |
| RAM | 1 GB SDRAM |
| Remote Management Protocol | SNMP 1, RMON 2, SNMP 3, SNMP 2c, HTTP, HTTPS |
| Routing Protocol | IGMP, static IPv4 routing, static IPv6 routing |
| Subtype | Gigabit Ethernet |
| Interfaces | 1 x 1000Base-T RJ-45 PoE+ | 2 x Gigabit / 10Gbit LAN SFP+ | 2 x 10GBase-T RJ-45 | 1 x console RJ-45 management |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Localization | English / Europe |
| MTBF | 26.8 years |
| Depth | 42 cm |
| Height | 4.4 cm |
| Weight | 7 kg |
| Width | 44 cm |
| Service & Support | Limited warranty - advance parts replacement - lifetime - response time: next business day |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Memory and processor | 128 MB flash Packet buffer size: 3 MB 1 GB SDRAM |
| Latency | 100 Mb Latency: < 5 µs 1000 Mb Latency: < 5 µs 10 Gbps Latency: < 1.5 µs |
| Throughput | up to 130.9 Mpps |
| Routing/switching capacity | 176 Gbps |
| PoE capability | 370 W PoE+ |
| Stacking capabilities | Virtual 4 switches |
| Management features | IMC - Intelligent Management Center Limited command-line interface Web browser SNMP manager HTTPS RMON1 FTP Supported by HPE IMC and generic SNMP management platforms. Refer to documentation for MIB support details. |
| Input voltage | 100 - 240 VAC, rated (depending on power supply chosen) |
| Operating humidity range | 10 to 90% (noncondensing) |
| Power consumption | 470 W (maximum) |
| Product dimensions (metric) | 44 x 42 x 4.4 cm |
