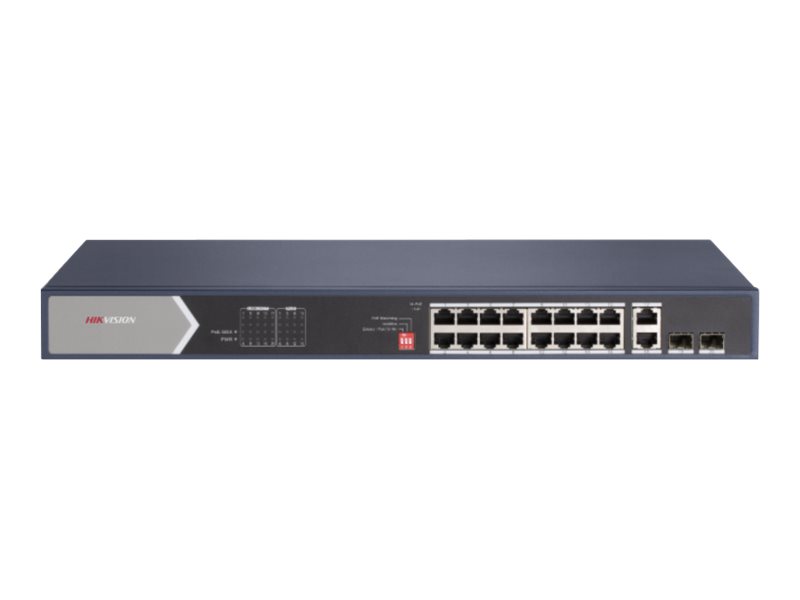

Hikvision Pro Series DS-3E0520HP-E Switch 20-porte Gigabit High PoE / PoE
€394,25
Hikvision Pro Series DS-3E0520HP-E - Switch - ikke administreret - 12 x 10/100/1000 (PoE) + 4 x 10/100/1000 (Hi-PoE) + 2 x 10/100/1000 + 2 x Gigabit SFP - monterbar på stativ - High PoE / PoE (225 W)
Availability: In stock
Secure payment · Fast delivery
EAN:6941264031628Brand:
Hikvision Pro Series DS-3E0520HP-E - Switch - ikke administreret - 12 x 10/100/1000 (PoE) + 4 x 10/100/1000 (Hi-PoE) + 2 x 10/100/1000 + 2 x Gigabit SFP - monterbar på stativ - High PoE / PoE (225 W)
Specifications
Specifications
| Produktbeskrivelse | Hikvision Pro Series DS-3E0520HP-E - switch - 20 porte - ikke administreret - monterbar på stativ |
| Enhedstype | Switch - 20 porte - ikke administreret |
| Pakningstype | Monterbar på stativ |
| Undertype | Gigabit Ethernet |
| Porte | 12 x 10/100/1000 (PoE) + 4 x 10/100/1000 (Hi-PoE) + 2 x 10/100/1000 + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | High PoE / PoE |
| PoE-budget | 225 W |
| Præstation | Omkoblingskapacitet: 40 Gbps<br>Pakkevideresendelseshastighed: 29.76 Mpps |
| MAC adresse table størrelse | 8K indtastningshukommelse |
| Egenskaber | Komplet duplex ydeevne, auto-uplink (auto MDI/MDI-X), gem og send, blæserløs, portisolering, metalkabinet, 6 KV PoE strømstødsbeskyttelse, PoE-vagthundetilstand |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3bt |
| Effekt | AC 100-240 V (50/60 Hz) |
| Dimensioner (B x D x H) | 44 cm x 22.08 cm x 4.4 cm |
| Vægt | 2.79 kg |
| Producentgaranti | 3 year warranty |
| Compliant Standards | IC, UL 60950-1, FCC CFR47 Part 15 B, RCM, RoHS 2011/65/EU, EN 61000-3-3:2013, WEEE 2012/19/EU, EN 61000-3-2:2014, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 55024:2010+A1:2015, EN 55032:2015, REACH 2006/1907, AS/NZS CISPR 32:2015, EN 60950-1:2005+Am1:2 |
| Device Type | Switch - 20 ports - unmanaged |
| Enclosure Type | Rack-mountable |
| Features | Full duplex capability, auto-uplink (auto MDI/MDI-X), store and forward, fanless, port isolation, metal housing, 6KV PoE surge protection, PoE watchdog mode |
| MAC Address Table Size | 8K entries |
| Performance | Switching capacity: 40 Gbps | Packet forwarding rate: 29.76 Mpps |
| PoE Budget | 225 W |
| Ports | 12 x 10/100/1000 (PoE) + 4 x 10/100/1000 (Hi-PoE) + 2 x 10/100/1000 + 2 x Gigabit SFP |
| Status Indicators | Power, PoE, link/activity, PoE max |
| Subtype | Gigabit Ethernet |
| Interfaces | 12 x 1000Base-T RJ-45 PoE - 30 W | 4 x 1000Base-T RJ-45 HPoE - 90 W | 2 x 1000Base-T RJ-45 | 2 x Gigabit LAN SFP |
| Power Consumption Stand by | 25 Watt |
| Power Device | Internal power supply |
| Power Provided | 250 Watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Depth | 22.08 cm |
| Height | 4.4 cm |
| Weight | 2.79 kg |
| Width | 44 cm |
| Service & Support | Limited warranty - 3 years |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Max Operating Temperature | 55 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | -10 °C |
| Min Storage Temperature | -40 °C |
