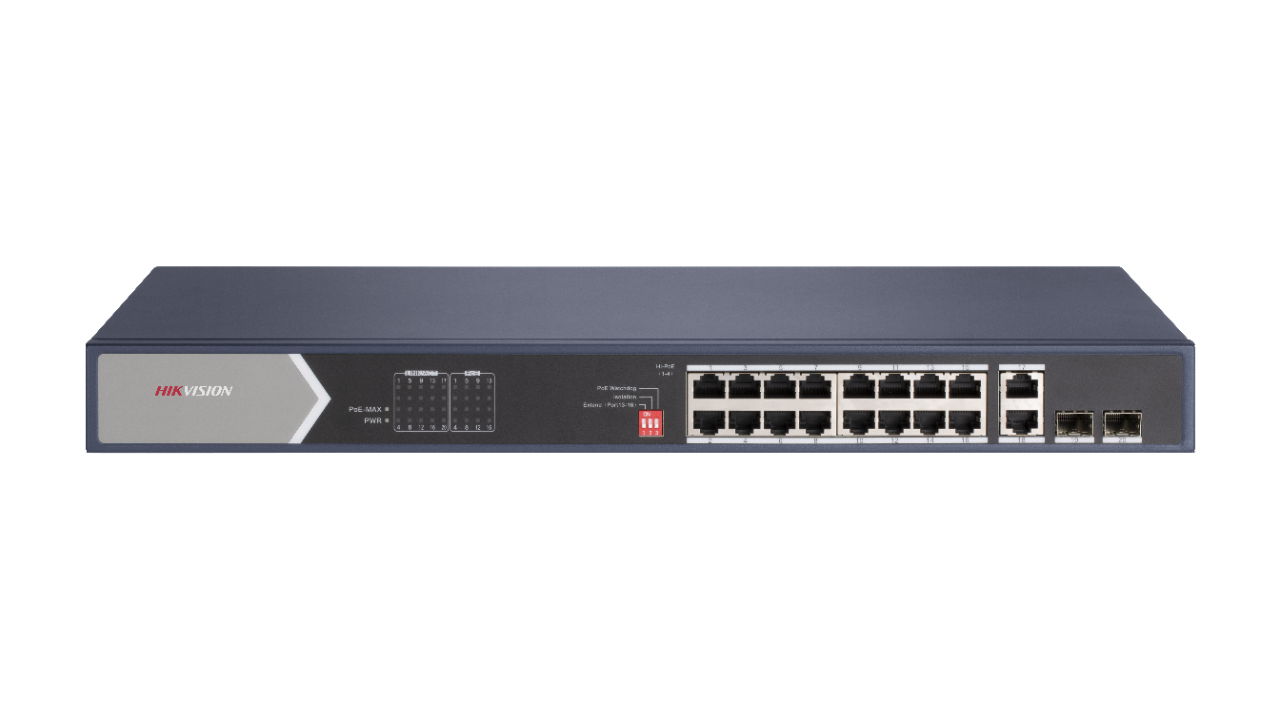

Hikvision | DS-3E0520HP-E | Unmanaged Hi-PoE Switch | 16x Port | 1Gbit/s | 225W PoE
16 Port Gigabit Unmanaged POE Switch
Availability: In stock
16 Port Gigabit Unmanaged POE Switch 12 × gigabit PoE ports, 4 × gigabit Hi-PoE ports, 2 × gigabit RJ45 ports, and 2 × gigabit fiber optical ports. IEEE 802.3at/af/bt standard for Hi-PoE ports (Max. 90 W PoE output). IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output). IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard. 6 KV surge protection for PoE ports. Up to 300 m long-range transmission. PoE watchdog to auto detect and restart the cameras that do not respond. Port isolation to improve network security. Gigabit network access design. Wire-speed forwarding. Store-and-forward switching. Solid high-strength metal shell.
Specifications
| Form factor | 19" Rack, 1U, Desktop |
| Switching capacity | 40 Gbit/s |
| Primary Port Speed | 1 Gbit/s |
| Primary Ports | 16 x |
| SFP Ports | 2 x |
| PoE | yes |
| PoE Ports | 16 x |
| PoE Effect/Port | 30 W Ports 1 to 4: 90 W |
| PoE Budget | 225 W |
| Width | 440 mm |
| Depth | 220.8 mm |
| Height | 44 mm |
| Weight | 2.79 kg |
| Power consumption | 250 W |
| Warranty | 3 years |
| Packaging size | 536 x 322 x 98 mm |
| Packaging weight | 3.48 kg |
