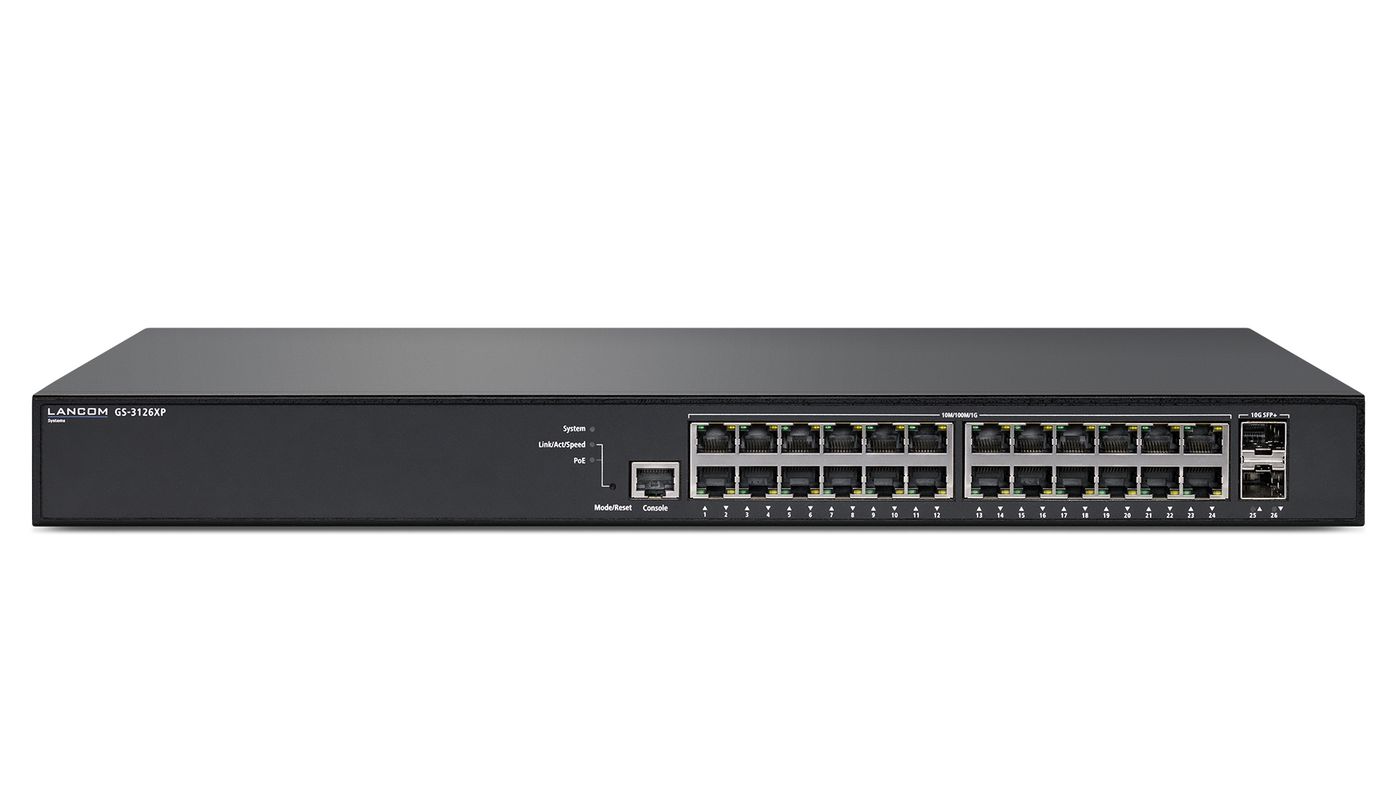

GS-3126XP
€1160,57
GS-3126XP
Availability: In stock
Secure payment · Fast delivery
EAN:4044144618482Brand:
GS-3126XP
Specifications
Specifications
| Certificates | Compliance certificates CE, Federal Communications Commission (FCC) |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Jumbo frames | 10240 |
| Jumbo frames support | Yes |
| MAC address table | 32000 entries |
| Number of static routes | 128 |
| Static route | Yes |
| Store-and-forward | Yes |
| Switching capacity | 88 Gbit/s |
| Throughput | 130 Mpps |
| Form factor | 1U |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Speed, System |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Rack mounting | Yes |
| Logistics data | Customs product code (TARIC) 85176200 |
| Customs product code (TARIC) | 85176200 |
| Configuring Location Settings (CLI) | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Web-based management | Yes |
| Multicast features | Multicast Listener Discovery (MLD) snooping Y Multicast support Yes |
| Multicast Listener Discovery (MLD) snooping Y | Multicast support Yes |
| Multicast Listener Discovery (MLD) snooping | Y |
| Multicast support | Yes |
| 10G support | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Number of VLANs | 4096 |
| Port mirroring | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Operational conditions | Heat dissipation 154 BTU/hOperating relative humidity (H-H) 10 - 90 %Operating temperature (T-T) 0 - 40 °C |
| Heat dissipation | 154 BTU/h |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Packaging content | Cables included AC, SerialQuick start guide Yes |
| Cables included AC, Serial | Quick start guide Yes |
| Cables included | AC, Serial |
| Quick start guide | Yes |
| Packaging data | Manual Yes Mounting brackets included Yes Rack mount kit Yes |
| Manual | Yes |
| Mounting brackets included | Yes |
| Rack mount kit | Yes |
| Performance | Firmware upgradeable Yes Noise level 40 dB |
| Firmware upgradeable Yes | Noise level 40 dB |
| Firmware upgradeable | Yes |
| Noise level | 40 dB |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 |
| Fiber optic connector | SFP+ |
| Fiber ports quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | AC-in jack |
| SFP+ module slots quantity | 2 |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 230 W |
| Power source | AC/PoE |
| Power supply included | Yes |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 185 W |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 185 W |
| Protocols | GARP VLAN Registration Protocol (GVRP) Yes IP Source Guard (IPSG) Yes |
| GARP VLAN Registration Protocol (GVRP) Yes | IP Source Guard (IPSG) Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IP Source Guard (IPSG) | Yes |
| Access Control List (ACL) | Yes |
| Authentication | Guest VLAN |
| Authentication type | IEEE 802.1x, RADIUS, TACACS+ |
| DHCP features | DHCP client, DHCP Option 66, DHCP Option 67, DHCP Option 82, DHCP relay, DHCP server, DHCP snooping |
| IGMP proxy | Yes |
| IGMP snooping | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| Security algorithms | SNMPv3 |
| SSH/SSL support | Yes |
| Brand Name | Lancom Systems |
| Homepage | https://www.lancom-systems.com/products/switches/fully-managed-access-switches/lancom-gs-3126xp |
| Warranty | 5 År |
| Kategorier | Hovedkategori Network Underkategori Wired Network Underkategori Network Switches Underkategori Network Switches |
| Hovedkategori | Network |
| Underkategori | Network Switches |
