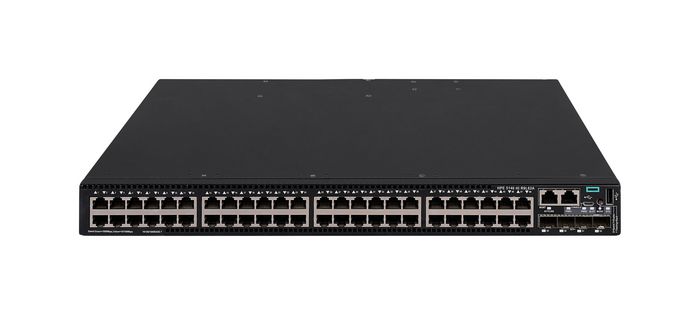

Hewlett Packard Enterprise Networking Comware Switch 48G 4SFP+ 1-slot 5140HI
The HPE FlexNetwork 5140 HI Switch Series delivers high availability and scalability at the access layer of medium and large enterprise campus networks. These switches offer high speed connectivity and flexibility with 10GbE uplinks and combo ports. Support for add-on modules increases capacity with additional features. It is a highly cost-effective switch with abundant features such as DRNI and IRF for improved resiliency, QoS features for better reliability, iNQA for real time network health performance and capacity visibility, hardware-based MACsec for end-to-end encrypted security, and dual redundant power supplies with Energy Efficient Ethernet for improved power saving. This switch series also includes Smart MC at no additional cost and, when combined with Intelligent Management Center (IMC), provides both embedded network management and enhanced network visibility.
Availability: In stock
The HPE FlexNetwork 5140 HI Switch Series delivers high availability and scalability at the access layer of medium and large enterprise campus networks. These switches offer high speed connectivity and flexibility with 10GbE uplinks and combo ports. Support for add-on modules increases capacity with additional features. It is a highly cost-effective switch with abundant features such as DRNI and IRF for improved resiliency, QoS features for better reliability, iNQA for real time network health performance and capacity visibility, hardware-based MACsec for end-to-end encrypted security, and dual redundant power supplies with Energy Efficient Ethernet for improved power saving. This switch series also includes Smart MC at no additional cost and, when combined with Intelligent Management Center (IMC), provides both embedded network management and enhanced network visibility.
Specifications
| MAC address table | 32000 entries |
| Packet buffer memory | 4 MB |
| Switching capacity | 336 Gbit/s |
| Throughput | 180 Mpps |
| Form factor | 1U |
| Rack mounting | Yes |
| Stackable | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| 10G support | Yes |
| Networking standards | IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
| Dimensions (W x D x H) (imperial) | 1.72 x 17.32 x 14.17 " |
| I/O ports | 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T), 4 1/10G SFP+ ports, 1 port expansion module slot. |
| Latency | 5 microseconds (64-byte packets) |
| Memory and processor | 2 GB SDRAM; Packet buffer size: 4 MB, 512 MB flash |
| Performance management | HPE IMC; Smart MC, command-line interface; web browser; SNMP manager |
| Weight (imperial) | 10,6 lbs |
| Flash memory | 512 MB |
| Internal memory | 2048 MB |
| Physical stacking (units) | 9 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 4 |
| AC input voltage | 100 - 240 V |
| DC input voltage | 48 - 60 V |
| Power consumption (typical) | 96 W |
| Power consumption note | 96 W (dual DC) |
| Power source | AC |
| Power supply included | Yes |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 720 W |
| Brand Name | Hewlett Packard Enterprise |
| Warranty | 1 year |
