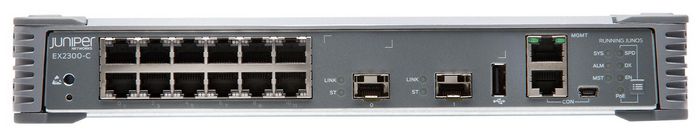

Juniper 64 Gbps, 47 Mpps, 1.25 GHz, 2 GB, 12x 10/100/1000BASE-T, 2x 1/10GbE SFP/SFP+, 279 x 44 x 239 mm
EX2300 and EX2300-C Ethernet Switches deliver a compact, high-density, cost-effective solution for small network environments where space and power are at a premium. Featuring a small, 1U footprint, the EX2300 and EX2300-C are ideal for access-layer deployments in micro branches, retail and workgroup environments, and converged network access in larger networks. The EX2300 offers 24 10/100/1000BASE-T ports in a single platform, while the EX2300-C offers 12 10/100/1000BASE-T ports. Both models are available with or without IEEE 802.3af Power over Ethernet (PoE) or 802.3at PoE+ for powering attached network devices. Optional front panel 10GbE uplink ports support connections to higher-layer devices. Both models support Juniper’s unique Virtual Chassis technology, enabling up to four of the switches to be interconnected and managed as a single device. Both models can also act as satellite devices in a Juniper Junos Fusion Enterprise deployment, which combines large numbers of access swi
Availability: In stock
EX2300 and EX2300-C Ethernet Switches deliver a compact, high-density, cost-effective solution for small network environments where space and power are at a premium. Featuring a small, 1U footprint, the EX2300 and EX2300-C are ideal for access-layer deployments in micro branches, retail and workgroup environments, and converged network access in larger networks. The EX2300 offers 24 10/100/1000BASE-T ports in a single platform, while the EX2300-C offers 12 10/100/1000BASE-T ports. Both models are available with or without IEEE 802.3af Power over Ethernet (PoE) or 802.3at PoE+ for powering attached network devices. Optional front panel 10GbE uplink ports support connections to higher-layer devices. Both models support Juniper’s unique Virtual Chassis technology, enabling up to four of the switches to be interconnected and managed as a single device. Both models can also act as satellite devices in a Juniper Junos Fusion Enterprise deployment, which combines large numbers of access switches into a logical management platform.
Specifications
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| MAC address table | 16000 entries |
| Store-and-forward | Yes |
| Switching capacity | 64 Gbit/s |
| Throughput | 47 Mpps |
| Electromagnetic compatibility | FCC 47CFR 15 A, EN 55022 A, ICES-003 A, VCCI A, AS/NZS CISPR 22 A, EN 55024, EN 300386, CE |
| Form factor | 1U |
| Product colour | Black |
| Rack mounting | Yes |
| Safety | UL-UL60950-1, C-UL CAN/CSA 22.2 No.60950-1, TUV/GS EN 60950-1, CB-IEC60950-1, EN 60825-1 |
| Stackable | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Web-based management | Yes |
| Multicast support | Yes |
| 10G support | Yes |
| Auto MDI/MDI-X | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| IP routing | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3z |
| Number of VLANs | 4093 |
| Port mirroring | Yes |
| Spanning tree protocol | Yes |
| Virtual LAN features | Port-based VLAN, Tagged VLAN |
| VLAN support | Yes |
| Non-operating altitude | 1524 - 4877 m |
| Operating altitude | 0 - 1524 m |
| Operating relative humidity (H-H) | 10 - 85 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Fiber ethernet cabling technology | 1000BASE-X |
| Built-in processor | Yes |
| Flash memory | 2000 MB |
| Internal memory | 2000 MB |
| Memory type | DRAM |
| Noise level | 0 dB |
| Processor frequency | 1250 MHz |
| Virtual stacking (units) | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 12 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | USB |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 2 |
| Power consumption (max) | 20 W |
| Power supply included | Yes |
| Power over Ethernet (PoE) | No |
| Access Control List (ACL) | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| DHCP features | DHCP client, DHCP server |
| IGMP snooping | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS, SNMP, SSH-2 |
| Brand Name | Juniper |
| Warranty | 1 year |
