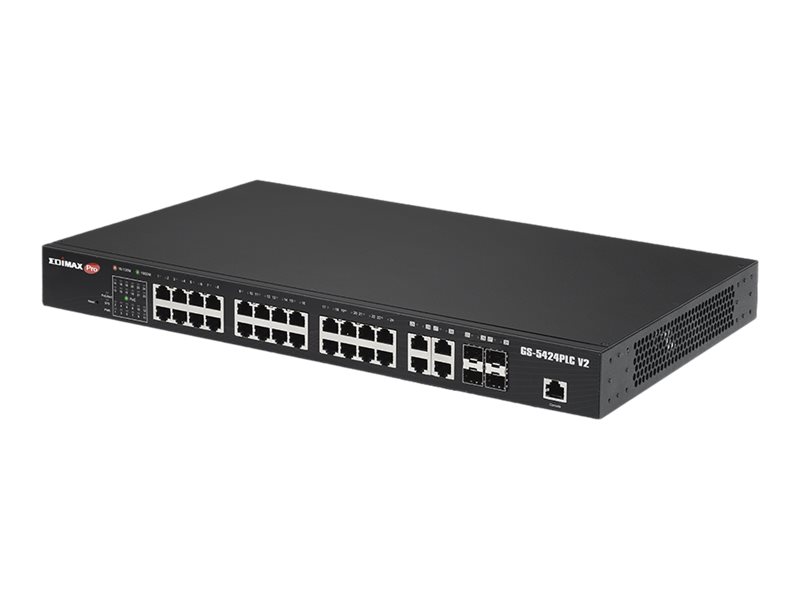

Edimax Pro GS-5424PLC V2 Switch 24-porte Gigabit PoE+
€325,75
Edimax Pro GS-5424PLC V2 - Switch - smart - 24 x 10/100/1000 (PoE+) + 4 x combo SFP - monterbar på stativ - PoE+ (400 W)
Availability: In stock
Secure payment · Fast delivery
EAN:4717964704276Brand:
Edimax Pro GS-5424PLC V2 - Switch - smart - 24 x 10/100/1000 (PoE+) + 4 x combo SFP - monterbar på stativ - PoE+ (400 W)
Specifications
Specifications
| Produktbeskrivelse | Edimax Pro GS-5424PLC V2 - switch - 24 porte - smart - monterbar på stativ |
| Enhedstype | Switch - 24 porte - smart |
| Pakningstype | Monterbar på stativ 1U |
| Undertype | Gigabit Ethernet |
| Porte | 24 x 10/100/1000 (PoE+) + 4 x combo SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE-budget | 400 W |
| Præstation | Omkoblingskapacitet: 56 Gbps |
| Kapacitet | VLAN ID'er: 4096<br>Virtuelle grænseflader (VLANs): 200 |
| MAC adresse table størrelse | 8K indtastningshukommelse |
| Jumborammesupport | 9KB |
| Protokol til fjernadministration | SNMP 3, HTTP |
| Egenskaber | Datatransport, komplet duplex ydeevne, VLAN-understøttet, IGMP snooping, Syslog understøttet, DoS attack beskyttelse, portspejling, WRR kø, gem og send, IPv6 understøttet, firmware kan opgraderes, STP support, RSTP support, DHCP snooping, ACL support, QoS, RADIUS support, DAI, nulstillingsknap, IPv4 support, dobbelte blæsere med hurtig udskiftning, LACP, dobbelt firmware-billeder, SPQ, CoS, GVRP, ONVIF support, 4,1 MB pakkebuffer, Protokol-baseret VLANs support, Storm Control, IP-kildebekyttelse, AAA, Voice VLAN, beskyttede porte, EEE, DSCP based CoS, MAC based VLAN, portbaseret VLAN, port-trunking |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3at, IEEE 802.3az |
| Effekt | AC 120/230 V (50/60 Hz) |
| Dimensioner (B x D x H) | 44.1 cm x 27 cm x 4.5 cm |
| Vægt | 4.45 kg |
| Authentication Method | RADIUS |
| Capacity | VLAN IDs: 4096 | Virtual interfaces (VLANs): 200 |
| Compliant Standards | FCC Class A certified |
| Device Type | Switch - 24 ports - smart |
| Enclosure Type | Rack-mountable 1U |
| Features | Flow control, full duplex capability, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, IPv6 support, firmware upgradable, Spanning Tree Protocol (STP) support, |
| Jumbo Frame Support | 9KB |
| MAC Address Table Size | 8K entries |
| Performance | Switching capacity: 56 Gbps |
| PoE Budget | 400 W |
| Ports | 24 x 10/100/1000 (PoE+) + 4 x combo SFP |
| Remote Management Protocol | SNMP 3, HTTP |
| Status Indicators | Power, PoE, link/activity |
| Subtype | Gigabit Ethernet |
| Interfaces | 24 x 1000Base-T RJ-45 PoE+ - 30 W | 4 x 1000Base-T RJ-45 | 4 x 1000Base-X SFP |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Depth | 27 cm |
| Height | 4.5 cm |
| Weight | 4.45 kg |
| Width | 44.1 cm |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Humidity Range Storage | 10 - 90% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
