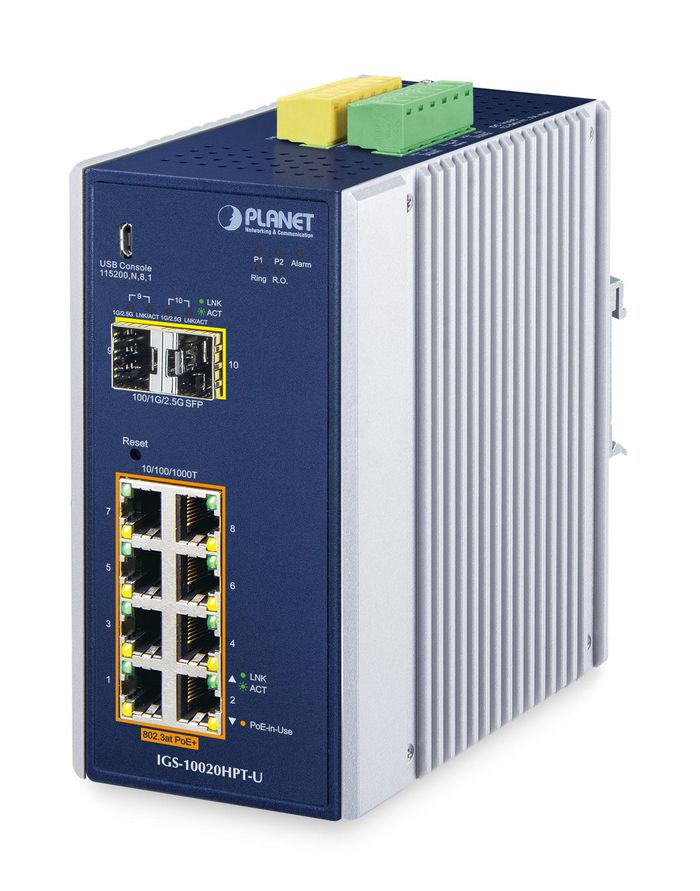

Planet DIN-Rail L2+/L3 Manageable Industrial Gigabit POE Switch
IP30 Industrial L2+/L4 8-Port 1000T 802.3at PoE + 2-Port 1G/2.5G SFP Full Managed Switch (-40 to 75 C, 12V~54V DC power boost, DIDO, Micro-USB console port, ERPS Ring, 1588, Modbus TCP, ONVIF, Cybersecurity features, IPv4/IPv6 Static Routing, supports CloudViewer app and MQTT, supports 100FX, 1000X and 2.5G SFP) e-mark certified
Availability: In stock
IP30 Industrial L2+/L4 8-Port 1000T 802.3at PoE + 2-Port 1G/2.5G SFP Full Managed Switch (-40 to 75 C, 12V~54V DC power boost, DIDO, Micro-USB console port, ERPS Ring, 1588, Modbus TCP, ONVIF, Cybersecurity features, IPv4/IPv6 Static Routing, supports CloudViewer app and MQTT, supports 100FX, 1000X and 2.5G SFP) e-mark certified
Specifications
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| MAC address table | 8000 entries |
| Packet buffer memory | 4 MB |
| Store-and-forward | Yes |
| Switching capacity | 26 Gbit/s |
| Throughput | 19.34 Mpps |
| Certification | e-Mark, FCC Part 15 Class A, CE |
| DIN rail mounting | Yes |
| Housing material | Aluminium |
| International Protection (IP) code | IP30 |
| LED indicators | Yes |
| Product colour | Aluminium, Blue |
| Reset button | Yes |
| Wall mountable | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2+ |
| Switch type | Managed |
| Traffic classification | Yes |
| Web-based management | Yes |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 2 |
| Installed SFP+ modules quantity | 0 |
| Power consumption (typical) | 250 W |
| Power over Ethernet (PoE) | Yes |
| Brand Name | Planet |
