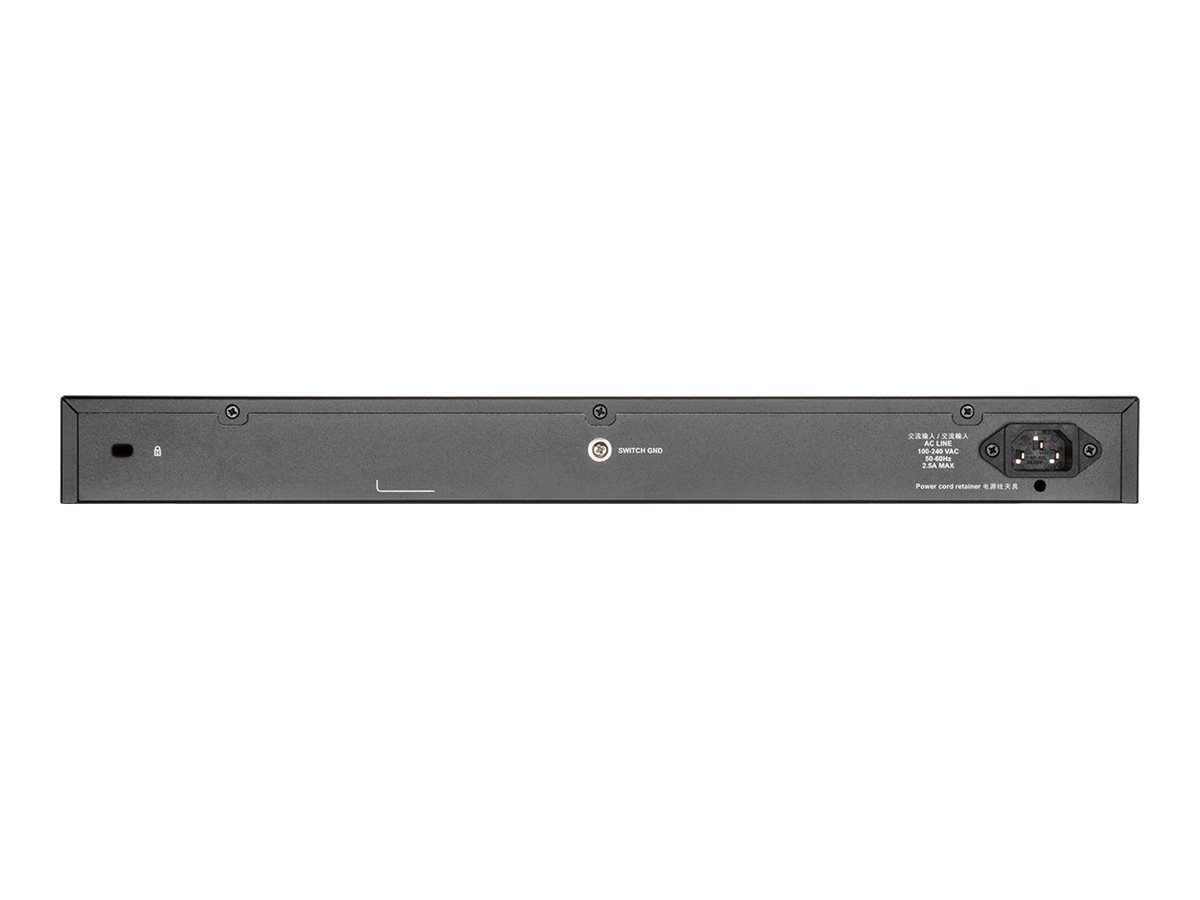

D-Link DXS 1210-28S Switch 28-porte 10 Gigabit
€1917,99
D-Link DXS 1210-28S - Switch - smart - 24 x 10GBase-X + 4 x 10Gb Ethernet - monterbar på stativ
Availability: In stock
Secure payment · Fast delivery
EAN:0790069456817Brand:
D-Link DXS 1210-28S - Switch - smart - 24 x 10GBase-X + 4 x 10Gb Ethernet - monterbar på stativ
Specifications
Specifications
| Produktbeskrivelse | D-Link DXS 1210-28S - switch - 28 porte - smart - monterbar på stativ |
| Enhedstype | Switch - 28 porte - smart |
| Pakningstype | Monterbar på stativ |
| Undertype | 10 Gigabit Ethernet |
| Porte | 24 x 10GBase-X + 4 x 10Gb Ethernet |
| Præstation | Omkoblingskapacitet: 560 Gbps<br>Fremsendelsespræstation: 416,64 Mpps |
| Kapacitet | VLAN ID'er: 4094<br>IPv4 ruter (statisk): 128<br>IPv6 ruter (statisk): 64<br>Statiske ARP-indtastninger: 384 |
| MAC adresse table størrelse | 32.000 optegnelser |
| Jumborammesupport | 12.288 byte |
| Routingprotokol | Statisk IPv4 routing, statisk IPv6 routing |
| Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI |
| Egenskaber | Datatransport, understøttet af BOOTP, VLAN-understøttet, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack beskyttelse, portspejling, WRR kø, gem og send, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP-understøttet, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, DHCP server, MDL snooping, DAI, Safeguard Engine, Cable Diagnostics Function, båndbreddekontrol, D-Link Green Technology, DWRR, LLDP support, DHCP videresendelse, Port Security, IP-MAC binding, portbaseret adgangsstyring, DHCP klient, GVRP, statisk routing, CoS, TFTP-klient, 4 MB pakkebuffer, ToS, ERPS, systemlog, IP-kildebekyttelse, DRR, værtsbaseret tilgangskontrol, Smart Fans |
| Overensstemmelsesstandarder | IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3p, IEEE 802.3an, IEEE 802.3az |
| Effekt | AC 120/230 V (50/60 Hz) |
| Dimensioner (B x D x H) | 44.1 cm x 20.95 cm x 4.4 cm |
| Vægt | 3.27 kg |
| Authentication Method | RADIUS, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Capacity | VLAN IDs: 4094 | IPv4 routes (static): 128 | IPv6 routes (static): 64 | Static ARP entries: 384 |
| Compliant Standards | FCC Class A certified, UL, BSMI, CB, IC, VCCI Class A |
| Device Type | Switch - 28 ports - smart |
| Enclosure Type | Rack-mountable |
| Encryption Algorithm | TLS 1.0, PEAP, TTLS, TLS 1.1, TLS 1.2 |
| Features | Flow control, BOOTP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Cont |
| Flash Memory | 64 MB |
| Jumbo Frame Support | 12288 bytes |
| MAC Address Table Size | 32000 entries |
| Performance | Switching capacity: 560 Gbps | Forwarding performance: 416,64 Mpps |
| Ports | 24 x 10GBase-X + 4 x 10Gb Ethernet |
| Processor | X ARM Cortex-A9 + Cortex-R5 |
| RAM | 256 MB |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI |
| Routing Protocol | Static IPv4 routing, static IPv6 routing |
| Status Indicators | Power, fan, link/activity/speed |
| Subtype | 10 Gigabit Ethernet |
| Interfaces | 24 x 10GBase-X SFP+ | 4 x 10GBase-T RJ-45 | 1 x console RJ-45 |
| Power Consumption Operational | 87.7 Watt |
| Power Consumption Stand by | 27.6 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Cables Included | 1 x console cable |
| Included Accessories | 4 rubber feet, 2 x 19" mounting brackets |
| MTBF | 574 720 hours |
| Rack Mounting Kit | Included |
| Depth | 20.95 cm |
| Height | 4.4 cm |
| Weight | 3.27 kg |
| Width | 44.1 cm |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Humidity Range Storage | 0 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | -5 °C |
| Min Storage Temperature | -20 °C |
