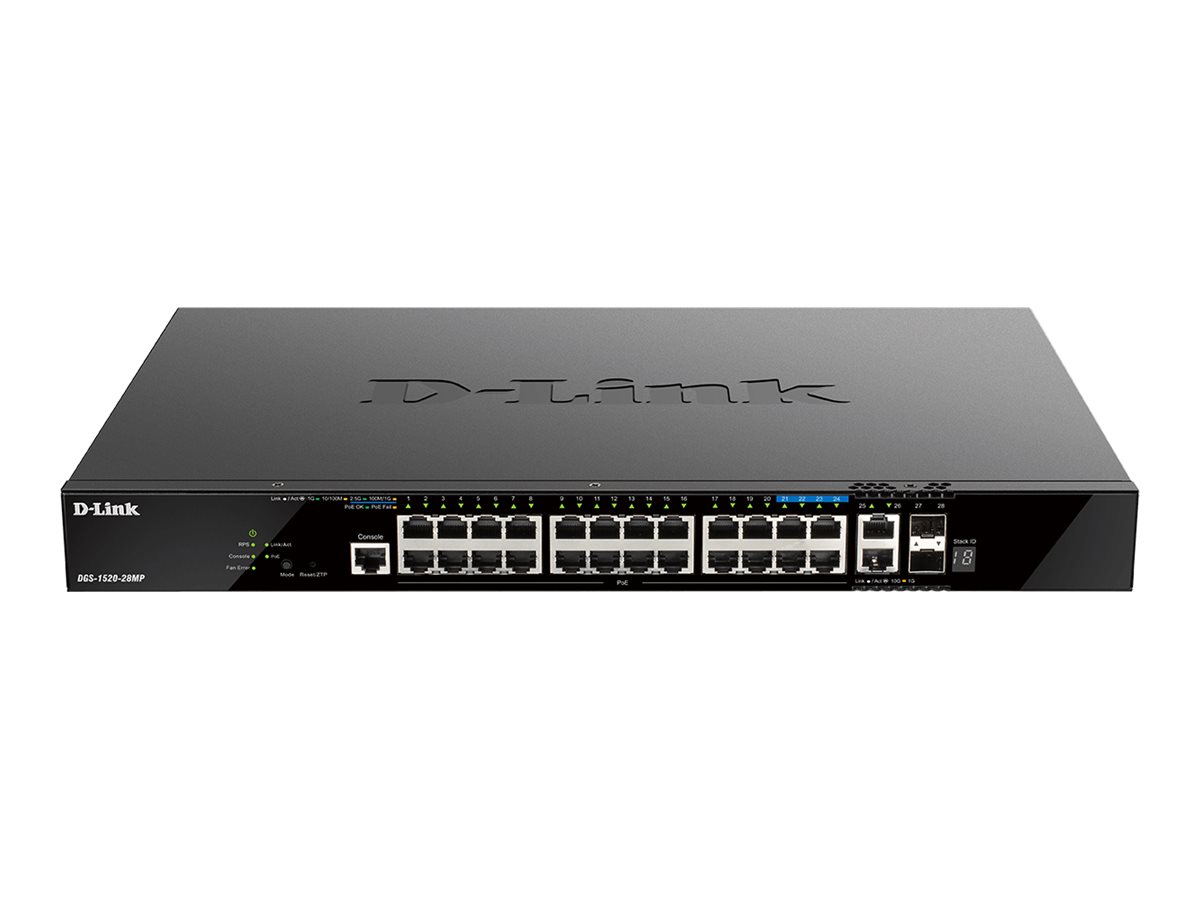

D-Link DGS 1520-28MP Switch 28-porte Gigabit PoE+
€919,54
D-Link DGS 1520-28MP - Switch - L3 - smart - 20 x 10/100/1000 (PoE+) + 4 x 2.5G (PoE+) + 2 x 10 Gigabit Ethernet + 2 x 10 Gigabit SFP+ - monterbar på stativ - PoE+ (370 W)
Availability: In stock
Secure payment · Fast delivery
EAN:0790069472008Brand:
D-Link DGS 1520-28MP - Switch - L3 - smart - 20 x 10/100/1000 (PoE+) + 4 x 2.5G (PoE+) + 2 x 10 Gigabit Ethernet + 2 x 10 Gigabit SFP+ - monterbar på stativ - PoE+ (370 W)
Specifications
Specifications
| Produktbeskrivelse | D-Link DGS 1520-28MP - switch - 28 porte - smart - monterbar på stativ |
| Enhedstype | Switch - 28 porte - L3 - smart - kan stables |
| Pakningstype | Monterbar på stativ 1U |
| Undertype | Gigabit Ethernet |
| Porte | 20 x 10/100/1000 (PoE+) + 4 x 2.5G (PoE+) + 2 x 10 Gigabit Ethernet + 2 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| PoE-budget | 370 W |
| Præstation | Omkoblingskapacitet: 140 Gbps<br>Fremsendelsespræstation: 104,16 Mpps<br>Stablende båndbredde: 80 Gbps |
| Kapacitet | IGMP-grupper: 512<br>MLD-grupper: 256<br>VLAN-grupper: 4000<br>Statiske ARP-indtastninger: 256 |
| MAC adresse table størrelse | 16.384 indtastninger |
| Jumborammesupport | 12.288 byte |
| Routingprotokol | OSPF, RIP-1, RIP-2, IGMPv2, IGMP, DVMRP, PIM-SM, statisk IP routing, PIM-DM, IGMPv3, PIM-SSM, ECMP, police-baseret routing (PBR), RIPng, MLDv2, MLD |
| Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c |
| Egenskaber | IGMP snooping, portspejling, gem og send, WRED, STP support, VRRP support, MSTP support, QoS, RSPAN, CoS, GVRP, DoS, ERPS, BPDU, Link Aggregation, OSPF, Root Guard, Loop Guard, ERPS v2, strømningsafspejling, VLAN-spejling, WDRR, Voice VLAN, Private VLAN, ZTP, EEE, BPDU Filter, WRR, tilbageløkke-detektion, NTP 3, NTP 4, D-Link DDP, Rapid Reconfiguration of Spanning Tree (RSTP), VLAN trunking, DNA support, MDI, MDI-X |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1v, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1Qbb |
| Effekt | (50/60 Hz) |
| Dimensioner (B x D x H) | 44.1 cm x 30.85 cm x 4.4 cm |
| Vægt | 4.29 kg |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Capacity | IGMP groups: 512 | MLD groups: 256 | VLAN groups: 4000 | Static ARP entries: 256 |
| Compliant Standards | FCC Class A certified, IC Class A, BSMI Class A, VCCI Class A, RCM Class A |
| Device Type | Switch - 28 ports - L3 - smart - stackable |
| Enclosure Type | Rack-mountable 1U |
| Encryption Algorithm | SSL, TLS 1.0, TLS 1.1, TLS 1.2 |
| Features | IGMP snooping, port mirroring, store and forward, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS) |
| Jumbo Frame Support | 12288 bytes |
| MAC Address Table Size | 16384 entries |
| Max Units In A Stack | 8 |
| Performance | Switching capacity: 140 Gbps | Forwarding performance: 104.16 Mpps | Stacking bandwidth: 80 Gbps |
| PoE Budget | 370 W |
| Ports | 20 x 10/100/1000 (PoE+) + 4 x 2.5G (PoE+) + 2 x 10 Gigabit Ethernet + 2 x 10 Gigabit SFP+ |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c |
| Routing Protocol | OSPF, RIP-1, RIP-2, IGMPv2, IGMP, DVMRP, PIM-SM, static IP routing, PIM-DM, IGMPv3, PIM-SSM, ECMP, policy-based routing (PBR), RIPng, MLDv2, MLD |
| Status Indicators | Power, PoE, link/activity, fan, stack |
| Subtype | Gigabit Ethernet |
| Interfaces | 20 x 1000Base-T RJ-45 PoE+ | 4 x 2.5GBase-T RJ-45 PoE+ | 2 x 10GBase-T RJ-45 | 2 x 10GBase-X SFP+ |
| Power Consumption Operational | 453.3 Watt |
| Power Device | Internal power supply |
| Voltage Required | (50/60 Hz) |
| MTBF | 333946 hours |
| Depth | 30.85 cm |
| Height | 4.4 cm |
| Weight | 4.29 kg |
| Width | 44.1 cm |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | -5 °C |
| Min Storage Temperature | -40 °C |
