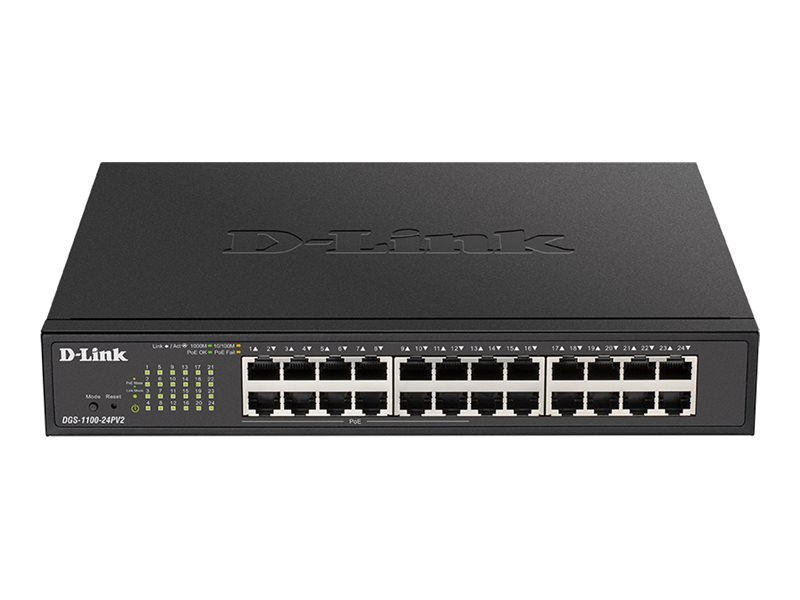

D-Link DGS 1100-24PV2 Switch 24-porte Gigabit PoE+
€198,29
D-Link DGS 1100-24PV2 - Switch - smart - 24 x 10/100/1000 (12 PoE+) - desktop, monterbar på stativ - PoE+ (100 W)
Availability: In stock
Secure payment · Fast delivery
EAN:0790069467837Brand:
D-Link DGS 1100-24PV2 - Switch - smart - 24 x 10/100/1000 (12 PoE+) - desktop, monterbar på stativ - PoE+ (100 W)
Specifications
Specifications
| Produktbeskrivelse | D-Link DGS 1100-24PV2 - switch - 24 porte - smart - monterbar på stativ |
| Enhedstype | Switch - 24 porte - smart |
| Pakningstype | Monterbar på stativ 1U |
| Undertype | Gigabit Ethernet |
| Porte | 24 x 10/100/1000 (12 PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE-budget | 100 W |
| Præstation | Omkoblingskapacitet: 48 Gbps<br>Videresendelseshastighed: 35,71 Mpps |
| Kapacitet | Pakkebufferstørrelse: 4,1 Mbit<br>VLAN-grupper: 128<br>VLAN ID'er: 4094<br>IGMP-grupper: 128<br>QoS-prioritetskøer per port: 8 |
| MAC adresse table størrelse | 8K indtastningshukommelse |
| Jumborammesupport | 10240 byte |
| Routingprotokol | IGMPv2, IGMP, IGMPv3, RSTP, STP |
| Protokol til fjernadministration | SNMP 2, HTTP, ICMP |
| Egenskaber | Datatransport, auto-negotiation, understøttet af BOOTP, understøttet af ARP, VLAN-understøttet, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack beskyttelse, portspejling, Broadcast Storm Control, fuld dupleksmodus, Multicast Storm Control, Unicast Storm Control, QoS, Safeguard Engine, Cable Diagnostics Function, båndbreddekontrol, D-Link Green Technology, blæserløs, DHCP klient, Voice VLAN, VLAN-administration, Private MIB, EEE, WRR, HOL Blocking Prevention, tilbageløkke-detektion, portbaseret VLAN, Unknown Storm Control, Asymmetric VLAN, MIB support |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Effekt | AC 100-240 V (50/60 Hz) |
| Dimensioner (B x D x H) | 28 cm x 23 cm x 4.4 cm |
| Vægt | 2 kg |
| Lokalisering | Europa |
| Producentgaranti | Begrænset livtidsgaranti |
| Capacity | Packet buffer size: 4.1 Mbit | VLAN groups: 128 | VLAN IDs: 4094 | IGMP groups: 128 | QoS priority queues per port: 8 |
| Compliant Standards | FCC Class A certified, C-Tick, BSMI, cUL, CB, CCC, LVD, VCCI Class A, RoHS 10 |
| Device Type | Switch - 24 ports - smart |
| Enclosure Type | Desktop, rack-mountable 1U |
| Encryption Algorithm | SSL |
| Features | Flow control, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, Q |
| Flash Memory | 16 MB |
| Jumbo Frame Support | 10240 bytes |
| MAC Address Table Size | 8K entries |
| Performance | Switching capacity: 48 Gbps | Forwarding rate: 35.71 Mpps |
| PoE Budget | 100 W |
| Ports | 24 x 10/100/1000 (12 PoE+) |
| Remote Management Protocol | SNMP 2, HTTP, ICMP |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, RSTP, STP |
| Subtype | Gigabit Ethernet |
| Interfaces | 24 x 1000Base-T RJ-45 12 ports (PoE+) - 30 W |
| Power Consumption Stand by | 8.8 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Included Accessories | 11" rack mounting kit |
| Localization | Europe |
| MTBF | 255,003 hours |
| Rack Mounting Kit | Included |
| Software Included | D-Link Network Assistant |
| Depth | 23 cm |
| Height | 4.4 cm |
| Weight | 2 kg |
| Width | 28 cm |
| Service & Support | Limited warranty - lifetime |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Humidity Range Storage | 0 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | -5 °C |
| Min Storage Temperature | -40 °C |
