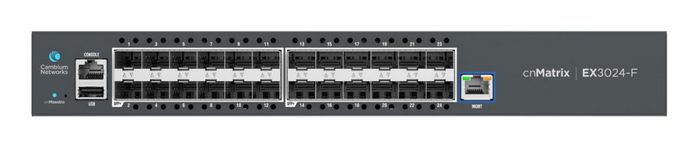

Cambium Networks cnMatrix EX3024F, Intelligent Ethernet Fiber Aggregation Switch, 24 - 10 Gbps SFP+ ports, dual internal AC power supplies - no power cord
Cambium Networks’ next-generation cnMatrix™ switching platform offers a cloud-managed, high-performance, feature-rich enterprise-grade ethernet switching solution The cnMatrix series of fully managed switches delivers full Layer 2 and Layer 3 capabilities with enhanced security. The EX3024F is a fiber aggregation switch that has all 10 Gbps SFP+ fiber ports. Also, this switch has dual internal power supplies for additional robustness and redundancy. These switches come with a five-year limited lifetime warranty.
Availability: In stock
Cambium Networks’ next-generation cnMatrix™ switching platform offers a cloud-managed, high-performance, feature-rich enterprise-grade ethernet switching solution The cnMatrix series of fully managed switches delivers full Layer 2 and Layer 3 capabilities with enhanced security. The EX3024F is a fiber aggregation switch that has all 10 Gbps SFP+ fiber ports. Also, this switch has dual internal power supplies for additional robustness and redundancy. These switches come with a five-year limited lifetime warranty.
Specifications
| Forwarding rate | 120 Mpps |
| MAC address table | 32000 entries |
| Number of static routes | 64 |
| Packet buffer memory | 3 MB |
| Throughput | 480 Mpps |
| Form factor | 1U |
| Number of fans | 2 fan(s) |
| Rack mounting | Yes |
| Reset button | Yes |
| Stackable | Yes |
| ARP inspection | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Multicast support | Yes |
| 10G support | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-T, 10BASE-T |
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Policy-based routing | Yes |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Built-in processor | Yes |
| Flash memory | 256 MB |
| Mean time between failures (MTBF) | 928678 h |
| Processor frequency | 1400 MHz |
| Basic switching RJ-45 Ethernet ports quantity | 0 |
| Basic switching RJ-45 Ethernet ports type | No |
| SFP+ module slots quantity | 24 |
| USB 2.0 ports quantity | 1 |
| Number of power supply units | 2 |
| Power consumption (max) | 75 W |
| Power source | AC |
| Power supply included | Yes |
| Power over Ethernet (PoE) | No |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP snooping |
| IGMP entries | 512 |
| IGMP snooping | Yes |
| Brand Name | Cambium Networks |
| Warranty | 5 years |
