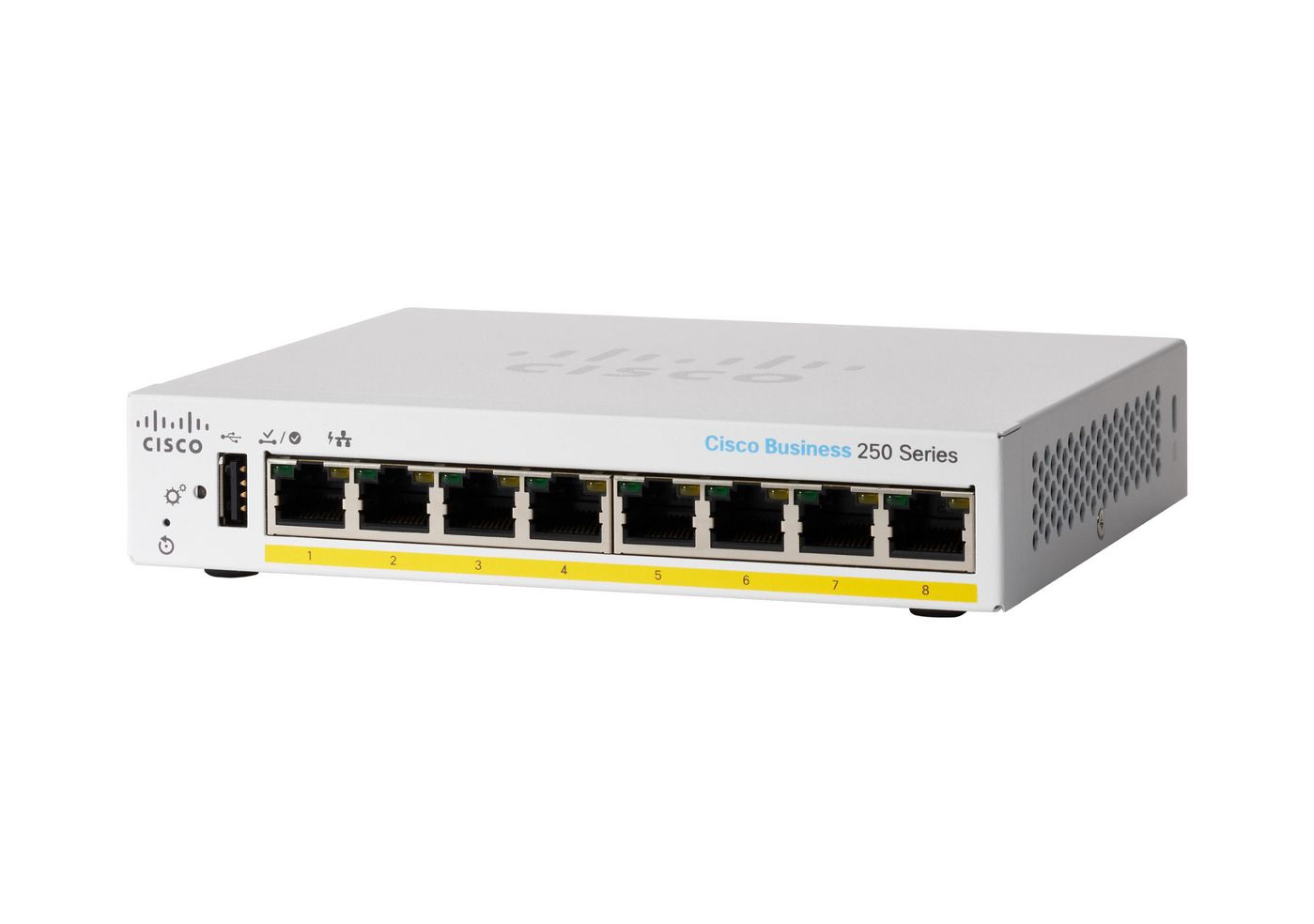

Cbs250-8Pp-D Managed L3
€114,09
Cbs250-8Pp-D Managed L3
Availability: In stock
Secure payment · Fast delivery
EAN:W129036153Brand:
Cbs250-8Pp-D Managed L3
Specifications
Specifications
| Certificates | Certification UL (UL 60950), CSA (CSA 22.2), FCC 15 (CFR 47) A Compliance certificates CE, WEEE |
| Certification UL (UL 60950), CSA (CSA 22.2), FCC 15 (CFR 47) A | Compliance certificates CE, WEEE |
| Certification | UL (UL 60950), CSA (CSA 22.2), FCC 15 (CFR 47) A |
| Compliance certificates | CE, WEEE |
| Forwarding rate | 11,9 Mpps |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| MAC address table | 8000 entries |
| Number of IP interfaces | 16 |
| Number of queues | 8 |
| Number of static routes | 32 |
| Packet buffer memory | 1,5 MB |
| Static route | Yes |
| Switching capacity | 16 Gbit/s |
| Design | LED indicators Yes Market segment Business Product colour Grey Rack mounting No Reset button Yes Stackable No |
| LED indicators | Yes |
| Market segment | Business |
| Product colour | Grey |
| Rack mounting | No |
| Reset button | Yes |
| Stackable | No |
| Logistics data | Products per master (outer) case 1 pc(s)Quantity per pack 1 pc(s) |
| Products per master (outer) case 1 pc(s) | Quantity per pack 1 pc(s) |
| Products per master (outer) case | 1 pc(s) |
| Quantity per pack | 1 pc(s) |
| Configuring Location Settings (CLI) | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| System event log | Yes |
| Web-based management | Yes |
| Multicast features | Multicast Listener Discovery (MLD) snooping MLD v1/2 Multicast support Yes |
| Multicast Listener Discovery (MLD) snooping MLD v1/2 | Multicast support Yes |
| Multicast Listener Discovery (MLD) snooping | MLD v1/2 |
| Multicast support | Yes |
| 10G support | No |
| Active link detection | Yes |
| Broadcast storm control | Yes |
| Cable length detection | Yes |
| Cable types supported | Cat5e |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Ethernet LAN data rates | 10, 100, 1000 |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| IP routing | Yes |
| Link aggregation | Yes |
| Port mirroring | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Virtual LAN features | Port-based VLAN, Tagged VLAN, Voice VLAN |
| VLAN support | Yes |
| Heat dissipation | 209,51 BTU/h |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 10 - 90 % |
| Storage temperature (T-T) | -25 - 70 °C |
| Packaging content | Cables included AC Quick start guide Yes Rack mount kit Yes |
| Cables included | AC |
| Quick start guide | Yes |
| Rack mount kit | Yes |
| Built-in processor | Yes |
| Fanless | Yes |
| Firmware upgradeable | Yes |
| Flash memory | 256 MB |
| Internal memory | 512 MB |
| Mean time between failures (MTBF) | 1659542 h |
| Memory type | DRAM |
| Processor frequency | 800 MHz |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| USB 2.0 ports quantity | 1 |
| Power | AC input voltage 100 - 240 VNumber of power supply units 1 Power plug type Type C Power supply included Yes |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Power plug type | Type C |
| Power supply included | Yes |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 45 W |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL) |
| Management protocols | SNMP v1/2c/3, Telnet, TFTP, HTTP/HTTPS, SNTP |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) rules | 512 |
| Authentication | Guest VLAN, Port-based authentication |
| Authentication type | IEEE 802.1x, RADIUS |
| DHCP features | DHCP client, DHCP relay |
| IGMP snooping | Yes |
| Loop protection | Yes |
| Queue scheduling algorithms | SP, Weighted Round Robin (WRR) |
| Security algorithms | SSH, SSH-2, SSL/TLS |
| Sustainability | Sustainability compliance Yes |
| Sustainability compliance | Yes |
| Technical details | Products per shipping (inner) case 1 pc(s) |
| Products per shipping (inner) case | 1 pc(s) |
| Vendor information | Brand Name Cisco Warranty 1 År |
| Brand Name Cisco | Warranty 1 År |
| Brand Name | Cisco |
| Warranty | 1 År |
| Kategorier | Hovedkategori Network Underkategori Wired Network Underkategori Network Switches Underkategori Network Switches |
| Hovedkategori | Network |
| Underkategori | Network Switches |
