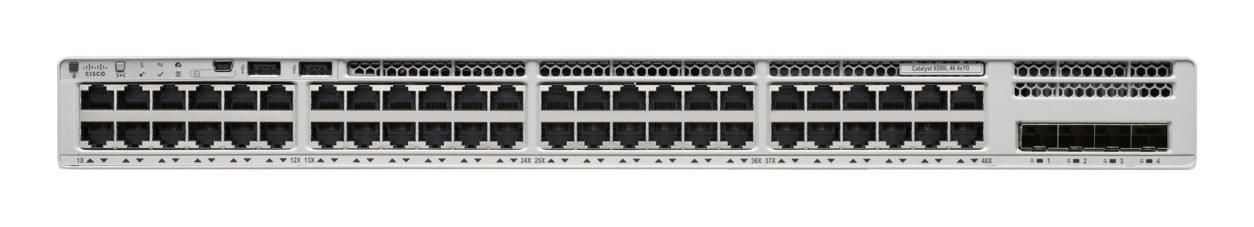

Catalyst 9200L Managed L3 10G
€1822,29
Catalyst 9200L Managed L3 10G
Availability: In stock
Secure payment · Fast delivery
EAN:W129057080Brand:
Catalyst 9200L Managed L3 10G
Specifications
Specifications
| Forwarding rate | 130,95 Mpps |
| Jumbo frames | 9198 |
| Jumbo frames support | Yes |
| MAC address table | 16000 entries |
| Packet buffer memory | 6 MB |
| Switching capacity | 176 Gbit/s |
| Certification | RoHS, IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950.1 |
| Product colour | Grey |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Traffic classification | Yes |
| Web-based management | Yes |
| Multicast features | IPv4 multicast entries 3000 IPv6 multicast entries 1500 Multicast MAC address table 1000 entriesMulticast support Yes |
| IPv4 multicast entries | 3000 |
| IPv6 multicast entries | 1500 |
| Multicast MAC address table | 1000 entries |
| Multicast support | Yes |
| 10G support | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T, 10GBASE-T |
| Flow control support | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Number of VLANs | 4096 |
| Routing entries | 3000 |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 5 - 90 % |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Packaging data | Package type Box |
| Package type | Box |
| Performance | Flash memory 4000 MBInternal memory 2000 MBMemory type DRAM |
| Flash memory | 4000 MB |
| Internal memory | 2000 MB |
| Memory type | DRAM |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Power connector | AC-in jack |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Input current | 1.6 - 0.7 A |
| Number of power supply units | 1 |
| Power consumption (max) | 740 W |
| Power consumption (typical) | 125 W |
| Power supply included | Yes |
| Power over Ethernet (PoE) | No |
| Power over Ethernet (PoE) No | Power over Ethernet (PoE) ports quantity 48 |
| Power over Ethernet (PoE) ports quantity | 48 |
| Protocols | Management protocols SNMPv1/v2c/v3 Routing protocols CDP, EIGRP, OSPF, RIP, VRRP |
| Management protocols SNMPv1/v2c/v3 | Routing protocols CDP, EIGRP, OSPF, RIP, VRRP |
| Management protocols | SNMPv1/v2c/v3 |
| Routing protocols | CDP, EIGRP, OSPF, RIP, VRRP |
| Security | Access Control List (ACL) Yes Security algorithms 128-bit AES |
| Access Control List (ACL) Yes | Security algorithms 128-bit AES |
| Access Control List (ACL) | Yes |
| Security algorithms | 128-bit AES |
| Vendor information | Brand Name Cisco Warranty 1 År |
| Brand Name Cisco | Warranty 1 År |
| Brand Name | Cisco |
| Warranty | 1 År |
| Kategorier | Hovedkategori Network Underkategori Wired Network Underkategori Network Switches Underkategori Network Switches |
| Hovedkategori | Network |
| Underkategori | Network Switches |
