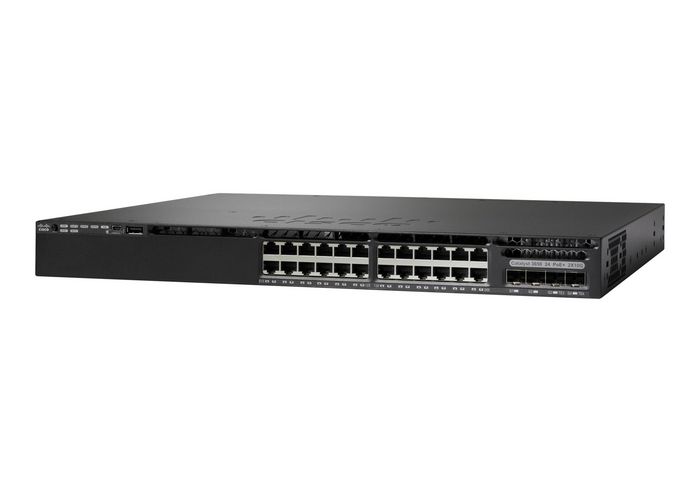

Cisco Catalyst 3650-24PS-L, Standalone, 1U, 24 x 10/100/1000 Ethernet PoE+, 4x1G Uplink ports, DRAM 4GB, Flash 2GB, 640W, LAN Base
The Cisco Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst 3650 is built on the advanced Cisco StackWise®-160, and takes advantage of the new Cisco® Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The Cisco Catalyst 3650 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), and offer modular and field-replaceable redundant fans and power supplies. They can help you increase wireless productivity and reduce your TCO.
Availability: In stock
The Cisco Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst 3650 is built on the advanced Cisco StackWise®-160, and takes advantage of the new Cisco® Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The Cisco Catalyst 3650 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), and offer modular and field-replaceable redundant fans and power supplies. They can help you increase wireless productivity and reduce your TCO.
Specifications
| Jumbo frames support | Yes |
| MAC address table | 32000 entries |
| Switching capacity | 92 Gbit/s |
| Certification | 47CFR Part 15 (CFR 47) Class A (FCC Part 15 Class A), AS/NZS CISPR22 Class A, CISPR22 Class A, CISPR24, CNS13438 Class A, EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, ICES003 Class A, KCC, KN22 Class A, KN24, VCCI Class A |
| Form factor | 1U |
| LED indicators | Yes |
| Market segment | Business |
| Product colour | Black |
| Rack mounting | Yes |
| Safety | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, GOST, NOM |
| Stackable | Yes |
| Products per master (outer) case | 1 pc(s) |
| Quantity per pack | 1 pc(s) |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Web-based management | Yes |
| Multicast support | Yes |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Number of VLANs | 4094 |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Non-operating altitude | 0 - 5000 m |
| Operating altitude | 0 - 1500 m |
| Operating relative humidity (H-H) | 5 - 96 % |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Bandwidth | 160 Gbit/s |
| Packaging content | WS-C3650-24PS-L Accessory Kit, 1 printed document |
| Flash memory | 2000 MB |
| Internal memory | 4096 MB |
| Mean time between failures (MTBF) | 528280 h |
| Memory type | DRAM |
| Noise level | 48 dB |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Power consumption (typical) | 64,18 W |
| Power plug type | Type C |
| Redundant power supply (RPS) support | Yes |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 390 W |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Products per shipping (inner) case | 1 pc(s) |
| Brand Name | Cisco |
| Warranty | 1 year |
