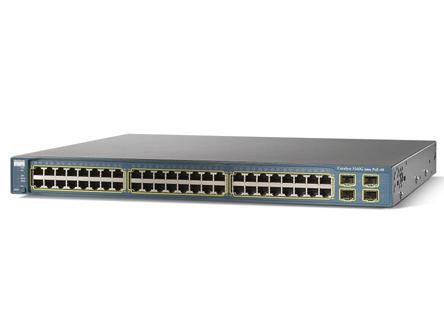

Cisco 48 Ethernet 10/100/1000 ports + 4 SFP-based Gigabit Ethernet ports, 1RU
The Cisco® Catalyst® 3560 Series is a line of fixed-configuration, enterprise-class switches that include IEEE 802.3af and Cisco prestandard Power over Ethernet (PoE) functionality in Fast Ethernet and Gigabit Ethernet configurations. The Cisco Catalyst 3560 is an ideal access layer switch for small enterprise LAN access or branch-office environments, combining both 10/100/1000 and PoE configurations for maximum productivity and investment protection while enabling the deployment of new applications such as IP telephony, wireless access, video surveillance, building management systems, and remote video kiosks. Customers can deploy networkwide intelligent services-such as advanced quality of service (QoS), rate limiting, access control lists (ACLs), multicast management, and high-performance IP routing-while maintaining the simplicity of traditional LAN switching. Available for the Cisco Catalyst 3560 Series at no charge, the Cisco Network Assistant is a centralized management applicati
Availability: In stock
The Cisco® Catalyst® 3560 Series is a line of fixed-configuration, enterprise-class switches that include IEEE 802.3af and Cisco prestandard Power over Ethernet (PoE) functionality in Fast Ethernet and Gigabit Ethernet configurations. The Cisco Catalyst 3560 is an ideal access layer switch for small enterprise LAN access or branch-office environments, combining both 10/100/1000 and PoE configurations for maximum productivity and investment protection while enabling the deployment of new applications such as IP telephony, wireless access, video surveillance, building management systems, and remote video kiosks. Customers can deploy networkwide intelligent services-such as advanced quality of service (QoS), rate limiting, access control lists (ACLs), multicast management, and high-performance IP routing-while maintaining the simplicity of traditional LAN switching. Available for the Cisco Catalyst 3560 Series at no charge, the Cisco Network Assistant is a centralized management application that simplifies the administration tasks for Cisco switches, routers, and wireless access points. Cisco Network Assistant provides configuration wizards that greatly simplify the implementation of converged networks and intelligent network services. Features: - 48 Ethernet 10/100/1000 ports and 4 SFP-based Gigabit Ethernet ports - 1RU fixed-configuration, multilayer switch - Enterprise-class intelligent services delivered to the network edge - Enhanced Multilayer Software Image (EMI) installed - Advanced IP routing
Specifications
| Jumbo frames support | Yes |
| MAC address table | 12000 entries |
| Maximum data transfer rate | 1 Gbit/s |
| Store-and-forward | Yes |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 32 Gbit/s |
| Certification | FCC Part 15 A, EN 55022: 1998 (CISPR22), EN 55024: 1998 (CISPR24), VCCI A, AS/NZS 3548 A, CE, CNS 13438 A, MIC |
| Product colour | Turquoise |
| Safety | UL to UL 60950, C-UL to CAN/CSA C22.2, TUV/GS to EN 60950:2000, CB to IEC 60950, NOM-019-SCFI, CE |
| Stackable | No |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Web-based management | Yes |
| Multicast support | Yes |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Copper ethernet cabling technology | 1000Base-T, 100Base-TX, 10Base-T |
| Flow control support | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Spanning tree protocol | Yes |
| Operating relative humidity (H-H) | 10 - 85 % |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Acoustic pressure emissions | 48 dB |
| Connectivity LEDs | Y |
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 445 x 409 x 44 mm |
| Management platform | Cisco IOS CLI, Cisco Network Assistant, SAA |
| Packet transfer speed | 38.7 Mpps |
| Power requirements | 100-240 VAC, 3.0-1.5A, 50-60Hz |
| Flash memory | 32 MB |
| Internal memory | 128 MB |
| Mean time between failures (MTBF) | 173400 h |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Gigabit Ethernet (copper) ports quantity | 48 |
| Power connector | DC-in jack |
| SFP module slots quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
| Power consumption (typical) | 160 W |
| Power over Ethernet (PoE) | No |
| Data link protocols | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Management protocols | IGMP, RMON, SNMP, Telnet |
| DHCP features | DHCP server |
| IGMP snooping | Yes |
| Brand Name | Cisco |
| Warranty | 3 Month(s) |
