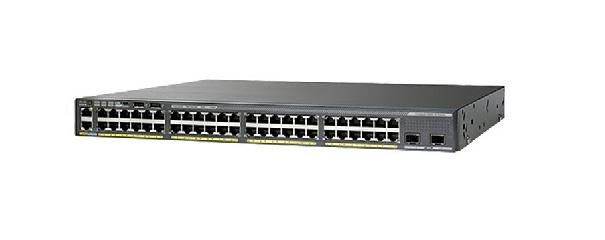

Cisco Catalyst 2960-XR, 48 x 10/100/1000 Ethernet, 2 x SFP+, APM86392 600MHz dual core, DRAM 512MB, Flash 128MB, PoE 740W, IP Lite
Cisco® Catalyst® 2960-X Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications (Figure 1). Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS® Software features. - 24 or 48 Gigabit Ethernet ports with line-rate forwarding performance. - Gigabit Small Form-Factor Pluggable (SFP) or 10G SFP+ uplinks. - FlexStack Plus for stacking of up to 8 switches with 80 Gbps of stack throughput (optional). - Power over Ethernet Plus (PoE+) support with up to 740W of PoE budget. - Reduced power consumption and advanced energy management features. - USB and Ethernet management interfaces for simplified operations. - Application visibility and capacity planning with integrated NetFlow-Lite. - LAN Base or LAN Lite Cisco IOS® software features. - Enhanced limited li
Availability: In stock
Cisco® Catalyst® 2960-X Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications (Figure 1). Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS® Software features. Cisco® Catalyst® 2960-X Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications (Figure 1). Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS® Software features. - 24 or 48 Gigabit Ethernet ports with line-rate forwarding performance. - Gigabit Small Form-Factor Pluggable (SFP) or 10G SFP+ uplinks. - FlexStack Plus for stacking of up to 8 switches with 80 Gbps of stack throughput (optional). - Power over Ethernet Plus (PoE+) support with up to 740W of PoE budget. - Reduced power consumption and advanced energy management features. - USB and Ethernet management interfaces for simplified operations. - Application visibility and capacity planning with integrated NetFlow-Lite. - LAN Base or LAN Lite Cisco IOS® software features. - Enhanced limited lifetime warranty (E-LLW) offering next-business-day hardware replacement.
Specifications
| Jumbo frames support | Yes |
| MAC address table | 16000 entries |
| Switching capacity | 216 Gbit/s |
| Throughput | 130.9 Mpps |
| LED indicators | Yes |
| Product colour | Black |
| Rack mounting | Yes |
| Safety | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1 |
| Stackable | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Web-based management | Yes |
| Multicast support | Yes |
| 10G support | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Full duplex | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Number of VLANs | 1023 |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Non-operating altitude | 0 - 4000 m |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 10 - 95 % |
| Operating temperature (T-T) | -5 - 40 °C |
| Storage relative humidity (H-H) | 10 - 95 % |
| Storage temperature (T-T) | -25 - 70 °C |
| Power LED | Yes |
| Built-in processor | Yes |
| Flash memory | 128 MB |
| Internal memory | 512 MB |
| Mean time between failures (MTBF) | 231590 h |
| Memory type | DRAM |
| Noise level | 40 dB |
| Processor frequency | 600 MHz |
| Processor model | AppliedMicro APM8639 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 |
| SFP+ module slots quantity | 2 |
| USB 2.0 ports quantity | 2 |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 264 V |
| Number of power supply units | 1 |
| Output power | 1025 W |
| Power consumption (typical) | 61,9 W |
| Redundant power supply (RPS) support | Yes |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 48 |
| Total Power over Ethernet (PoE) budget | 740 W |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Brand Name | Cisco |
| Warranty | 3 Month(s) |
