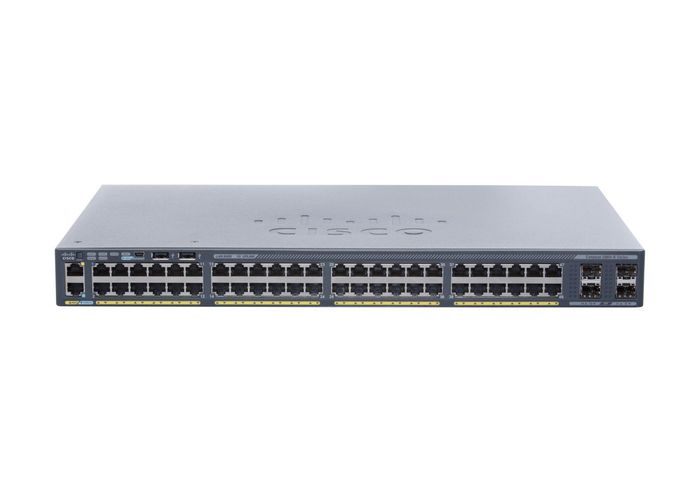

Cisco Get the enterprise-class features you want at a great price. Our 2960-X Series are stackable Gigabit Ethernet Layer 2 and Layer 3 access switches. They're easy to deploy, manage, and troubleshoot. They offer automated software installation and port configuration. And they help you cut costs with energy-efficient features.
The most sold switch worldwide, also known as 'the greenest switch ever'. Manage up to eight switches in a stack as one entity. The Cisco Series 2960-X Switch is the most sold switch worldwide and ideal for medium-sized to enterprise network environments. It's the greenest switch ever. You're able to fit eight switches in one stack, which you can manage as one entity. Your network can be easily modified and the implementation of new applications is supported, so you're able to meet new demands. Specifications Designed for operational simplicity to lower TCO, this platform also offers superior security capabilities. The switches deliver best-in-class energy efficiency, while preserving your investments through mixed stacking with existing Catalyst 2960-S and SF switches. Scalable and resilient The Cisco 2960-X Series Switch makes sure you can respond to new developments quickly. Because of true stacking capabilities, you can manage switches as one entity. It's possible to stack up
Availability: In stock
Specifications Scalable and resilient Smart management with software-defined networking (SDN) In control with AVC Automated configuration Network security Green switch Warranty The most sold switch worldwide, also known as 'the greenest switch ever'. Manage up to eight switches in a stack as one entity. The Cisco Series 2960-X Switch is the most sold switch worldwide and ideal for medium-sized to enterprise network environments. It's the greenest switch ever. You're able to fit eight switches in one stack, which you can manage as one entity. Your network can be easily modified and the implementation of new applications is supported, so you're able to meet new demands. Specifications Designed for operational simplicity to lower TCO, this platform also offers superior security capabilities. The switches deliver best-in-class energy efficiency, while preserving your investments through mixed stacking with existing Catalyst 2960-S and SF switches. Scalable and resilient The Cisco 2960-X Series Switch makes sure you can respond to new developments quickly. Because of true stacking capabilities, you can manage switches as one entity. It's possible to stack up to eight switches with 80 Gbps bandwidth, if you add the optional Cisco FlexStack+ module. Use Power over Ethernet and Power over Ethernet+ support up to 740 Watt, without adding extra power sources. Smart management with software-defined networking (SDN) The switch is built for network programmability, which makes it ready for software-defined networking (SDN). With network programmability and the controller, you can set up your network the way you want it, without hardware limitations. Use Cisco’s OnePK functionalities for developing and automizing your network. In control with AVC With application visibility and control (AVC) you realize classification, monitoring and traffic control on application level. NetFlow Lite prioritizes business applications. Automated configuration Benefit from automated configuration based on the type of device. This technology, Auto Smart Ports, enables fast deployment. Network security The Cisco 2960-X Series Switch is highly secure. Use Cisco Trustsec to enable scalable and dynamic role-based access control. This way, you keep unauthorized users off the network. Green switch The Cisco 2960-X Series Switch is the greenest switch ever. When you don't use the network, Cisco Energy Management (CEM) saves energy. With Energy Efficient Ethernet, you save energy on all switch ports which results in cost reduction. Warranty The enhanced limited lifetime warranty provides the same terms as Cisco’s standard limited lifetime warranty, but adds next business day delivery of replacement hardware, where available, and 90 days of 8X5 Cisco Technical Assistance Center (TAC) support."
Specifications
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| MAC address table | 16000 entries |
| Number of queues | 8 |
| Number of static routes | 1000 |
| Switching capacity | 216 Gbit/s |
| Throughput | 107.1 Mpps |
| Certification | 47CFR Part 15 (CFR 47), AS/NZS CISPR22, CISPR22, CNS13438, EN55022, EN61000-3-2, EN61000-3-3, ICES003, KN22, VCCI |
| Form factor | 1U |
| LED indicators | Yes |
| Market segment | Business |
| Product colour | Black |
| Rack mounting | Yes |
| Safety | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1 |
| Stackable | Yes |
| Products per master (outer) case | 1 pc(s) |
| Quantity per pack | 1 pc(s) |
| ARP inspection | Yes |
| MIB support | Y |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Web-based management | Yes |
| Multicast support | Yes |
| Number of multicast groups filtered | 1000 |
| 10G support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Full duplex | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Number of VLANs | 1023 |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Non-operating altitude | 0 - 4000 m |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 10 - 95 % |
| Operating temperature (T-T) | -5 - 40 °C |
| Storage relative humidity (H-H) | 10 - 95 % |
| Storage temperature (T-T) | -25 - 70 °C |
| Packaging content | WS-C2960X-48TS-L Switch, Accessory Kit, 1 printed document |
| Power LED | Yes |
| Cables included | AC |
| User guide | Yes |
| Built-in processor | Yes |
| Flash memory | 128 MB |
| Internal memory | 512 MB |
| Mean time between failures (MTBF) | 442690 h |
| Memory type | DRAM |
| Noise level | 42 dB |
| Physical stacking (units) | 8 |
| Processor frequency | 600 MHz |
| Processor model | AppliedMicro APM8639 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 |
| Gigabit Ethernet (copper) ports quantity | 48 |
| SFP module slots quantity | 4 |
| USB 2.0 ports quantity | 2 |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Power consumption (typical) | 49,5 W |
| Power plug type | Type C |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Management protocols | SNMPv3 |
| Switching protocols | UDP, TCP, RADIUS/TACACS+ |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) rules | 3 |
| Authentication | MAC-based authentication, Port-based authentication |
| DHCP features | DHCP server |
| IGMP snooping | Yes |
| Security algorithms | 802.1x RADIUS, SNMP, SSH |
| SSH/SSL support | Yes |
| Products per shipping (inner) case | 1 pc(s) |
| Brand Name | Cisco |
| Warranty | 1 year |
