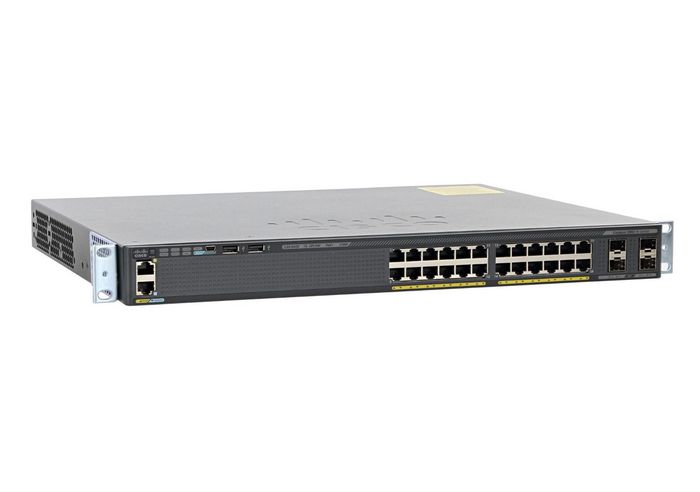

Cisco The Greenest Switch Ever'. That's the 2960X. Up to 8 Switches in a Stack, managed with only 1 interface. Layer 2, managed and Power over Ethernet on all ports. SFP Uplinks available.
Designed for operational simplicity to lower TCO, this platform also offers superior security capabilities. The switches deliver best-in-class energy efficiency, while preserving your investments through mixed stacking with existing Catalyst 2960-S and SF switches. - Layer 2 - 24-Ports + 4 Gigabit SFP uplinks
Availability: In stock
Designed for operational simplicity to lower TCO, this platform also offers superior security capabilities. The switches deliver best-in-class energy efficiency, while preserving your investments through mixed stacking with existing Catalyst 2960-S and SF switches. - Layer 2 - 24-Ports + 4 Gigabit SFP uplinks
Specifications
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| MAC address table | 16000 entries |
| Number of queues | 8 |
| Number of static routes | 1000 |
| Switching capacity | 216 Gbit/s |
| Throughput | 71.4 Mpps |
| Certification | 47CFR Part 15 (CFR 47), AS/NZS CISPR22, CISPR22, CNS13438, EN55022, EN61000-3-2, EN61000-3-3, ICES003, KN22, VCCI |
| Form factor | 1U |
| LED indicators | Yes |
| Market segment | Business |
| Product colour | Black |
| Rack mounting | Yes |
| Safety | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1 |
| Stackable | Yes |
| Products per master (outer) case | 1 pc(s) |
| Quantity per pack | 1 pc(s) |
| ARP inspection | Yes |
| MIB support | Y |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Web-based management | Yes |
| Multicast support | Yes |
| Number of multicast groups filtered | 1000 |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Full duplex | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Number of VLANs | 1023 |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Virtual LAN features | Private VLAN |
| VLAN support | Yes |
| Non-operating altitude | 0 - 4000 m |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 10 - 95 % |
| Operating temperature (T-T) | -5 - 40 °C |
| Storage relative humidity (H-H) | 10 - 95 % |
| Storage temperature (T-T) | -25 - 70 °C |
| Packaging content | WS-C2960X-24PS-L Switch, Accessory Kit, 1 printed document |
| Power LED | Yes |
| Cables included | AC |
| User guide | Yes |
| Built-in processor | Yes |
| Flash memory | 128 MB |
| Internal memory | 512 MB |
| Mean time between failures (MTBF) | 324280 h |
| Memory type | DRAM |
| Noise level | 39 dB |
| Physical stacking (units) | 8 |
| Processor frequency | 600 MHz |
| Processor model | AppliedMicro APM8639 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| SFP module slots quantity | 4 |
| USB 2.0 ports quantity | 2 |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Input current | 5 A |
| Number of power supply units | 1 |
| Power consumption (typical) | 49 W |
| Power plug type | Type C |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet plus (PoE+) ports quantity | 12 |
| Total Power over Ethernet (PoE) budget | 370 W |
| Management protocols | SNMPv3 |
| Switching protocols | UDP, TCP, RADIUS/TACACS+ |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) rules | 3 |
| Authentication | MAC-based authentication, Port-based authentication |
| DHCP features | DHCP server |
| IGMP snooping | Yes |
| Security algorithms | 802.1x RADIUS, SNMP, SSH |
| SSH/SSL support | Yes |
| Products per shipping (inner) case | 1 pc(s) |
| Brand Name | Cisco |
| Warranty | 1 year |
