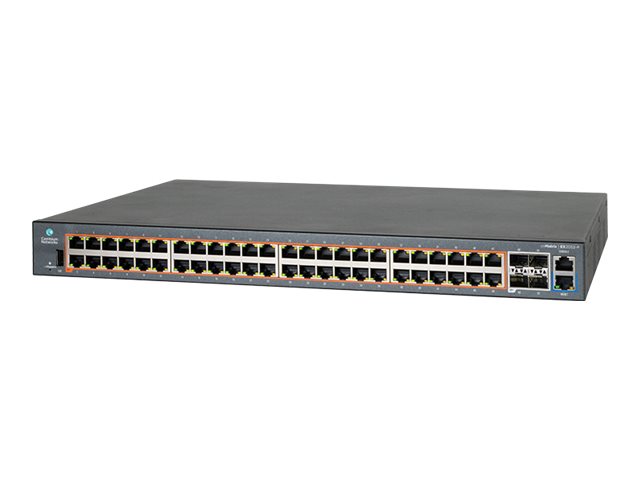

Cambium Networks cnMatrix EX2000 Series EX2052-P Switch 52-porte PoE+
€2456,12
Cambium Networks cnMatrix EX2000 Series EX2052-P - Switch - fikseret 540, ingen strømledning - Administreret - 48 x 10/100/1000 (PoE+) + 4 x SFP+ (uplink) - monterbar på stativ - PoE+ (400 W)
Availability: In stock
Secure payment · Fast delivery
EAN:5704174637011Brand:
Cambium Networks cnMatrix EX2000 Series EX2052-P - Switch - fikseret 540, ingen strømledning - Administreret - 48 x 10/100/1000 (PoE+) + 4 x SFP+ (uplink) - monterbar på stativ - PoE+ (400 W)
Specifications
Specifications
| Produktbeskrivelse | Cambium Networks cnMatrix EX2000 Series EX2052-P - switch - fikseret 540, ingen strømledning - 52 porte - Administreret - monterbar på stativ |
| Enhedstype | Switch - 52 porte - Administreret |
| Pakningstype | Monterbar på stativ 1U |
| Porte | 48 x 10/100/1000 (PoE+) + 4 x SFP+ (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE-budget | 400 W |
| Præstation | Kapacitet: 176 Gbps<br>Videresendelsesrate (64‑byte pakker): 120 Mpps |
| Kapacitet | VLANs understøttet: 4000<br>QoS-køer: 8<br>ACL-poster (indgang/udgang): 128<br>Statiske ARP-indtastninger: 512<br>ARP-indtastninger: 512<br>Statiske ruter: 64<br>Dynamiske ruter: 512<br>IGMP multicast-grupper: 256 |
| MAC adresse table størrelse | 16K indtastningshukommelse |
| Routingprotokol | IGMPv2, IGMP, IGMPv3 |
| Protokol til fjernadministration | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, CLI |
| Egenskaber | Auto-uplink (auto MDI/MDI-X), IGMP snooping, portspejling, DiffServ understøttet, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP-understøttet, PVST, DHCP snooping, QoS, nulstillingsknap, LLDP support, DHCP videresendelse, PVRST, DHCP klient, portisolering, IGMP proxy, 2 blæsere, Link Aggregation, Root Guard, PVE, LLDP-MED, IGMP hurtigafgang, DoS protection, BPDU Filter, Telnet-server, Telnet-klient, BPDU Guard |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ak, IEEE 802.3at |
| Effekt | AC 100-240 V |
| Dimensioner (B x D x H) | 44 cm x 35 cm x 4.4 cm |
| Vægt | 5.4 kg |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2), internal user database |
| Capacity | VLANs supported: 4000 | QoS queues: 8 | ACL entries (ingress/egress): 128 | Static ARP entries: 512 | ARP entries: 512 | Static routes: 64 | Dynamic routes: 512 | IGMP multicast groups: 256 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ak, IEEE 802.3at |
| Device Type | Switch - 52 ports - managed |
| Enclosure Type | Rack-mountable 1U |
| Encryption Algorithm | AES, TLS 1.0, SSL 3.0 |
| Features | Auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, Per-VLAN Spanning Tree (PVST), DHCP snooping, Quality of Service (QoS), reset button |
| Flash Memory | 128 MB |
| MAC Address Table Size | 16K entries |
| Performance | Throughput: 176 Gbps | Forwarding rate (64‑byte packets): 120 Mpps |
| PoE Budget | 400 W |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x SFP+ (uplink) |
| Processor | : 800 MHz |
| RAM | 512 MB |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, CLI |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Status Indicators | PoE, link/activity |
| Interfaces | 48 x Gigabit LAN RJ-45 30 W | 4 x Gigabit / 10Gbit LAN SFP+ uplink | 1 x serial (console) | 1 x USB | 1 x management |
| Power Consumption Operational | 39.24 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V |
| MTBF | 238,063 hours |
| Rack Mounting Kit | Included |
| Depth | 35 cm |
| Height | 4.4 cm |
| Weight | 5.4 kg |
| Width | 44 cm |
| Humidity Range Operating | 55 - 95% |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
