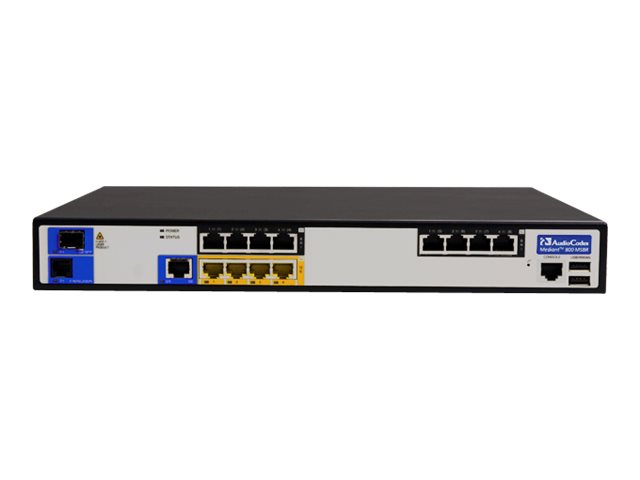

AudioCodes Mediant 800B MSBR Router Kabling
€2738,72
AudioCodes Mediant 800B MSBR - Router - DSL-modem 1GbE - VoIP-telefonadapter - monterbar på stativ
Availability: In stock
Secure payment · Fast delivery
EAN:996014958Brand:
AudioCodes Mediant 800B MSBR - Router - DSL-modem 1GbE - VoIP-telefonadapter - monterbar på stativ
Specifications
Specifications
| Produktbeskrivelse | AudioCodes Mediant 800B MSBR - router - DSL-modem - desktop, monterbar på stativ |
| Enhedstype | Router - DSL-modem |
| Pakningstype | Desktop, monterbar på stativ - 1U |
| Protokol for digital signaltransmission | SHDSL |
| Dataforbindelsesprotokol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Kapacitet | Maksimalt antal signallerings-/mediesessioner: 60<br>Maksimale antal registrerede brugere: 500<br>Maksimalt antal transkodede sessioner: 57 |
| Jumborammesupport | Ja |
| Netværks/overføselsprotokol | L2TP, IPSec, PPPoE, PPPoA, IPoA, IPoE, DHCP, OAM F5, DHCPv6 |
| Routingprotokol | RIP-1, RIP-2, BGP, IGMPv2, OSPFv2, statisk IP routing, police-baseret routing (PBR) |
| Protokol til fjernadministration | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, TR-069, TR-098, TR-104, ICMP, DHCP, IPv4, IPv6, TR-181 |
| VoIP-funktionalitet | VoIP-telefonadapter |
| VoIP-protokoller | RTP, SRTP, SIP over TLS, SIP over TCP, SIP over UDP |
| Grænseflader til telefoni | 2 telefon (ISDN PRI) |
| Egenskaber | Syslog understøttet, pakkefiltrering, DiffServ understøttet, IDS, IPS, firmware kan opgraderes, DDos attack beskyttelse, WRED, QoS, DHCP server, nulstillingsknap, DHCP videresendelse, SPIF, DHCP klient, NAC, High Precision 5ppm Clock Source, SYN Flooding, Ping of Death, ToS, DSCP support, ZTP, DMZ-support, VLAN Tagging, OAM loopback, PPP, MLPPP |
| Overensstemmelsesstandarder | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x |
| Effekt | AC 120/230 V (50 - 60 Hz) |
| Dimensioner (B x D x H) | 34.5 cm x 32 cm |
| Vægt | 2.7 kg |
| Authentication Method | RADIUS, TACACS |
| Capacity | Maximum number of signaling / media sessions: 60 | Maximum number of registered users: 500 | Maximum number of transcoded sessions: 57 |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Device Type | Router |
| Enclosure Type | Desktop, rack-mountable - 1U |
| Encryption Algorithm | Triple DES, MD5, AES, 256-bit SHA, ESP |
| Features | Syslog support, packet filtering, DiffServ support, Intrusion Detection System (IDS), Intrusion Prevention System (IPS), firmware upgradable, DDos attack prevention, Weighted Random Early Detection (WRED), Quality of Service (QoS), DHCP server, reset |
| Jumbo Frame Support | Yes |
| Network / Transport Protocol | L2TP, IPSec, PPPoE, PPPoA, IPoA, IPoE, DHCP, OAM F5, DHCPv6 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, TR-069, TR-098, TR-104, ICMP, DHCP, IPv4, IPv6, TR-181 |
| Routing Protocol | RIP-1, RIP-2, BGP, IGMPv2, OSPFv2, static IP routing, policy-based routing (PBR) |
| Status Indicators | Power, status, phone, WAN, LAN, DSL |
| Digital Signaling Protocol | SHDSL |
| Type | DSL modem |
| IP Telephony Features | Echo cancellation (G.168), echo cancellation (G.165), SIP trunking, blacklisting |
| Telephony Interfaces | 2 phone (ISDN PRI) |
| Voice Codecs | G.711, G.722, G.723.1, G.729a, T.38, AMR-WB, Opus-NB, Opus-WB, AMR-NB, SILK-NB, SILK-WB |
| VoIP Functionality | VoIP phone adapter |
| VoIP Protocols | RTP, SRTP, SIP over TLS, SIP over TCP, SIP over UDP |
| Interfaces | LAN: 4 x 1000Base-T - RJ-45 | Phone line: 1 x PRI E1/T1 - RJ-48 | WAN: 2 x SHDSL x 2 | WAN: 2 x 1000Base-T - RJ-45 | WAN: Ethernet 1000 - SFP (mini-GBIC) | Console: 1 x RS-232 - RJ-45 | USB: 2 x |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Depth | 32 cm |
| Weight | 2.7 kg |
| Width | 34.5 cm |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 5 °C |
