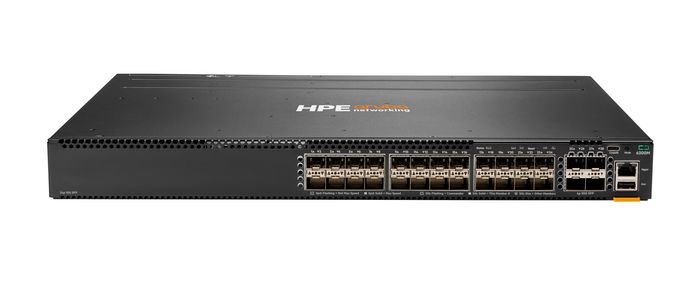

Hewlett Packard Enterprise Aruba Networking CX 6300M 24-port SFP+ and 4-port SFP56 Switch
The Aruba CX 6300 Switch Series is a modern, flexible and intelligent family of stackable switches ideal for enterprise access, aggregation and core deployments. A powerful distributed architecture supports scalable, non-blocking performance to future-proof your network for tomorrow’s unpredictable demands. This series has built-in, high-speed uplinks and include models with 24 SFP+ ports and full-density 60W PoE with multi-gigabit Ethernet for a high-performance network. A cloud-centric design with a fully programmable OS delivers automation and simplicity, including easy-to-use configuration tools for error-free installs. Built-in monitoring and analytics across the network provide operators with immediate troubleshooting and problem resolution insights.
Availability: In stock
The Aruba CX 6300 Switch Series is a modern, flexible and intelligent family of stackable switches ideal for enterprise access, aggregation and core deployments. A powerful distributed architecture supports scalable, non-blocking performance to future-proof your network for tomorrow’s unpredictable demands. This series has built-in, high-speed uplinks and include models with 24 SFP+ ports and full-density 60W PoE with multi-gigabit Ethernet for a high-performance network. A cloud-centric design with a fully programmable OS delivers automation and simplicity, including easy-to-use configuration tools for error-free installs. Built-in monitoring and analytics across the network provide operators with immediate troubleshooting and problem resolution insights.
Specifications
| Latency (1 Gbps) | 1,99 µs |
| Latency (10 Gbps) | 1,49 µs |
| MAC address table | 32000 entries |
| Number of queues | 8 |
| Packet buffer memory | 8 MB |
| Switching capacity | 880 Gbit/s |
| Throughput | 654 Mpps |
| Airflow direction | Front-to-back airflow |
| Number of fans | 2 fan(s) |
| Product colour | Black |
| Rack mounting | Yes |
| Stackable | Yes |
| Configuring Location Settings (CLI) | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| System event log | Yes |
| IPv4 multicast entries | 8000 |
| IPv6 multicast entries | 8000 |
| MLD entries | 4000 |
| Multicast MAC address table | 32000 entries |
| Multicast support | Yes |
| Number of multicast groups filtered | 8000 |
| 10G support | Yes |
| Auto MDI/MDI-X | Yes |
| IP routing | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3bt |
| Policy-based routing | Yes |
| Port mirroring | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Non-operating altitude | 0 - 4600 m |
| Operating altitude | 0 - 3040 m |
| Operating relative humidity (H-H) | 15 - 95 % |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage relative humidity (H-H) | 15 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Transmission distance (max) | 10 km |
| Dimensions (W x D x H) (imperial) | 1.73 x 17.4 x 15.2 " |
| Fan | Switch has two fan tray slots and comes with two fan trays installed. Minimum two fan trays required. Fan trays are field replaceable and hot‑swappable. Each fan tray contains two fans. |
| I/O ports | 24 x 1G/10G SFP+ ports 4 x 1G/10G/25G/50G [4] SFP ports 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM port |
| Latency | 1 Gbps: 2.28 μs 10 Gbps: 1.46 μs 25 Gbps: 1.90 μs 50 Gbps: 3.49 μs |
| Memory and processor | CPU: Dual-core Arm Cortex-A9 @ 1.8GHz Memory: 8 GB DDR4, 32 GB eMMC Flash: 8 MB, 16 MB, or 32 MB, depending on model and configuration |
| Performance management | Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software |
| Weight (imperial) | 11,26 lbs |
| Rack mount kit | Yes |
| Built-in processor | Yes |
| Flash memory | 32000 MB |
| Internal memory | 8000 MB |
| Memory type | DDR4-SDRAM |
| Noise level | 31 dB |
| Physical stacking (units) | 10 |
| Processor frequency | 1800 MHz |
| Processor model | ARM Cortex-A72 |
| Basic switching RJ-45 Ethernet ports quantity | 0 |
| Basic switching RJ-45 Ethernet ports type | No |
| Console port | USB |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 4 |
| SFP+ module slots quantity | 24 |
| USB 2.0 ports quantity | 1 |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Input current | 3/1.2 A |
| Power consumption (max) | 85 W |
| Power consumption note | Idle: 51W 100% Traffic Rate: 85W |
| Power over Ethernet (PoE) | No |
| Routing protocols | OSPF, OSPFv3 |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP relay, DHCP server |
| IGMP entries | 8000 |
| SSH/SSL support | Yes |
| Brand Name | Hewlett Packard Enterprise |
| Warranty | 1 year |
