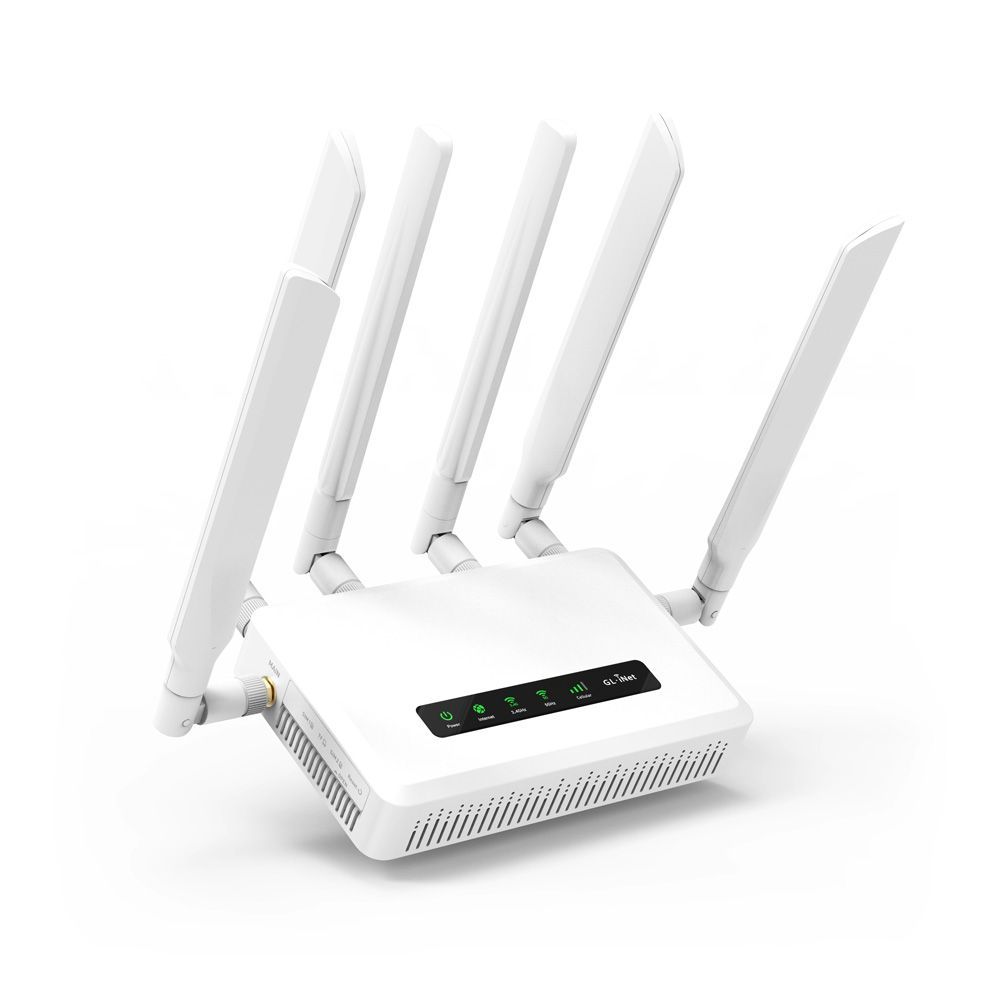

ALLNET Wireless Router 4G/5G WIFI6 • AX3000 • 2x2 • 1GbE • 2.5GbE WAN • OpenVPN/Wireguard "OpenWRT"
GL-X3000 is a Wi-Fi 6 cellular gateway designed to provide reliable cellular networks in remote locations and high speed internet in urban areas. It has six external antennas for long range connection, two SIM Cards for selecting between the ISP with stronger connections, and Multi-WAN between the…
Availability: In stock
GL-X3000 is a Wi-Fi 6 cellular gateway designed to provide reliable cellular networks in remote locations and high speed internet in urban areas. It has six external antennas for long range connection, two SIM Cards for selecting between the ISP with stronger connections, and Multi-WAN between the WAN port, SIM Card, and Repeater.
Specifications
| 5G NR | NSA |
| SA | n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79 |
| LTE | LTE-FDD |
| LTE-TDD | B34/ 38/ 39/ 40/ 41/ 42/ 43/ 48 |
| LAA | B46 |
| UMTS | WCDMA |
| GNSS | GPS/ GLONASS/ BDS/ Galileo/ QZSS |
| DL 2CA | Intra-band and Inter-band |
| DL 3CA | Intra-band and Inter-band |
| DL 4CA | Intra-band and Inter-band |
| DL 5CA | Intra-band and Inter-band within 5 bands |
| DL 4×4 MIMO | B1/B2/B3/B4/B7/B25/B30/B32?/B38/B39/B40/B41/B66 |
| DL 256QAM | Supported |
| UL 2CA | Intra-band |
| UL 64QAM | Supported |
| Interface | 1 x WAN Ethernet port 1 x LAN Ethernet port 1 x USB 2.0 port 1 x MicroSD card slot (Max.1TB) 2 x Nano SIM card slot 1 x Reset button |
| CPU | MediaTek Dual-core MT7981A, @1.3GHz |
| Memory / Storage | DDR4 512 MB / eMMC 8GB |
| Protocol | IEEE 802.11a/b/g/n/ac/ax |
| Wi-Fi Speed | 574Mbps (2.4GHz), 2402Mbps (5GHz) |
| Ethernet Speed | WAN Port: 10/100/1000/2500Mbps LAN Port: 10/100/1000Mbps |
| Antennas | 6 x Optional Antennas (4 for 4G LTE/5G NR, 2 for Wi-Fi) |
| LEDs | System / 5G WiFi / 2.4G WiFi / Internet / Cellular Signal Strength |
| Power Input | DC 9-36V |
| Power Consumption | <14W |
| Operating Temperature | 0 ~ 40°C (32 ~ 104°F) |
| Storage Temperature | -20 ~ 70°C (-4 ~ 158°F) |
| Dimension / Weight | 155 x 95 x 36mm / 520g |
