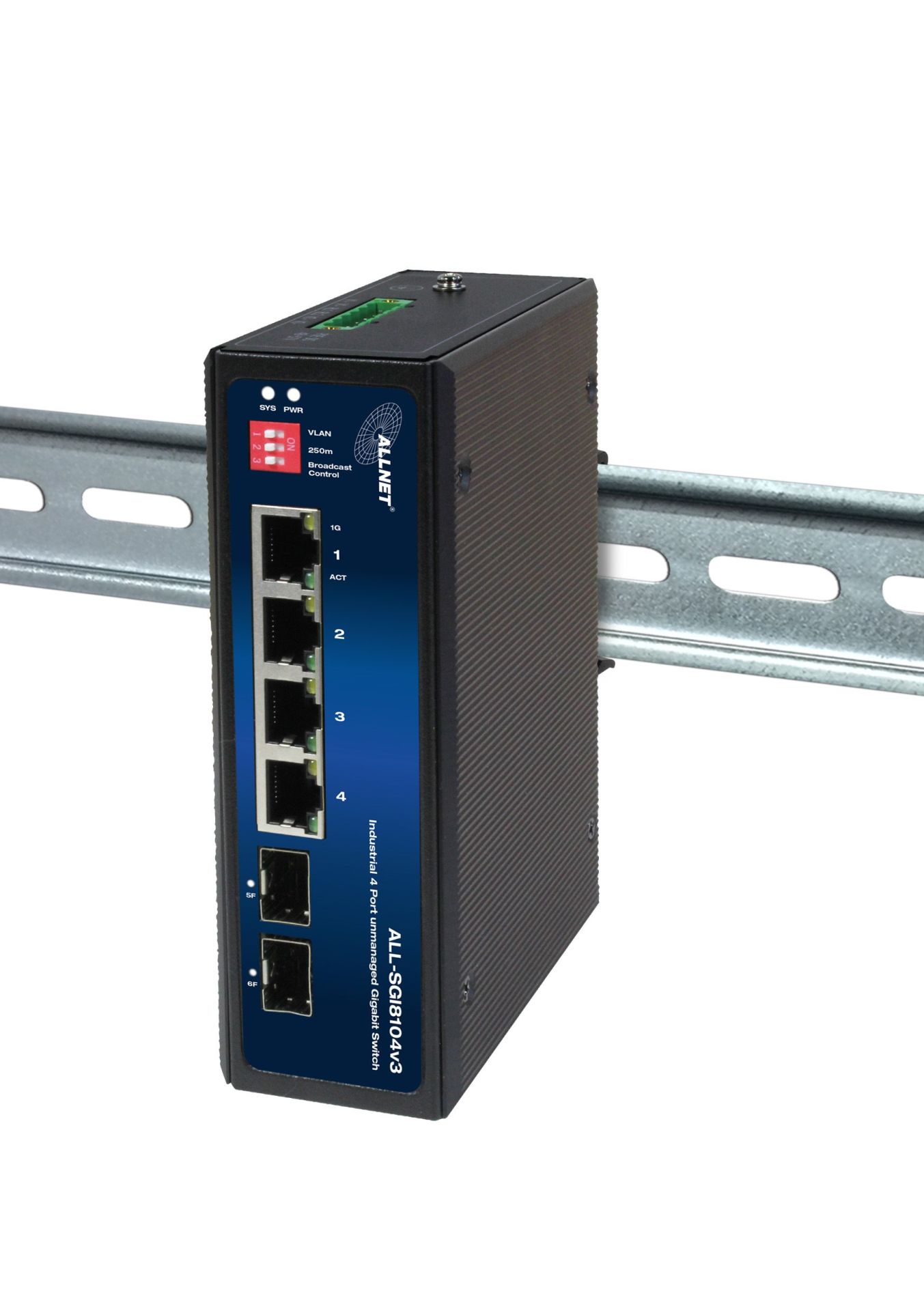

["Industrial Design, 4x 10/100/1000M Ethernet RJ45 Ports with AutoUplink™ and 2 Gigabit SFP Slots. ALL-SGI8104v3 Industrial Gigabit Ethernet Switch - 6 Ports (4× RJ45 + 2× SFP), DIN Rail, IP40 The ALL-SGI8104v3 is a high-performance industrial 6-Port Gigabit Ethernet Switch developed for reliable operation in demanding industrial environments. Is verfügt über 4 × 10/100/1000M RJ45 Ethernet Ports with Auto-Negotiation and 2 × Gigabit SFP Slots, which enable flexible network expansion and long-distance fiber optic connections of up to 120 km. The Switch is equipped with a robust aluminum extrusion housing and offers excellent resistance to corrosion, electromagnetic interference, vibration and harsh environmental conditions. Its IP40 protection class and DIN-35 rail mounting make it ideal for industrial automation, switches, transport systems and factory networks. The Switch supports IEEE 802.3x flow control in full-duplex mode and back-pressure in half-duplex mode, thus guaranteeing a stable and efficient data transfer. All RJ45-Ports support Auto MDI/MDI-X und Plug-and-Play-Installation, was eine schnelle Möglichkeit ohne Konfiguration ermöglicht. Integrated LED displays provide clear status monitoring for power, connection and network activity. Extended DIP-Switch function enable eine simple Netzwerkoptimierung: VLAN-Isolierung (Ports 1-4 voneinander isoliert, Kommunikation mit SFP-Ports erlaubt, um Broadcast Storms zu preventer) Extended Übertagungsmodus bis zu zu 250 Meter For maximum Netzwerkzuverlässigkeit und Gerätschutz ist der ALL-SGI8104v3 mit 6 kV Überspannungschutz (6 kV Gleichtakt, 2 kV Differentialmode) und ESD-Schutz (6 kV Contact, 8 kV Air discharge) equipped. The ALL-SGI8104v3 is, with its wide range of industrial power input options and excellent adaptability to environmental conditions, an ideal solution for the connection of industrial controls, servers, relays, hubs, terminals and other network devices in business-critical applications. 2*1000Base-X Uplink SFP-Glasfaseranschlüsse Gigabit SFP Glasfaserschnittstelle, standardmäßig appropriate optische Module, müssen separat gäufk werden, (optional Bestellung Singlemode / Multimode, Einzelfaser / Doppelfaser optisches Modul. -40 ~ +75°C;5% ~90% RH Nicht condensierend -40 ~ +85°C;5% ~95% RH Nicht condensierend", "Supports IEEE802.3x flow control for full-duplex mode and back pressure for half-duplex mode", "RJ-45 port supports Auto MDI/MDI-X", "Auto-negotiation for full-duplex mode and half-duplex mode", "Plug and play, with LED indicators to monitor power/link/activity, easy to use", "Provides DIN35 rail installation method", "6KV surge protection (6KV common mode, 2KV differential mode), 6KV contact/8KV air ESD protection", "IP40 protection class", "Advanced DIP function: VLAN: Ports 1-4 can be isolated from each other, but can be connected to ports 5 & 6 after open VLAN to stop broadcast storm and increase the forwarding rate of frames", "250m: Transmission range 250 meters", "Broadcast control", "VLAN isolation (ports 1-4 isolated from each other, communication with SFP ports allowed to prevent broadcast storms)", "Extended transmission mode up to 250 meters", "Broadcast Storm Control"]
