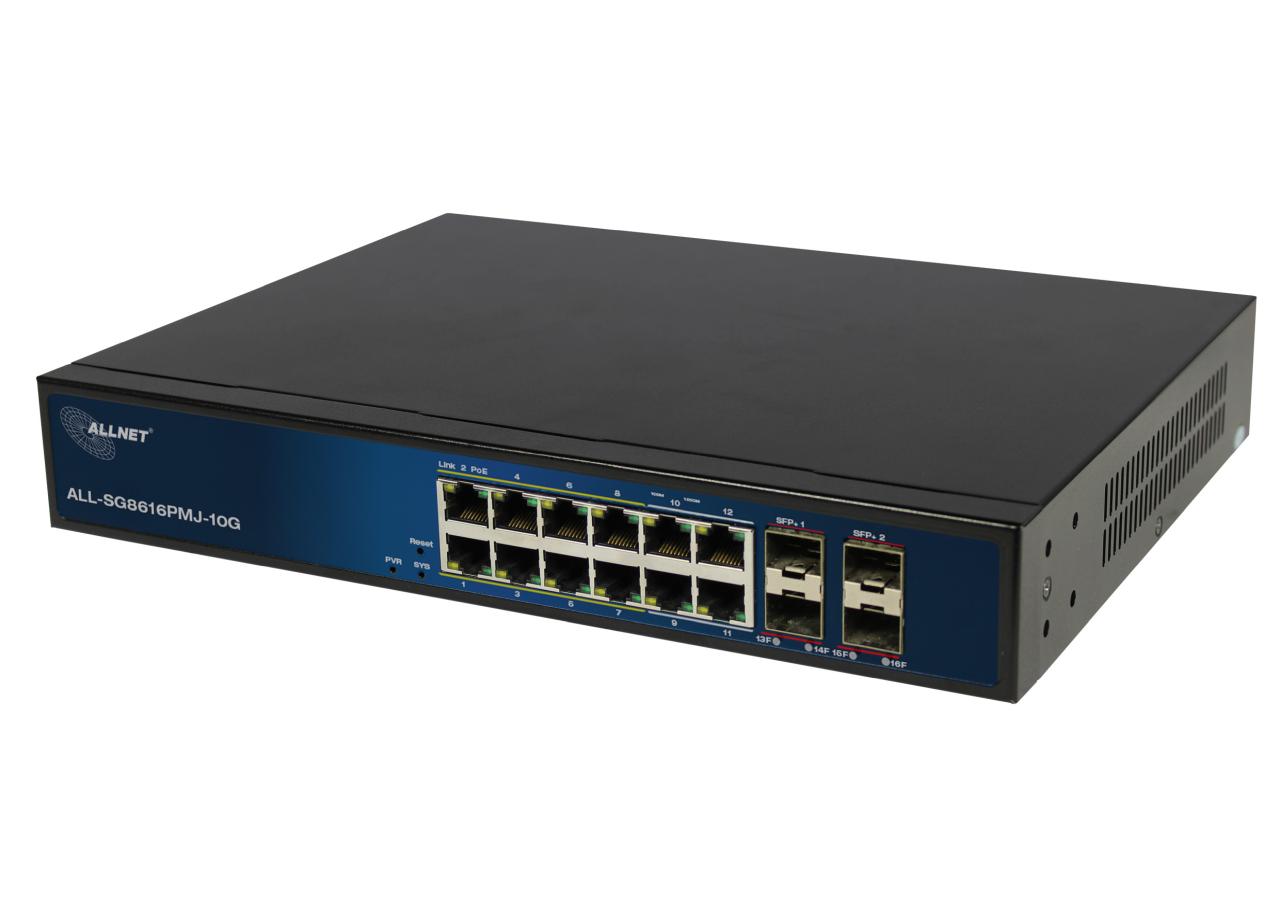

["The ALL-SG8616PMJ-10G is a Layer2+ 10G Uplink managed PoE Fiberglass Switch. Has 12x10/100/1000Base-T RJ45 connectors and 4x1/10G SFP+ Fiber MiniGBIC socket connectors. Port 1-8 Unterstützt PoE according to IEEE 802.3af/bei Standard-PoE-Stromversorgung. Single-port PoE power supply reaches 30W, and the maximum PoE output is 130W. Der Switch kann POE-Endgeräte wie z.B. Wireless AP, Webcam with power supply, VoIP telephones, Gegensprechanlage für die visual Zugangskontrolle im Gebäude usw. über ein Patchkabel/Netzwerkkabel etc. The Switch is suitable for Hotels, Campuses, Parks, Einkaufszentren, picturesque places, Hospitals, Factories Wohnheim und kleine und mittlere Unternehmen. The ALL-SG8616PMJ-10G has the full Layer2+ network management function, supports IPV4/IPV6 administration, supports static forwarding of the full routing rate of the route, supports the complete safety protection mechanism, complete ACL/QoS directive and rich VLAN function and is easy to wait and manage. The Switch supports multiple Network Redundancy Protocols STP/RSTP/MSTP and (ITU-T G.8032) ERPS(<50ms) to improve Verbindung Backup und Netzwerkzuverlässigkeit. When the network fails, the communication can be quickly restored to guarantee an important uninterrupted communication for applications. According to the actual application requirements, you can guarantee/perform multiple application services such as PoE power management, port traffic control, VLAN division and SNMP via the Web network management mode. 10Gbps Uplink Capacity for Applications with Large Bandwidth 10G Ethernet is a major leap in the development of Ethernet. The 10G SFP+ slots support Dual-Speed ​​10GBASE-SR/LR or 1000BASE-SX/LX, i.e. the Administrator can now flexibly select the suitable SFP/SFP+ Transceiver according to the transmission distance or speed to expand the network efficiently. This is a cost-effective solution for SME networks to reach the maximum performance of 10G networks. Lösung für IPv6-Netzwerke Mit dem IPv6/IPv4-Dual-Stack and the other administrative function, the ALL-SG8616PMJ-10G is the best choice for providers of IP-CCTV-Überwachungs-, VoIP- und Wireless Lösungen for the development of IPv6 networks. Gleichzeiten helfen sie KMUs, ihre Netzwerkinfrastrukturen ohne adziehen Investments auf das IPv6 Zeitalter umzustellen. Robust Layer-2-Function The ALL-SG8616PMJ-10G can be programmed for extended Switch-Management-Function, wie z. B. Port-Aggregation, Q-in-Q VLAN, Spanning Tree Protocol, QoS, Bandbreitensteuerung, ERPS, IGMP/MLD-Snooping etc. The ALL-SG8616PMJ-10G enables the operation of high-speed trunks that combine multiple ports. Powerful security function The ALL-SG8616PMJ-10G offers a comprehensive access control list (ACL) to enforce security on the network edge. It can be used to restrict network access by rejecting packets based on the source and target IP address, the TCP/UDP port number or the definition of typical network applications. Der Schutzmechanismus ompasst auch 802.1x Port-basierte und MAC-basierte Benutzer- und Geräteauthentifizierung. With the private VLAN function, the communication between Edge-Ports can be prevented to protect the user's privacy. Verbesserte Sicherheit und Verkehrskontrolle The ALL-SG8616PMJ-10G supports the function DHCP Snooping, IP Source Guard und Dynamic ARP Inspection, um IP-Snooping vor Angriffen zu schützen und ARP-Pakete mit ungültiger MAC-Adresse zu verwerfen. The network administrator can now build highly secure enterprise networks with significantly less time and effort than previously. Benutzerfreundliches, sicheres Management Für eine efficient Verwaltung ist die ALL-SG8616PMJ-10G Managed Switch-Serie mit Konsolen-, Web- und SNMP Verwaltungsschnittstellen ausgestattenden. Mit der Verwaltungsschnittstelle bietet der ALL-SG8616PMJ-10G eine benutzerfreundliche, plattformunabhängige Verwaltungs- und Konfigurationmöglichkeit. The ALL-SG8616PMJ-10G supports SNMP and can be managed via any Management Software based on the Standard SNMP v1 or v2 Protocol. At the same time, the ALL-SG8616PMJ-10G offers Cisco-like commands via Telnet or the console port, so that the customer does not have to learn new commands for these switches. In addition, the ALL-SG8616PMJ-10G offers secure remote management through the support of SSH, SSL and SNMP v3 connections, in which the contents of the package can be encrypted at each session. Intelligent SFP-DDM function The ALL-SG8616PMJ-10G supports the SFP-DDM function (Digital Diagnostic Monitor), which enables the network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as B. optische Ausgangsleistung, optische Eingangsleistung, Temperatur, Laservorspannung und Transceiver-Versorgungsspannung. PoE schedule function for energy savings Zum Schutz der Umwelt kan der ALL-SG8616PMJ-10G -Switch Ethernet PoE neben seiner Fähigkeit, hohe Wattleistungen zu liefern, die Stromversingung effiktiv steuern. The PoE schedule function helps to activate or deactivate the PoE power supply for each PoE port at certain intervals, and is a powerful function that helps KMUs or companies to save electricity and money. The intelligent PoE-Switch ALL-SG8616PMJ-10G allows each connected PoE-IP-Camera or PoE-Wireless-Access-Points to be restarted every week at a specific time. This way, the risk of a crash of the IP camera or the AP due to a buffer overflow is reduced. Redundant Ring with fast recovery for critical network applications The ALL-SG8616PMJ-10G supports redundant ring technology and has a strong, fast self-recovery capability to prevent interruptions and external interference. The advanced ITU-T G.8032 ERPS technology, the Spanning Tree Protocol (802.1s MSTP) and a redundant power supply system are integrated into the customer's industrial automation network to improve system reliability and operating time in rough factory settings. In a particular simple ring network, the restoration time of the data connection can be up to 20 ms. 1588-Time protocol for industrial computer networks The ALL-SG8616PMJ-10G is ideal for telecommunications and carrier Ethernet applications and supports MEF service provisioning and timing-over-packet solutions for IEEE 1588 and synchronous Ether With the JSON API, the ADMIN can create a special user and give this user permission for JSON. We have concentrated on 2 functions that we consider important. Support L2+ managed function, Support IPV4/IPV6 management Support layer3 soft routing (weak three tier) forwarding, Support different network segments, communication between different VLAN Support static routing / default routing 128, 1024 ARP software", "L2+ managed commercial PoE fiber switch is equipped with 12*10/100/1000Base-T RJ45 ports and 4*1/10G SFP+ fiber slot ports", "Port 1-8 support IEEE 802.3af/at standard POE, single port POE power up to 30W", "Port 9-12 can support 1GB Gigabit LAN", "Port 13-16 can support 1GB SFP slots or 10GB SFP+ slots", "Supports various PoE management functions including PoE Schedule, PoE PD Alive, etc", "Supports SFP DDM & cable diagnostics", "Supports G.8032 ERPS, self-detection time <20ms", "Support 1588 V2.0, transparent clock", "Supports port aggregation", "4KV surge protection, 6KV contact/8KV air ESD protection", "19 inch angle included, dimensions: 280x214x43mm", "PoE ON/OFF & LAN Port Enabled/Disabled (for switches with PoE function)", "LAN Port Enabled/Disabled (for switches without PoE)"]
