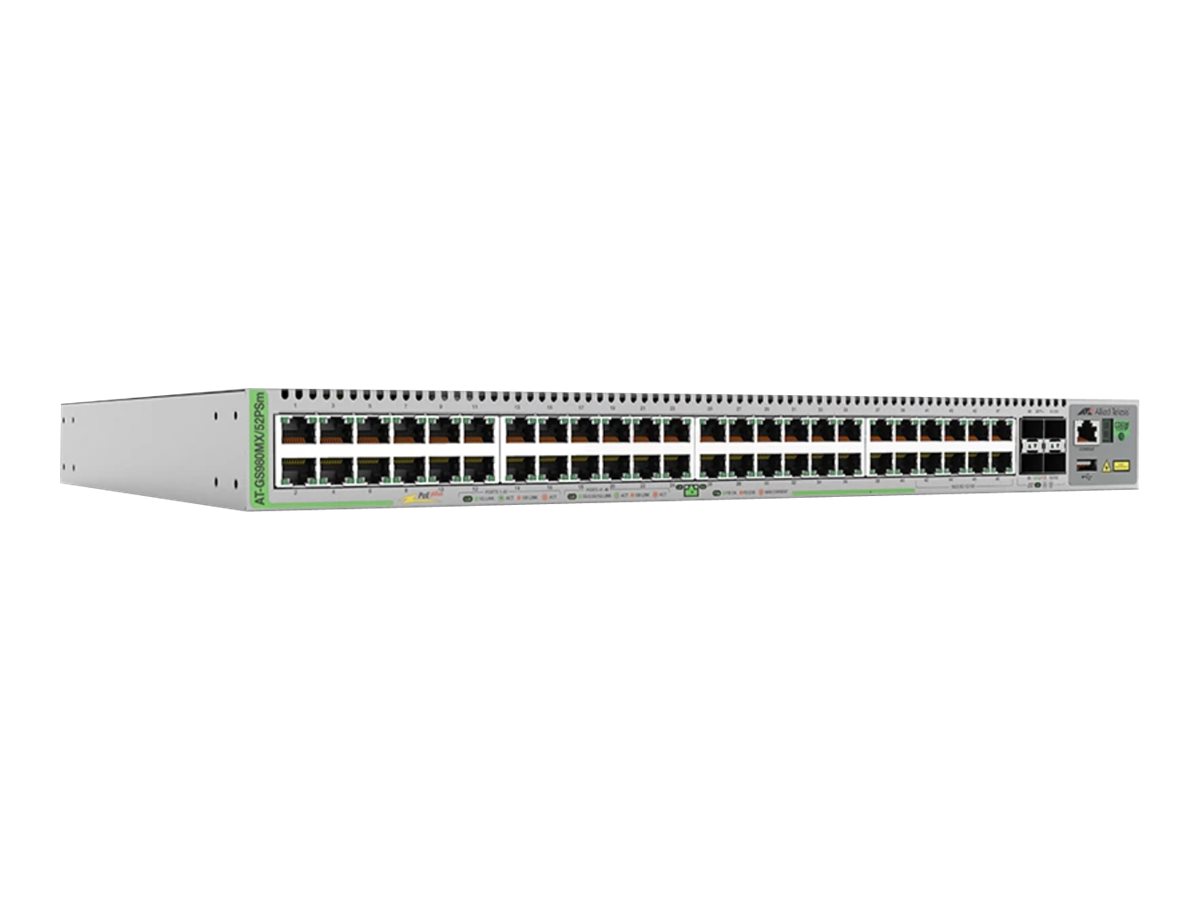

Allied Telesis CentreCOM AT-GS980MX/52PSM Switch 52-porte Gigabit PoE+
€1995,81
Allied Telesis CentreCOM AT-GS980MX/52PSM - Switch - L3 - Administreret - 40 x 10/100/1000 (PoE+) + 8 x 100/1000/2.5G/5G (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ - monterbar på stativ - PoE+ (370 W)
Availability: In stock
Secure payment · Fast delivery
EAN:0767035218434Brand:
Allied Telesis CentreCOM AT-GS980MX/52PSM - Switch - L3 - Administreret - 40 x 10/100/1000 (PoE+) + 8 x 100/1000/2.5G/5G (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ - monterbar på stativ - PoE+ (370 W)
Specifications
Specifications
| Produktbeskrivelse | Allied Telesis CentreCOM AT-GS980MX/52PSM - switch - 52 porte - Administreret - monterbar på stativ |
| Enhedstype | Switch - 52 porte - L3 - Administreret - kan stables |
| Pakningstype | Monterbar på stativ 1U |
| Undertype | Gigabit Ethernet |
| Porte | 40 x 10/100/1000 (PoE+) + 8 x 100/1000/2.5G/5G (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| PoE-budget | 370 W |
| Præstation | Skift af stofbåndbredde: 240 Gbps<br>Videresendelseshastighed: 179 Mpps<br>Latens (10 Gbps): 1.67 µs<br>Latens (5 Gbps): 5.06 µs<br>Latens (2,5 Gbps): 7.51 µs<br>Latens (1 Gbps): 7.75 µs<br>Latens (100 Mbps): 8.34 µs |
| Kapacitet | Bufferkapacitet (MB): 1.5<br>Konfigurerbare VLAN'er: 4094<br>Prioritetskøer: 8 |
| MAC adresse table størrelse | 16K indtastningshukommelse |
| Jumborammesupport | 10KB |
| Routingprotokol | RIP, RIP-2, IGMPv2, IGMP, IGMPv3, statisk IPv4 routing, statisk IPv6 routing, MLDv2, MLD, CIDR |
| Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, SMTP |
| Egenskaber | Datatransport, understøttet af ARP, understøttet af OCSP, VLAN-understøttet, IGMP snooping, portspejling, DiffServ understøttet, MAC-adresse-filtrering, SNTP-understøttet, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, MDL snooping, DAI, PVST+, STP Root Guard, RSPAN, SNMP fælde, DHCP klient, MIB, MAC adresse lockout, GVRP, NAC, løkkeforebyggelse, portisolering, SP, 802.1x autentificering, VoIP support, IP-kildebekyttelse, EPSRing, Logical Link Control, ICMP, CPP, SCP, AMF, BIST, DDM, MAC-adresseautentificering, NTP, Active Fiber Monitoring, AAA, IGMP-forespørger, VLAN-spejling, Voice VLAN, LLDP-MED, Private VLAN, stormbeskyttelse, Guest VLAN, WRR, tilbageløkke-detektion, VLAN Tagging, BPDU Guard |
| Overensstemmelsesstandarder | IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.1AX |
| Effekt | AC 100-240 V (50/60 Hz) |
| Dimensioner (B x D x H) | 44.1 cm x 42.1 cm x 4.4 cm |
| Vægt | 6.1 kg |
| Lokalisering | Europa |
| Authentication Method | RADIUS, X.509 certificates, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Capacity | Buffer capacity (MB): 1.5 | Configurable VLANs: 4094 | Priority queues: 8 |
| Compliant Standards | FCC Class A certified, UL, cUL, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, RoHS, UL 60950-1, EN 60950-1, EN 60825-1, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, China RoHS, EN 55022 Class A |
| Device Type | Switch - 52 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Encryption Algorithm | DES, Triple DES, RSA, MD5, SHA-1, SSL 3.0, SSL 2.0, PEAP, TTLS, DSA, ECDSA, AES-ECB, PKI, 128-bit AES, 192-bit AES, 256-bit AES, AES-CBC, SHA-2, 256-bit SHA-2, 384-bit SHA-2, 512-bit SHA-2, TLS 1.2, AES-CFB, AES-OFB, RNG, 224-bit SHA-2, CCM, CMAC, GC |
| Features | Flow control, ARP support, OCSP support, VLAN support, IGMP snooping, port mirroring, DiffServ support, MAC address filtering, SNTP support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, A |
| Flash Memory | 256 MB |
| Jumbo Frame Support | 10KB |
| MAC Address Table Size | 16K entries |
| Max Units In A Stack | 4 |
| Performance | Switching fabric bandwidth: 240 Gbps | Forwarding rate: 179 Mpps | Latency (10 Gbps): 1.67 µs | Latency (5 Gbps): 5.06 µs | Latency (2.5 Gbps): 7.51 µs | Latency (1 Gbps): 7.75 µs | Latency (100 Mbps): 8.34 µs |
| PoE Budget | 370 W |
| Ports | 40 x 10/100/1000 (PoE+) + 8 x 100/1000/2.5G/5G (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ |
| RAM | 1 GB DDR3 SDRAM |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, SMTP |
| Routing Protocol | RIP, RIP-2, IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD, CIDR |
| Subtype | Gigabit Ethernet |
| Interfaces | 40 x 10/100/1000 Base-T (PoE+) RJ-45 | 8 x 100/1000/2.5G/5G (PoE+) RJ-45 | 4 x 1/10Gbit LAN SFP+ |
| Installed Qty | 1 |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Localization | Europe |
| Software Included | Alliedware Plus |
| Depth | 42.1 cm |
| Height | 4.4 cm |
| Weight | 6.1 kg |
| Width | 44.1 cm |
| Shipping Depth | 63.2 cm |
| Shipping Height | 12.8 cm |
| Shipping Weight | 8.1 kg |
| Shipping Width | 56.3 cm |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -25 °C |
