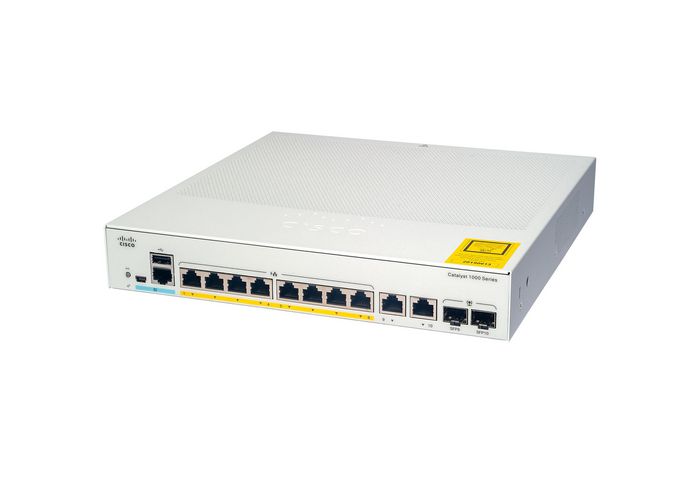

Cisco Catalyst 1000-8T-2G-L Network Switch, 8 Gigabit Ethernet (GbE) Ports, 2x 1G SFP/RJ-45 Combo Ports, Fanless Operation, Enhanced Limited Lifetime Warranty (C1000-8T-2G-L)
The Cisco Catalyst 1000-8T-2G-L Network Switch is an enterprise-class fixed managed Gigabit Ethernet Layer 2 switch designed for small businesses and branch offices. This simple, flexible and secure network switch is ideal for critical IoT (Internet of Things) deployments. It operates on Cisco IOS Software and features a CLI (command-line interface) as well as an intuitive web user interface.
Availability: In stock
The Cisco Catalyst 1000-8T-2G-L Network Switch is an enterprise-class fixed managed Gigabit Ethernet Layer 2 switch designed for small businesses and branch offices. This simple, flexible and secure network switch is ideal for critical IoT (Internet of Things) deployments. It operates on Cisco IOS Software and features a CLI (command-line interface) as well as an intuitive web user interface.
Specifications
| Forwarding rate | 14.88 Mpps |
| Jumbo frames | 10240 |
| Jumbo frames support | Yes |
| MAC address table | 16000 entries |
| Number of static routes | 16 |
| Static route | Yes |
| Switching capacity | 20 Gbit/s |
| LED indicators | Yes |
| Market segment | Business |
| Product colour | Grey |
| Products per master (outer) case | 1 pc(s) |
| Quantity per pack | 1 pc(s) |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| MIB support | Y |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Traffic classification | Yes |
| Web-based management | Yes |
| IPv4 multicast entries | 1024 |
| IPv6 multicast entries | 1024 |
| Multicast support | Yes |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10, 100, 1000 |
| Full duplex | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1ab, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Number of VLANs | 256 |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Non-operating altitude | 0 - 4500 m |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 5 - 90 % |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -25 - 70 °C |
| Packaging content | C1000-8T-2G-L Switch, Accessory Kit, 1 printed document |
| Built-in processor | Yes |
| Flash memory | 256 MB |
| Internal memory | 512 MB |
| Mean time between failures (MTBF) | 2171669 h |
| Memory type | DRAM |
| Processor frequency | 800 MHz |
| Processor model | ARM7 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
| Console port | RJ-45/Mini-USB |
| USB 2.0 ports quantity | 1 |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 110 - 220 V |
| Input current | 0.13 - 0.22 A |
| Power consumption (max) | 14,9 W |
| Power consumption (typical) | 14,2 W |
| Power plug type | Type C |
| Power over Ethernet (PoE) | No |
| Management protocols | SNMP |
| Access Control List (ACL) | Yes |
| Authentication | Web-based authentication |
| Authentication type | RADIUS |
| BPDU filtering/protection | Yes |
| DHCP features | DHCP snooping |
| IGMP entries | 1024 |
| IGMP snooping | Yes |
| Loop protection | Yes |
| SSH/SSL support | Yes |
| Products per shipping (inner) case | 1 pc(s) |
| Brand Name | Cisco |
| Warranty | 1 year |
