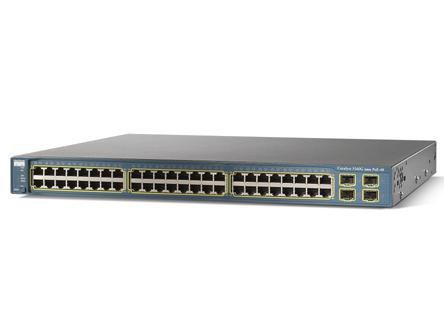

3560 Series 48 Port Switch
€59,31
3560 Series 48 Port Switch
Availability: In stock
Secure payment · Fast delivery
EAN:WS-C3560-48TS-S-RFBBrand:
3560 Series 48 Port Switch
Specifications
Specifications
| Jumbo frames support | Yes |
| MAC address table | 12000 entries |
| Maximum data transfer rate | 0,1 Gbit/s |
| Store-and-forward | Yes |
| Supported data transfer rates | 10/100 Mbps |
| Switching capacity | 32 Gbit/s |
| Certification | FCC 15 A, EN 55022: 1998 (CISPR22), EN 55024: 1998 (CISPR24), VCCI A, AS/NZS 3548 A, CE, CNS 13438 A, MIC |
| Form factor | 1U |
| Product colour | Turquoise |
| Rack mounting | Yes |
| Safety | UL 60950, CAN/CSA C22.2, TUV/GS to EN 60950:2000, CB to IEC 60950, NOM-019-SCFI, CE |
| Stackable | No |
| Management features | MIB support Y Quality of Service (QoS) support Yes Switch layer L2 Switch type Managed Web-based management Yes |
| MIB support | Y |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Web-based management | Yes |
| Multicast features | Multicast support Yes |
| Multicast support | Yes |
| 10G support | No |
| Broadcast storm control | Yes |
| Copper ethernet cabling technology | 100Base-TX, 10Base-T |
| Flow control support | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Operating altitude | 0 - 3049 m |
| Operating relative humidity (H-H) | 10 - 85 % |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Acoustic pressure emissions | 48 dB |
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 445 x 301 x 44 mm |
| Management platform | Cisco IOS CLI, Cisco Network Assistant, SAA |
| Packet transfer speed | 13.1 mpps |
| Power requirements | 100-240 VAC, 3.0-1.5A, 50-60Hz |
| Performance | Flash memory 32 MBInternal memory 128 MBMean time between failures (MTBF) 173400 h |
| Flash memory | 32 MB |
| Internal memory | 128 MB |
| Mean time between failures (MTBF) | 173400 h |
| Ports & interfaces | Basic switching RJ-45 Ethernet ports quantity 48 SFP module slots quantity 4 SFP/SFP+ slots quantity 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| SFP module slots quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
| Power | Power consumption (typical) 65 W |
| Power consumption (typical) | 65 W |
| Power over Ethernet (PoE) | No |
| Protocols | Management protocols IGMP, RMON, SNMP, Telnet |
| Management protocols | IGMP, RMON, SNMP, Telnet |
| Security | Access Control List (ACL) Yes DHCP features DHCP server IGMP snooping Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| IGMP snooping | Yes |
| Vendor information | Brand Name Cisco Warranty 1 År |
| Brand Name Cisco | Warranty 1 År |
| Brand Name | Cisco |
| Warranty | 1 År |
| Kategorier | Hovedkategori Network Underkategori Wired Network Underkategori Network Switches Underkategori Network Switches |
| Hovedkategori | Network |
| Underkategori | Network Switches |
