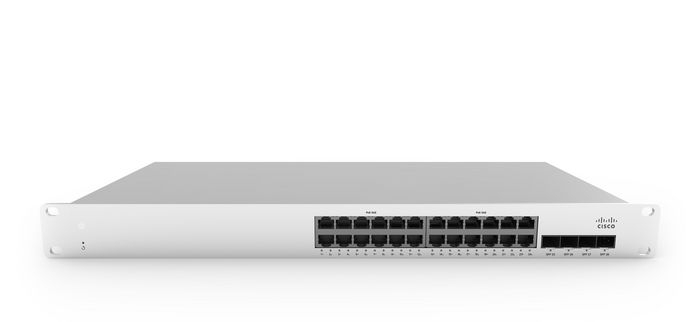

Cisco 24x 10/100/1000BASE-T RJ-45, 4x 1GbE SFP, 128 Gbps, 80G, 43.8x484.6x250 mm
Cisco Meraki MS210 switches provide Layer 2 access switching for branch and small campus locations. The MS210 includes 4 x 1G SFP uplinks and physically stacks with the MS225 to gain access to its 10G uplink. This family also supports an optional, rack-mountable PSU (Cisco RPS-2300) for power redundancy requirements Cisco Meraki switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches. The Meraki MS is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there’s no need for complicated configuration files or even direct physical access to the switch. Meraki’s centralized management gives administrators deep visibility into the network and how it’s used. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search. INDUSTRY
Availability: In stock
INDUSTRY LEADING CLOUD MANAGEMENT Cisco Meraki MS210 switches provide Layer 2 access switching for branch and small campus locations. The MS210 includes 4 x 1G SFP uplinks and physically stacks with the MS225 to gain access to its 10G uplink. This family also supports an optional, rack-mountable PSU (Cisco RPS-2300) for power redundancy requirements Cisco Meraki switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches. The Meraki MS is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there’s no need for complicated configuration files or even direct physical access to the switch. Meraki’s centralized management gives administrators deep visibility into the network and how it’s used. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search. INDUSTRY LEADING CLOUD MANAGEMENT Cloud management has a number of benefits that make it easier to build networks large and small: - True zero-touch device provisioning. - Virtual stacking: manage up to thousands of ports from a single pane of glass. - Application layer visibility with automatic operating system, client, and hostname fingerprinting. - Powerful Live Tools such as packet capture and cable test to isolate and troubleshoot network issues. - Alerts upon power loss, downtime, or configuration changes. - Role-based administration and automatic, scheduled firmware upgrades over the web. - Regular feature updates and enhancements delivered on demand from the Meraki cloud.
Specifications
| Forwarding rate | 41.67 Mpps |
| Jumbo frames | 9578 |
| Jumbo frames support | Yes |
| MAC address table | 16000 entries |
| Static route | Yes |
| Switching capacity | 128 Gbit/s |
| Certification | CSA-US, FCC, IC, CE, RCM, RoHS |
| Form factor | 1U |
| Product colour | Aluminium |
| Rack mounting | Yes |
| Stackable | Yes |
| Quality of Service (QoS) support | Yes |
| Switch type | Managed |
| System event log | Yes |
| Web-based management | Yes |
| Multicast support | Yes |
| 10G support | No |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.11w, IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ad |
| Number of VLANs | 4094 |
| Port mirroring | Yes |
| Spanning tree protocol | Yes |
| Virtual LAN features | Voice VLAN |
| VLAN support | Yes |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Screws included | Yes |
| Firmware upgradeable | Yes |
| Mean time between failures (MTBF) | 391648 h |
| Physical stacking (units) | 8 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 4 |
| AC input frequency | 47/63 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 448 W |
| Redundant power supply (RPS) support | Yes |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 370 W |
| Switching protocols | LLDP, CDP, RSTP, STP |
| Access Control List (ACL) | Yes |
| Authentication | MAC-based authentication |
| Authentication type | RADIUS |
| BPDU filtering/protection | Yes |
| DHCP features | DHCP client, DHCP relay, DHCP snooping |
| IGMP snooping | Yes |
| Password protection | Yes |
| Security algorithms | SNMP |
| Brand Name | Cisco |
| Warranty | 1 year |
