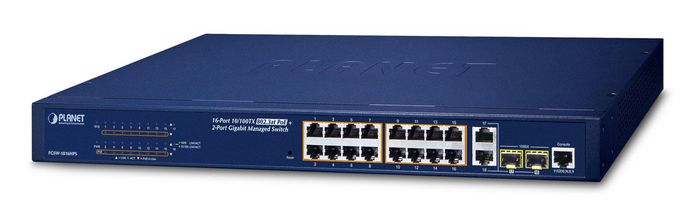

PLANET’s newly-revised FGSW-1816HPS Layer 2 PoE+ Managed Switch is designed for enterprises and industries where a network of PDs can be centrally managed. The Switch’s management functions have been enhanced to include intelligent PoE management, IPv6 management, ACL, GVRP, and more. Cost-optimized Managed PoE+ Switch with L2/L4 Switching and Security PLANET FGSW-1816HPS is an ideal Managed PoE+ Switch which provides cost-effective advantage to local area network and is widely accepted in the SMB office network. It offers intelligent Layer 2 data packet switching and management functions, friendly web user interface and stable operation. The model complies with IEEE 802.3at Power over Ethernet Plus (PoE+) at an affordable price; the FGSW-1816HPS is equipped with 16 10/100BASE-TX Fast Ethernet ports and 2 Gigabit TP/SFP combo interfaces with inner power system. With its 16 Fast Ethernet ports integrated with 802.3at PoE+ injector function and total power budget of up to 240 watts, it offers a rack-mountable, affordable, safe and reliable power solution for SMBs deploying Power over Ethernet networks, or requiring enhanced data security and network traffic management. Solution for IPv6 Networking With the support for IPv6/IPv4 protocol, and easy and friendly management interfaces, the FGSW-1816HPS is the ideal choice for IP surveillance, VoIP and wireless service providers to connect with the IPv6 network. It also helps SMBs to step in the IPv6 era with the lowest investment and without having to replace the network facilities even though ISPs establish the IPv6 FTTx edge network. Built-in Unique PoE Functions for Surveillance Management As a managed PoE Switch for surveillance network, the FGSW-1816HPS features the following intelligent PoE management functions: - PD Alive Check - PoE Port Sequence - PoE Schedule Intelligent Powered Device Alive Check The FGSW-1816HPS can be configured to monitor a connected PD status in real time via ping action. Once the PD stops working and it is without response, the FGSW-1816HPS will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source, thus reducing administrator management burden. PoE Port Sequence To prevent all the PoE ports of the FGSW-1816HPS from being active at the same time when the Switch has booted up, the PoE ports of the FGSW-1816HPS can be configured to allow each port to be activated at an interval time. In addition, the “Delay” setting is to delay power feeding on each port when the FGSW-1816HPS has completely booted up. PoE Schedule for Energy Saving Besides being used for IP surveillance, the FGSW-1816HPS is certainly applicable to build any PoE network including VoIP and wireless LAN. Under the trend of energy saving worldwide and contributing to the environmental protection on the Earth, the FGSW-1816HPS can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs and enterprises save energy and budget. Ethernet Data Transmission Distance Extension In the “Extended” operation mode, the FGSW-1816HPS operates on a per-port basis at 10Mbps duplex operation but can support PoE power output over a distance of up to 250 meters overcoming the 100 meters limit on Ethernet UTP cable. Robust Layer 2 Features The FGSW-1816HPS can be programmed for advanced switch management functions, such as Multiple Spanning Tree Protocol (MSTP), BPDU filtering, BPDU Guard, dynamic port link aggregation, IGMP/MLD snooping, DHCP relay agent, loop detection and GVRP, voice VLAN and the Link Layer Discovery Protocol (LLDP). The Layer 2 protocol included is to help discover basic information about neighboring devices in the local broadcast domain. Other features included are the port-based/802.1Q VLAN and Q-in-Q VLAN, Layer 2/4 QoS, port mirroring, broadcast storm control and bandwidth control. Enhanced Security and Traffic Control The FGSW-1816HPS offers the comprehensive Layer 2 to Layer 4 access control list (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP/MAC address or defined typical network applications. The FGSW-1816HPS also provides DHCP Snooping, ARP Inspection and MAC Verification functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. Also included are per port MAC/IP address binding and MAC address binding. The network administrator can now build highly-secure corporate networks with considerably less time and effort than before. Cybersecurity Network Solution to Minimize Security Risks
