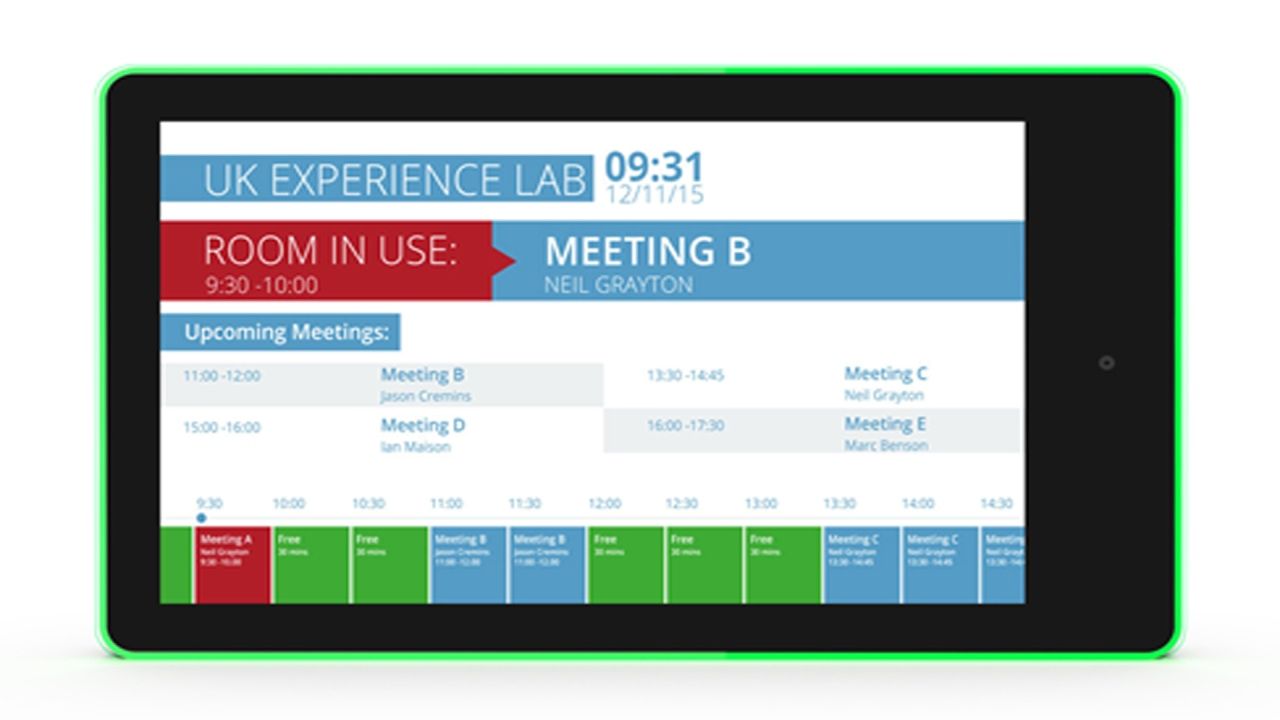

ALLNET meeting room RGB LED tablet 10 inch RK3288 Android 10 and NFC
ALLNET Meeting Room LED Tablet 10 Inch RK3288 NFC/RFID (NXP Mifare, Desfire) Including power supply and integrated wall holder with theft protection. RGB LED for display e.g. of warning signals, occupancy of meeting rooms, home automation with API. The NFC also makes time recording very easy
Availability: In stock
["ALLNET Meetingraum LED Tablet 10 Zoll RK3288 NFC/RFID (NXP Mifare, Desfire) Including power supply and integrated wall holder with theft protection. RGB LED for display e.g. von Warnsignalen, Belegung von Meetingräumen, Hausautomation mit API. Durch das NFC lassen sich auch sehr gut Zeiterfassungsterminals umsetzen oder Info Terminals mit ID, wie z.B. Multipartien Wohnanlagen. Currently tested Android Time Terminal Software: Die API/SDK für NFC/RFID und LED stellen wir gerne auf Anfrage zur Verfügung", "Full NFC Forum compliance with small form factor antenna", "Embedded NFC firmware that offers all NFC protocols as a pre-integrated feature", "Direct connection to the main host or microcontroller, through physical I2C bus and NCI protocol", "Ultra-low power consumption in polling loop mode", "Highly efficient integrated power management unit (PMU)", "Supported RF protocols – NFCIP-1, NFCIP-2 protocol (see [8] and [11]) – ISO/IEC 14443A, ISO/IEC 14443B PICC, NFC Forum T4T modes via host interface (see [3]) – NFC Forum T3T via host interface – ISO/IEC 14443A, ISO/IEC 14443B PCD designed according to NFC Forum digital protocol T4T platform and ISO-DEP – FeliCa PCD mode – MIFARE PCD encryption mechanism (MIFARE Classic 1K/4K) – NFC Forum tag 1 to 5 (MIFARE Ultralight, Jewel, Open FeliCa tag, MIFARE DESFire) (see [1]) – ISO/IEC 15693/ICODE VCD mode (see [9]) For further information, please refer to the NFC data sheet"]
Specifications
| Arbeitsspeicher (RAM) | 4 GB |
| Betriebssystem | Android 10 |
| Bluetooth | ja |
| Chipset | RK3288 |
| Diagonale | 10 Zoll |
| Einsatzbereiche | Indoor |
| Farbe Displayrand | schwarz |
| Color casing | schwarz |
| Hauptspeicher | 16 GB |
| IP Schutzklasse | IP 20 |
| Kamera | ja |
| Mobilfunk | nein |
| Montageart | integrated holder |
| NFC&RFID | 13,56MHz |
| Produktart | Tablet |
| Power supply | PoE & power supply |
| Touchscreen | kapazitiv |
| Video Eingang | nein |
| WLAN | 2,4&5 GHz |
| PDS Zeit | funktioniert, Configfile muss aber manuell eingespielt werden, Kamera wir nicht angesprochen |
| AIDA-Zeit | According to the manufacturer, it works with our item numbers 174715/174716/174717/174888 and 182897 |
| System | CPU |
| RAM | 2GB |
| Internal memory | 16GB |
| Operation system | Android 8.1/10 |
| Display | Touch screen |
| Panel | 10.1"LCD panel |
| Resolution | 1280*800 |
| Active area | 217.4(H)x136.4mm(V) |
| Display mode | Normally black ,IPS |
| Viewing angle | 85/85/85/85(L/R/U/D) |
| Contrast ratio | 800 |
| Luminance | 280cd/m2 |
| Aspect Ratio | 16:10 |
| Network | WiFi |
| Ethernet | 100M/1000M ethernet |
| Buletooth | Bluetooth 4.0 |
| Interface | Card slot |
| USB | USB Host |
| Micro USB | Micro USB OTG |
| RJ45 with POE | RJ45 |
| POE | IEEE802.3af/at |
| Power jack | DC power input |
| Earphone | 3.5mm earphone |
| Media play | Video format |
| Audio format | MP3/WMA/AAC etc. |
| Photo | jpeg, png, etc. |
| Other | VESA |
| NFC | NFC with 13.56M frequency )/RFID NXP Desfire |
| Camera | 2.0M/P,Front camera |
| Speaker | 2*1.5W |
| LED Light bar | LED light bar with RGB and mixed color |
| Working temp | 0--40degree |
| Certificates | CE/FCC/RoHS |
| Language | Multi-language |
| Accessories | Adapter |
| User manual | Yes |
| L | W |
| 275.36mm | 170.36mm |
| Net(kg) | 0.74KG |
| NFC&RFID | 13,56MHz |
