Epson EB-685W 3LCD-projektor WXGA VGA HDMI Composite video MHL
€1579,59
Epson EB-685W - 3LCD-projektor - 3500 lumen (hvid) - 3500 lumen (farve) - WXGA (1280 x 800) - 16:10 - 720p - LAN - grå, hvid
Availability: In stock
Secure payment · Fast delivery
EAN:8715946605210Categories:, , Brand:
Epson EB-685W - 3LCD-projektor - 3500 lumen (hvid) - 3500 lumen (farve) - WXGA (1280 x 800) - 16:10 - 720p - LAN - grå, hvid
Specifications
Specifications
| Produktbeskrivelse | Epson EB-685W - 3LCD-projektor - LAN - grå, hvid |
| Enhedstype | 3LCD-projektor - 720p |
| Farve | Grå, hvid |
| Indbygget udstyr | Højttaler |
| Lysstyrke (hvid) | 3500 lumen |
| Lysstyrke (farve) | 3500 lumen |
| Kontrastforhold | 300:1 / 14000:1 (dynamisk) |
| Opløsning | WXGA (1280 x 800) |
| Native Aspect Ratio | 16:10 |
| Farvesupport | 1,07 milliarder farver |
| Lampetype | 250 Watt |
| Videoindgang | RGB, sammensat video LAN |
| Højttalere | Højtaler(e) - integreret |
| Effekt | AC 230V (50 - 60 Hz) |
| Strømforbrug ved drift | 354 Watt |
| Dimensioner (B x D x H) | 36.7 cm x 40 cm x 14.9 cm |
| Vægt | 5.7 kg |
| Producentgaranti | 5 year warranty |
| Built-in Devices | Speaker |
| Device Type | 3LCD projector - 720p |
| Enclosure Color | Gray, white |
| Networking | Ethernet |
| Brightness (Color) | 3500 lumens |
| Brightness (Reduced) | 2900 lumens |
| Brightness (White) | 3500 lumens |
| Color Support | 1.07 billion colors |
| Contrast Ratio | 14.000 : 1 |
| Digital Zoom Factor | 1.35x |
| Features | Auto brightness adjustment, Automatic input selection, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Dynamic lamp control, Easy OSD pre-setting, Home Screen, Long lamp life, Split-Screen-Function, Wireless LAN capable |
| Image Size | 60 inches - 100 inches |
| Lamp Type | 250 Watt |
| Projection Distance | 0.4 m - 0.6 m |
| Resolution | WXGA, 1280 x 800, 16:10 |
| Throw Ratio | 0.28:1 |
| Focus Type | Manual |
| Horizontal Keystone Correction | -3 / +3 |
| Keystone Correction Direction | Horizontal, vertical |
| Lens Aperture | F/1.6 |
| Vertical Keystone Correction | -3 / +3 |
| Analog Video Signal | RGB, composite video |
| LAN and Wireless Image Transferring Protocols | Wired LAN |
| Video Interfaces | VGA, HDMI, composite video, MHL |
| Output Power / Channel | 16 Watt |
| Sound Output Mode | Mono |
| Speakers | 1 x mixed channel |
| Type | Integrated |
| Interfaces | USB 2.0 Type A, USB 2.0 Type B, RS-232C, HDMI in (3x), Composite in, RGB in (2x), RGB out, Stereo mini jack audio out, Stereo mini jack audio in (3x), Microphone input, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11b/g/n (WiFi 4) (optional), VGA in (2x), VGA out, MHL |
| Cables Included | 1 x USB cable |

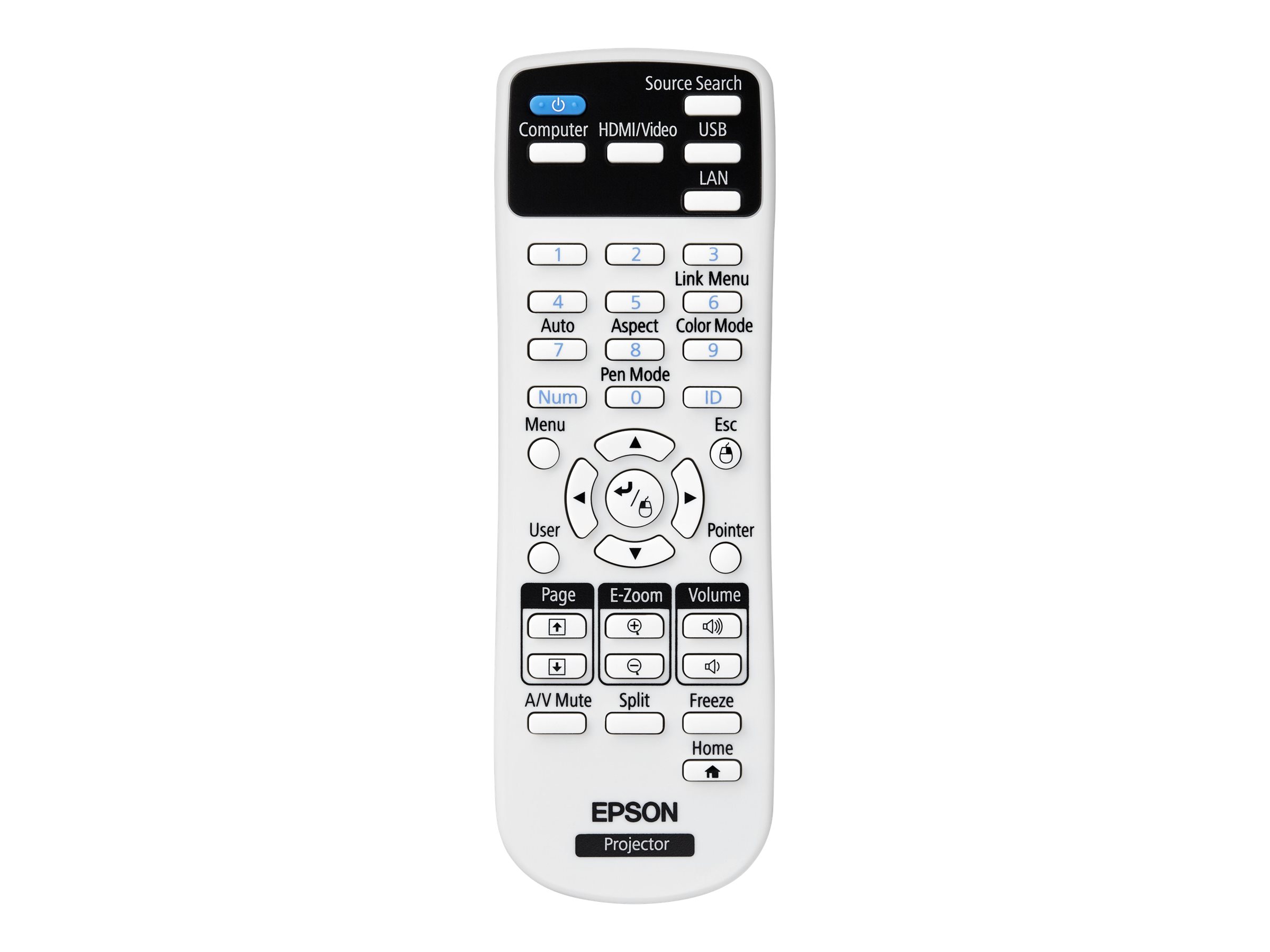

| Included Accessories | Wireless remote control |
| Mounting Kit | Included |
| Security Features | Security lock slot (cable lock sold separately), password protection |
| TCO Certified | Yes |
| Power Consumption Operational | 354 Watt |
| Power Consumption Stand by | 0.39 Watt |
| Power Source | AC |
| Voltage Required | AC 230 V (50 - 60 Hz) |
| Software Included | EasyMP Network Projection, EasyMP Monitor, EasyMP Multi PC Projection |
| Depth | 40 cm |
| Height | 14.9 cm |
| Weight | 5.7 kg |
| Width | 36.7 cm |
| Service & Support | Limited warranty - 5 years - carry-in |
| Humidity Range Operating | 20 - 80% |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 5 °C |
| Sound Emission | 35 dBA |
| Sound Emission (Economic Mode) | 30 dBA |
| Projection System | 3LCD Technology |
| LCD Panel | 0,59 inch with D9 |
| Colour Light Output | 3.500 lumen- 2.900 lumen (economy) in accordance with IDMS15.4 |
| White Light Output | 3.500 lumen - 2.900 lumen (economy) in accordance with ISO 21118:2012 |
| High Definition | HD ready |
| Aspect Ratio | 16:10 |
| Light source | Lamp |
| Lamp | 250 W, 5.000 h durability, 10.000 h durability (economy mode), 9.000 h durability (economy mode) |
| Keystone Correction | Manual vertical: ± 3 °, Manual horizontal ± 3 ° |
| Colour Processing | 10 Bits |
| 2D Vertical Refresh Rate | 100 Hz - 120 Hz |
| Colour Reproduction | upto 1.07 billion colours |
| Projection Ratio | 0,28 - 0,37:1 |
| Zoom | Digital, Factor: 1 - 1,35 |
| Lens | Optical |
| Projection Distance Wide | 0,4 m ( 60 inch screen) |
| Projection Distance Tele | 0,6 m ( 100 inch screen) |
| Projection Lens F Number | 1,6 |
| Focal Distance | 3,7 mm |
| Focus | Manual |
| Offset | 5,8 : 1 |
| USB Display Function | 3 in 1: Image / Mouse / Sound |
| Epson iProjection App | Ad-Hoc / Infrastructure |
| Security | Kensington lock, Password lock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection |
| 2D Colour Modes | Dynamic, Cinema, Presentation, sRGB, Blackboard |
| Interactivity | No |
| Video Colour Modes | Blackboard, Dynamic, Presentation, Sports, sRGB, Theatre, Whiteboard |
| Projector control | via: AMX, Crestron (Network), Control4 |
| Energy Use | 354 W, 309 W (economy), 0,37 W (standby) |
| Supply Voltage | AC 100 V - 240 V, 50 Hz - 60 Hz |
| Product dimensions | 367 x 400 x 149 mm (Width x Depth x Height) |
| Product weight | 5,7 kg |
| Noise Level | Normal: 35 dB (A) - Economy: 30 dB (A) - Eco2: 29 dB (A) |
| Temperature | Operation 5° C - 40° C, Storage -10° C - 60° C |
| Humidity | Operation 20% - 80%, Storage 10% - 90% If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling. If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance |
| Included Software | Epson Projector Management Software, EasyMP Multi PC Projection |
| Options | Air filter, Connection and control box, Document camera, External Speaker, USB extension cable, Wireless LAN unit |
| Compatible Operating Systems | Linux, Mac OS 10.10.x, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Ubuntu 14.10, Ubuntu 15.04, Ubuntu 15.10, Ubuntu 16.04 LTS, Windows 10, Windows 8, Windows 8.1 |
| Loudspeaker | 16 W |
| What's in the box | CD Manual, Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, Wall mounting bracket, Warranty card |
| Room Type / Application | Collaboration space / Classroom |
| Positioning | Wall Mounted |
| Colour | White / Grey |
| Warranty | 60 months Carry in or 8.000 h, Lamp: 60 months or 1.000 h |
