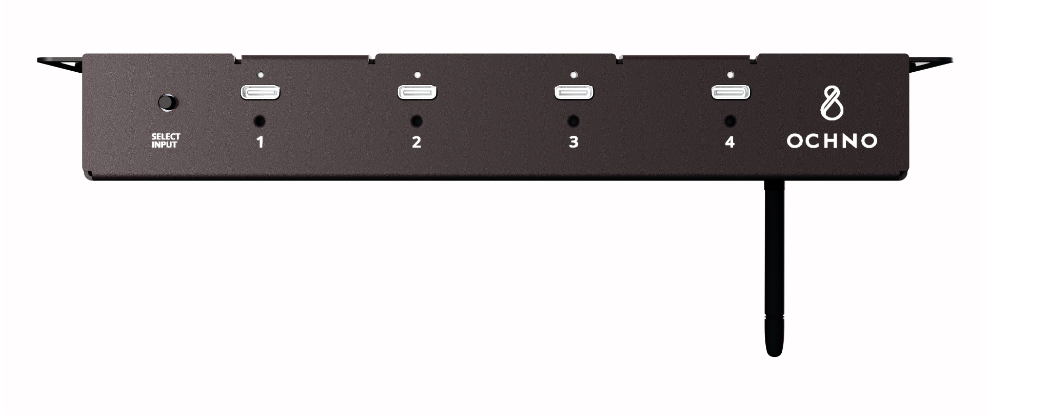

Next-gen Power Conference Dual screen support and long range USB-C for longer distance meeting rooms. The New Standard in Connectivity. Introducing the Ochno Power Conference 4, our next-generation solution for even more versatile meeting rooms. Enhanced daisy chaining capabilities allow seamless integration across multiple outlets, redefining connectivity for longer distance. FULL FEATURE LONG RANGE USB-C Adapt and solve the needs of any room size, from huddle spaces to large conference rooms Intelligent Switch BYOD / MTR Consistent and user-friendly in all BYOD and MTR rooms. Dual Screen Support Use dual screens with DisplayPort MST. Box contents Main unit, power adapter, mounting brackets for installing underside of table, manual in English. Warranty 3 years Dimensions 215 x 130 x 33 mm Weight 680g Certificates CE, FCC, ETL, RoHS, REACH Safety class IP20, 5%-80% RH operation. 5%-95% under transport Ambient temperature 5° – 40°C. Protection Over-current, over-voltage, over-temperature Port Specification WIFI Antenna 2.4 GHz WIFI connectivity to Ochno Operated management portal. RJ45 1 10/100 Mbit/s Ethernet connectivity to Ochno Operated management portal. RJ45 2 10/100/1000 Mbit/s Ethernet connectivity to Ethernet-sharing via active USB-C port. USB-A Downstream Ports 2 x USB 3.2 Gen 2 Ports. Speed up to 10 Gbps. 5V / 0.9A power supply. USB-C Downstream Ports 2 x USB 3.2 Gen 2 Ports. Speed up to 10 Gbps. 5V / 3A power supply. Power Delivery 3.0. USB-C Extension Port In addition to above: DP alt-mode 1.4 video output, HBR3, 2 or 4 DP lanes. Up to 4 x 8.1 Gbps video output. HDMI Out HDMI 2.1 video output. Max resolution 8k 60Hz. HDCP v2.3. FRL mode in 3 or 4 lanes,12 Gbps / lane. DC IN 20V / 10A power supply input. USB-C Input ports 4 x USB Type-C USB 3.2 Gen 2 Ports. Speed up to 10 Gbps. Up to 20V / 5A / 100W power supply. DP alt-mode 1.2 (HBR2)-1.4 (HBR3) video input. Port Functions  Management The Ochno Management Console allows for local management via a Windows/Mac app. Remote management is facilitated through Ochno Operated, while LAN management can be accessed via a local IP interface. USB-C Internet The network connected to the USB-C Internet port is shared via USB to the actively selected USB-C port, providing network access without the need for Wi-Fi. USB Pass-through The two USB-A ports and two USB-C ports typically connect USB devices. These devices become accessible to the computer connected to the currently selected USB-C input port. USB Pass-through on USB-C Upstream Ports In addition to the four downstream ports, the four USB-C upstream ports can also function as downstream ports, allowing for a total of seven downstream ports. LED Switch & IO All USB-C ports can connect to special Ochno devices, such as LED button switches and RS232 adapters. The USB-A ports are statically re-configured for this purpose, while the USB-C ports are dynamically re-configured. Extension The extension port can transmit both video and USB communication to a downstream USB-C device, such as another O-PC-4, an O-PC-4-NODE, a device supporting USB-C upstream, or a standard USB-C to HDMI adapter. Video Out The O-PC-4 features an internal DP MST hub, enabling dual video output. A Windows laptop can use the “Extend Desktop” option to display different content on each screen. For setups with two HDMI displays, a USB-C to HDMI adapter can be connected to the Extension port for a second HDMI output. Apple MacBooks will mirror the same image on both displays. Designed in Sweden. Made in UK
