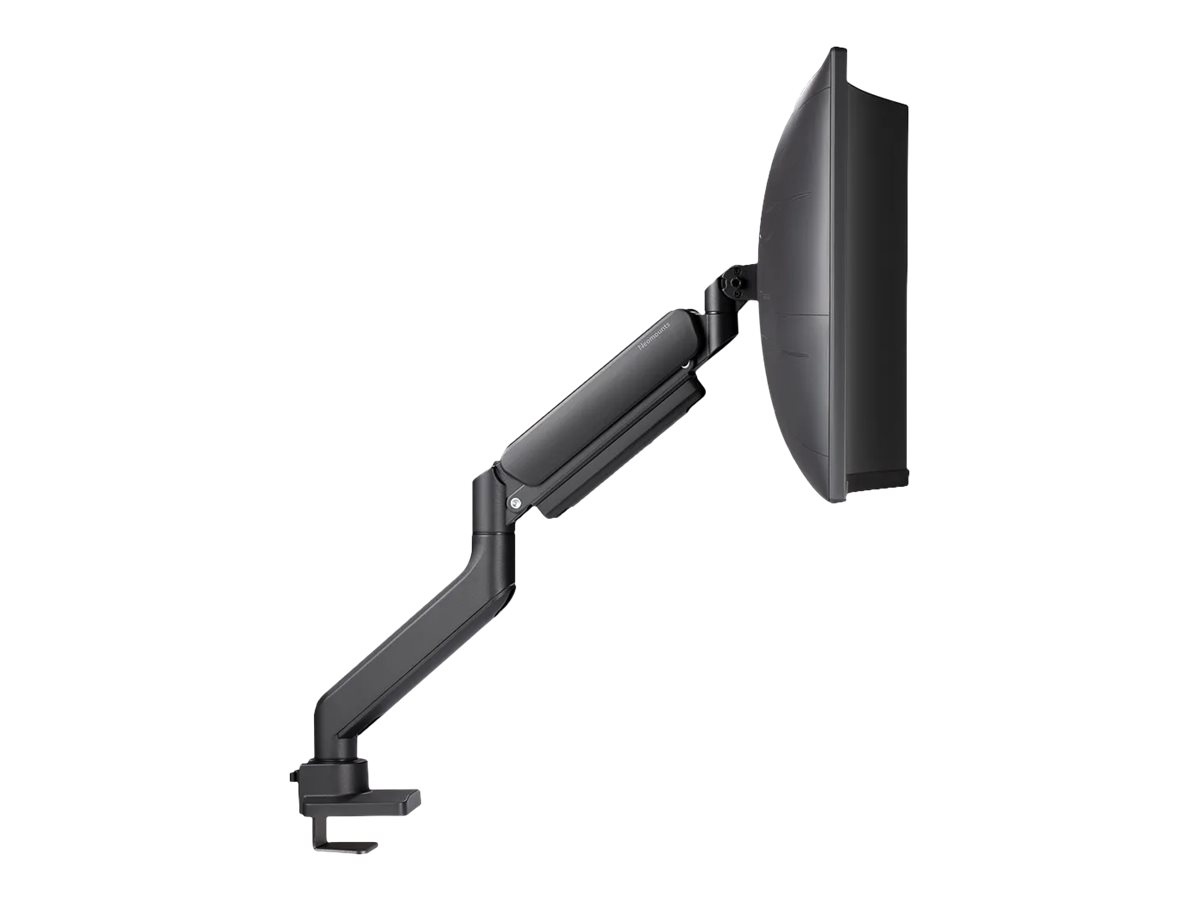

Neomounts DS70-450BL1 Monitor arm 17-42" - gas spring - Topfix - 180°-stop
€125,66
Neomounts DS70-450BL1 Monitor arm 17-42" - gas spring - Topfix - 180°-stop, Clamp/Grommet, 15 kg, 43.2 cm (17"), 106.7 cm (42"), 100 x 100 mm, Black
Availability: In stock
Secure payment · Fast delivery
EAN:8717371449469Categories:, , Brand:
Neomounts DS70-450BL1 Monitor arm 17-42" - gas spring - Topfix - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 15 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 106.7 cm (42"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -45 - 45°. Product colour: Black
Specifications
Specifications
| Maximum weight capacity | 15 kg |
| Minimum screen size | 43.2 cm (17") |
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 15 kg |
| Maximum weight capacity (per curved/ultra-wide display) | 11 kg |
| Maximum screen size | 106.7 cm (42") |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 100 x 100,75 x 75 mm |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 4.5 cm |
| Distance to the wall (min) | 10.8 cm |
| Distance to the wall (max) | 56.8 cm |
| Height adjustment | Yes |
| Height adjustment type | Gas spring |
| Height adjustment range | 261 - 555 mm |
| Adjustable depth | Yes |
| Depth adjustment range | 54 - 511 mm |
| Width adjustment | 92 cm |
| Tilt adjustment | Yes |
| Tilt angle range | -45 - 45° |
| Swivelling | Yes |
| Swivel angle | 180° |
| Swivel angle range | -90 - 90° |
| Rotating | Yes |
| Angle of rotation | 360° |
| Pivot angle | -180 - 180° |
| Cable management | Yes |
| Housing material | Steel |
| Product colour | Black |
| Width | 120 mm |
| Depth | 568 mm |
| Height | 653 mm |
| Weight | 3.98 kg |
| Package width | 280 mm |
| Package depth | 127 mm |
| Package height | 445 mm |
| Package net weight | 5.4 kg |
| Package weight | 5.1 kg |
| Mounting kit | Yes |
| Minimum weight | 1 kg |
| Width adjustment range | 0 - 920 mm |
| Warranty period | 5 year(s) |
| Doesn't contain | Plastic |
| Master (outer) case width | 460 mm |
| Master (outer) case length | 275 mm |
| Master (outer) case height | 580 mm |
| Master (outer) case gross weight | 20.5 kg |
| Products per master (outer) case | 4 pc(s) |
| Country of origin | China |
| Master (outer) case net weight | 18.4 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 64 pc(s) |
