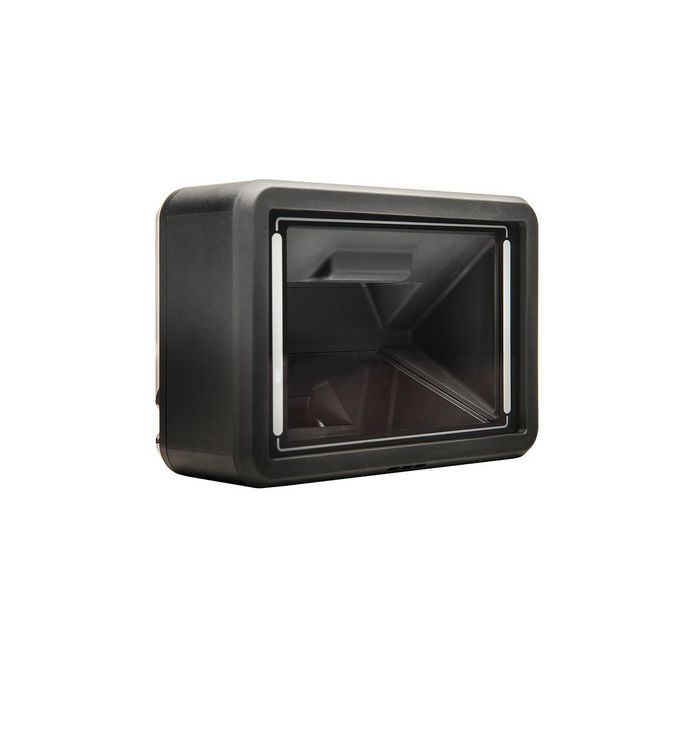

Opticon M-11,2D CMOS MP Omni presentation desktop scanner,2 LED,Speaker,Tone adjust,HID/VCP,USB cable,Black
This Item: Opticon M-11, 2D CMOS Megapixel Omnidirectional presentation scanner, desktop scanner, Visual 2 LED's, inbuilt speaker, tone adjustable. HID/VCP, 2 meter USB cable included, Black, Made in Japan. ______________________________________________ The M-11 is an omni-directional scanner for on top of the counter as built-in. This scanner comes with high performance 2D CMOS Imager along with a well thought out design. The M-11 can be used as built in scanner in parking areas or as a stationary scanner on the counter in retail. Because the M-11 can be embedded into your built in scanning solution, the M-11 is perfectly suited for scanning passports and ID as well. Of course these are just examples as the M-11 can bring a scanning solution to any business. The M-11 is an omni-directional presentation scanner, which means the scanner will scan the product or ticket from any direction. This enables an easy and efficient transaction, because the barcodes are scanned whichever way you h
Availability: In stock
This Item: Applications How we describe the M-11 This Item: Opticon M-11, 2D CMOS Megapixel Omnidirectional presentation scanner, desktop scanner, Visual 2 LED's, inbuilt speaker, tone adjustable. HID/VCP, 2 meter USB cable included, Black, Made in Japan. ______________________________________________ The M-11 is an omni-directional scanner for on top of the counter as built-in. This scanner comes with high performance 2D CMOS Imager along with a well thought out design. The M-11 can be used as built in scanner in parking areas or as a stationary scanner on the counter in retail. Because the M-11 can be embedded into your built in scanning solution, the M-11 is perfectly suited for scanning passports and ID as well. Of course these are just examples as the M-11 can bring a scanning solution to any business. The M-11 is an omni-directional presentation scanner, which means the scanner will scan the product or ticket from any direction. This enables an easy and efficient transaction, because the barcodes are scanned whichever way you hold them in front of the scanner. Applications The M-11 is perfectly suitable for parking areas and ticketing among other applications. The combination of an impressive design, ease of use and an excellent price-performance ratio makes the M-11 the ideal solution for point-of sales (POS) check-out applications, reading barcodes from mobile phones in mobile marketing applications and document handling within banks and post offices. How we describe the M-11 The M-11 is an extraordinary product in Opticon’s range. The M-11 is the presentation scanner, combining a powerful 2D CMOS Imager with a stylish design and omni-directional capabilities. The scanner can be triggered manually or automatically, scanning at a maximum speed of 120 fps. With this scanner you can scan hands-free, just position the scanner on you counter or desk and move the barcode in front of the imager. The scanner will do the rest of the work. The scanner is also durable with a rating of IP42 and a drop resistance of 1.5m upon concrete. The communication is USB and the black color makes it suitable for any counter or embedded in your scanning solutions for ticketing or passport and ID scanning at customs, gates, schools, prisons and so on!
Specifications
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage relative humidity (H-H) | 10 - 90 % |
| Storage temperature (T-T) | -30 - 60 °C |
| Image formats supported | BMP, JPEG |
| International Protection (IP) code | IP42 |
| LED indicators | Yes |
| Product colour | Black |
| Cable length | 2,1 m |
| Connectivity technology | Wired |
| Data transfer rate | 12 Mbit/s |
| Standard interfaces | RS-232, USB |
| Power source type | RS-232, USB |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Codablock, Composite Codes, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, GS1-128 (UCC/EAN-128), IATA, Industrial 2 of 5, Interleaved 2 of 5, ISBN, ISSN, JAN, Matrix 2 of 5, MSI, Plessey, S-Code, Telepen, Trioptic, U.P.C. |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Pitch reading angle | -60 - 60 ° |
| Scanner type | 1D/2D |
| Sensor type | CMOS |
| Tilt reading angle | 0 - 360 ° |
| Type | Fixed bar code reader |
| Yaw reading angle | -70 - 70 ° |
| Compliance certificates | RoHS |
| Sustainability certificates | RoHS |
| Sustainability compliance | Yes |
| Brand Name | Opticon |
| Warranty | 2 years |
