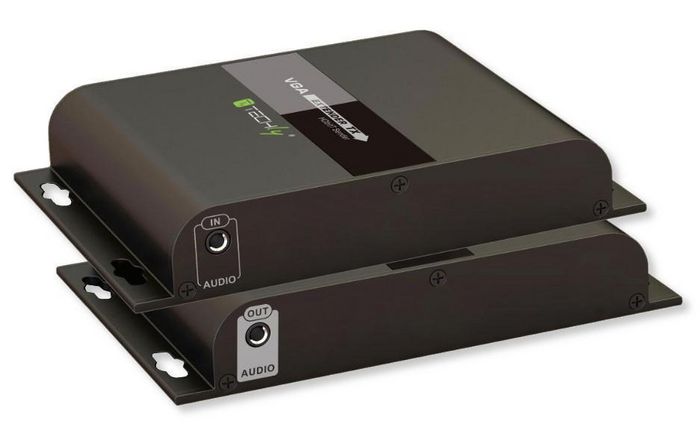

Techly VGA Extender HDbitT with Audio on Cat.6 cable, up to 120m
VGA Extender with 3.5mm audio can estendendere VGA and analog audio signals up to 120m over a single CAT6 cable. It saves on the cost of the cable and supports RGBHV input signal. Due to the high bandwidth consumption should use these devices with IGMP router, or alternatively on dedicated networks or separate port based VLAN.
Availability: In stock
VGA Extender with 3.5mm audio can estendendere VGA and analog audio signals up to 120m over a single CAT6 cable. It saves on the cost of the cable and supports RGBHV input signal. Due to the high bandwidth consumption should use these devices with IGMP router, or alternatively on dedicated networks or separate port based VLAN.
Specifications
| Cable types supported | Cat5, Cat5e, Cat6 |
| Certification | CE, FCC, WEEE/RAEE |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 1920 x 1080 pixels |
| Maximum transfer distance | 120 m |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 960, 1360 x 768 (WXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 800 x 600 (SVGA) |
| Type | AV transmitter & receiver |
| Operating temperature (T-T) | 0 - 60 °C |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| VGA (D-Sub) ports quantity | 2 |
| Input current | 2 A |
| Operating voltage | 5 V |
| Power consumption (receiver) (max) | 7 W |
| Power consumption (transmitter) (max) | 7,5 W |
| Compliance certificates | RoHS |
| Quantity | 1 |
| Sustainability certificates | RoHS |
| Brand Name | Techly |
| Warranty | 1 year |
| Receiver dimensions (WxDxH) | 138 x 90 x 23.8 mm |
| Transmitter dimensions (WxDxH) | 138 x 90 x 23.8 mm |
