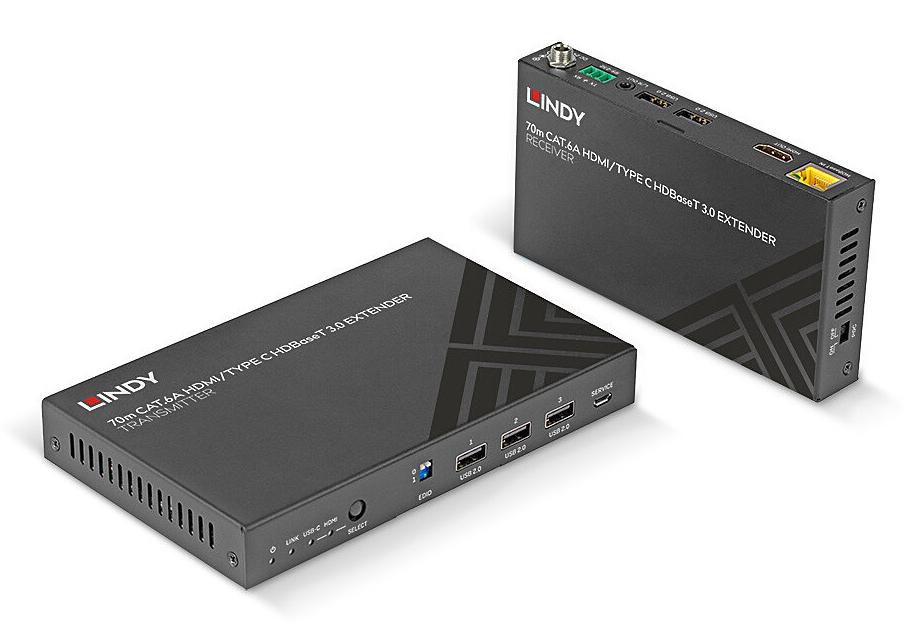

Lindy 70m Cat.6A HDMI 4K60 & Type C HDBaseT 3.0 KVM Extender
Lindy 70m Cat.6A HDMI 4K60 & Type C HDBaseT 3.0 KVM Extender, 3840 x 2160 pixels, AV transmitter & receiver, 70 m, Wired, Black, HDCP
Availability: In stock
Lindy 70m Cat.6A HDMI 4K60 & Type C HDBaseT 3.0 KVM Extender. Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat6a. Connectivity technology: Wired, USB connector type: Micro-USB A, USB Type-A, Digital audio optical output type: TOSLINK. Power source type: DC, Operating voltage: 24 V, Output current: 3.75 A. Weight: 1.9 kg, Receiver dimensions (WxDxH): 144 x 78 x 23 mm, Transmitter dimensions (WxDxH): 170 x 102 x 22 mm. Quantity per pack: 1 pc(s), Package width: 290 mm, Package depth: 75 mm
Specifications
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat6a |
| Maximum transfer distance | 70 m |
| Chipset | VS300R |
| Maximum refresh rate | 60 Hz |
| Extended display identification data (EDID) | Yes |
| EDID management | Yes |
| CEC pass-through | Yes |
| Infrared (IR) frequency range | 20 - 60 kHz |
| Bandwidth | 18 Gbit/s |
| HDCP | Yes |
| Material | Metal |
| HDCP version | 2.2 |
| Product colour | Black |
| HDBaseT certified | Yes |
| Certification | CE, UKCA, FCC, RoHS, REACH & California Proposition 65 |
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDBaseT port | Yes |
| Number of HDMI outputs | 1 |
| HDMI version | 2.0 |
| USB version | 2.0 |
| USB connector type | Micro-USB A, USB Type-A |
| RS-232 input ports | 1 |
| Digital audio optical out | 3 |
| Digital audio optical output type | TOSLINK |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| Remote (IR) input | 1 |
| DC-in jack | Yes |
| Power source type | DC |
| Operating voltage | 24 V |
| Output current | 3.75 A |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 20 - 90% |
| Weight | 1.9 kg |
| Receiver dimensions (WxDxH) | 144 x 78 x 23 mm |
| Transmitter dimensions (WxDxH) | 170 x 102 x 22 mm |
| Quantity per pack | 1 pc(s) |
| Package width | 290 mm |
| Package depth | 75 mm |
| Package height | 220 mm |
| Package weight | 2.18 kg |
| Package type | Box |
| AC adapter included | Yes |
| Cables included | DC, IR |
| Manual | Yes |
| Mounting brackets included | Yes |
| Packaging content | Transmitter, Receiver, Multi-country Power Supply (UK, EU, US & AUS), IR Emitter Cable, 1.5m, IR Receiver Cable, 1.5m, 4 x Mounting Ears & 8 x Screws, 2x 3-Pin Terminal Block, Lindy Manual |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
