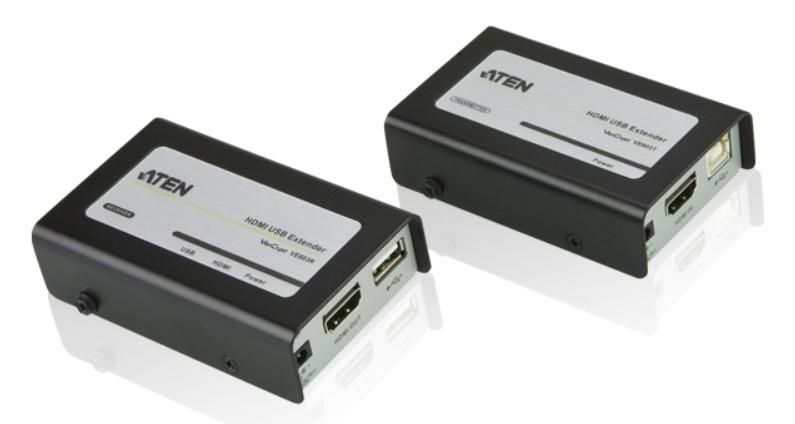

ATEN USB & HDMI Extender CAT5e/6, USB2.0 Full Speed (12Mbit/s) 1080P (40m) / 1080i (60m)
ATEN USB & HDMI Extender CAT5e/6, USB2.0 Full Speed (12Mbit/s) 1080P (40m) / 1080i (60m), 1920 x 1200 pixels, AV transmitter & receiver, 60 m, Wired, 3D, HDCP
Availability: In stock
ATEN USB & HDMI Extender CAT5e/6, USB2.0 Full Speed (12Mbit/s) 1080P (40m) / 1080i (60m). Type: AV transmitter & receiver, Maximum resolution: 1920 x 1200 pixels, Cable types supported: Cat5e. Connectivity technology: Wired, USB connector type: USB Type-A, USB Type-B. Operating voltage (transmitter): 5 V, Operating voltage (receiver): 5 V, Power consumption (TX): 1.04 W. Weight: 495 g, Receiver dimensions (WxDxH): 90 x 57.4 x 24 mm, Receiver weight: 160 g. Package width: 59 mm, Package depth: 239 mm, Package height: 160 mm
Specifications
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance | 60 m |
| Extended display identification data (EDID) | Yes |
| Electrostatic Discharge (ESD) protection | 15 kV |
| Supported video modes | 1080i, 1080p |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Bandwidth | 225 MHz |
| HDCP | Yes |
| Material | Metal |
| 3D | Yes |
| Product colour | Black |
| Connectivity technology | Wired |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| USB connector type | USB Type-A, USB Type-B |
| DC-in jack | Yes |
| Operating voltage (transmitter) | 5 V |
| Operating voltage (receiver) | 5 V |
| Power consumption (TX) | 1.04 W |
| Power consumption (RX) | 0.75 W |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight | 495 g |
| Receiver dimensions (WxDxH) | 90 x 57.4 x 24 mm |
| Receiver weight | 160 g |
| Transmitter dimensions (WxDxH) | 90 x 57.4 x 24 mm |
| Transmitter weight | 160 g |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 652 g |
| AC adapter included | Yes |
| Cables included | USB |
| Manual | Yes |
| Mounting kit | Yes |
| Master (outer) case width | 315 mm |
| Master (outer) case length | 490 mm |
| Master (outer) case height | 338 mm |
| Master (outer) case gross weight | 13.5 kg |
| Master (outer) case net weight | 9.9 kg |
| Products per master (outer) case | 20 pc(s) |
