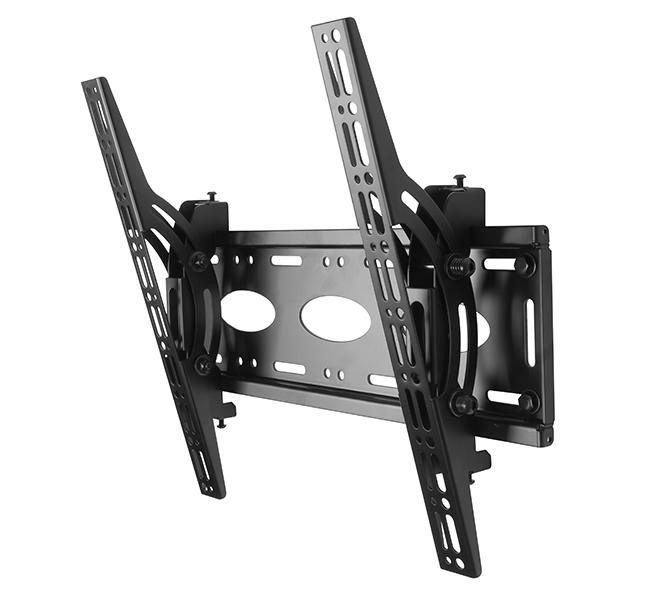

B-Tech Flat Screen Wall Mount with Tilt (VESA 400)
Designed to mount medium to large sized screens, the BT8431 is a flat screen wall mount that features a unique ‘Torsion-Tilt’ mechanism which allows easy tilt adjustment of the screen up to +/-15°. Also suitable for pole mounting using B-Tech’s Accessory Collars, the BT8431 features levelling screws to adjust the screen level post installation as well as locking screws which help prevent unauthorised removal of the screen. Recommended screen size: 39” (99cm) - 55" (140cm) Max load: 50kg (110lbs) VESA® & non-VESA fixings: up to 468 x 400mm Tilt: +/-15° Distance from wall (flat): 81mm (3.2”) Distance from wall (full tilt): 148mm (5.8”) Colour: Black
Availability: In stock
Designed to mount medium to large sized screens, the BT8431 is a flat screen wall mount that features a unique ‘Torsion-Tilt’ mechanism which allows easy tilt adjustment of the screen up to +/-15°. Also suitable for pole mounting using B-Tech’s Accessory Collars, the BT8431 features levelling screws to adjust the screen level post installation as well as locking screws which help prevent unauthorised removal of the screen. Recommended screen size: 39” (99cm) - 55" (140cm) Max load: 50kg (110lbs) VESA® & non-VESA fixings: up to 468 x 400mm Tilt: +/-15° Distance from wall (flat): 81mm (3.2”) Distance from wall (full tilt): 148mm (5.8”) Colour: Black
Specifications
| Product colour | Black |
| Distance to the wall (max) | 14,8 cm |
| Distance to the wall (min) | 8,1 cm |
| Tilt angle range | -15 - 15 ° |
| Master (outer) case gross weight | 8900 g |
| Master (outer) case volume | 28000 cm³ |
| Products per master (outer) case | 2 pc(s) |
| Maximum screen size | 55 " |
| Maximum VESA mount | 400 x 400 mm |
| Maximum weight capacity | 50 kg |
| Minimum screen size | 39 " |
| Mounting type | Wall |
| Number of displays supported | 1 |
| Mounting kit | Yes |
| Brand Name | B-Tech |
| Homepage | www.btechavmounts.com/BT8431 |
| Warranty | 10 years |
| Depth (max) | 14,8 cm |
| Depth (min) | 2,1 cm |
