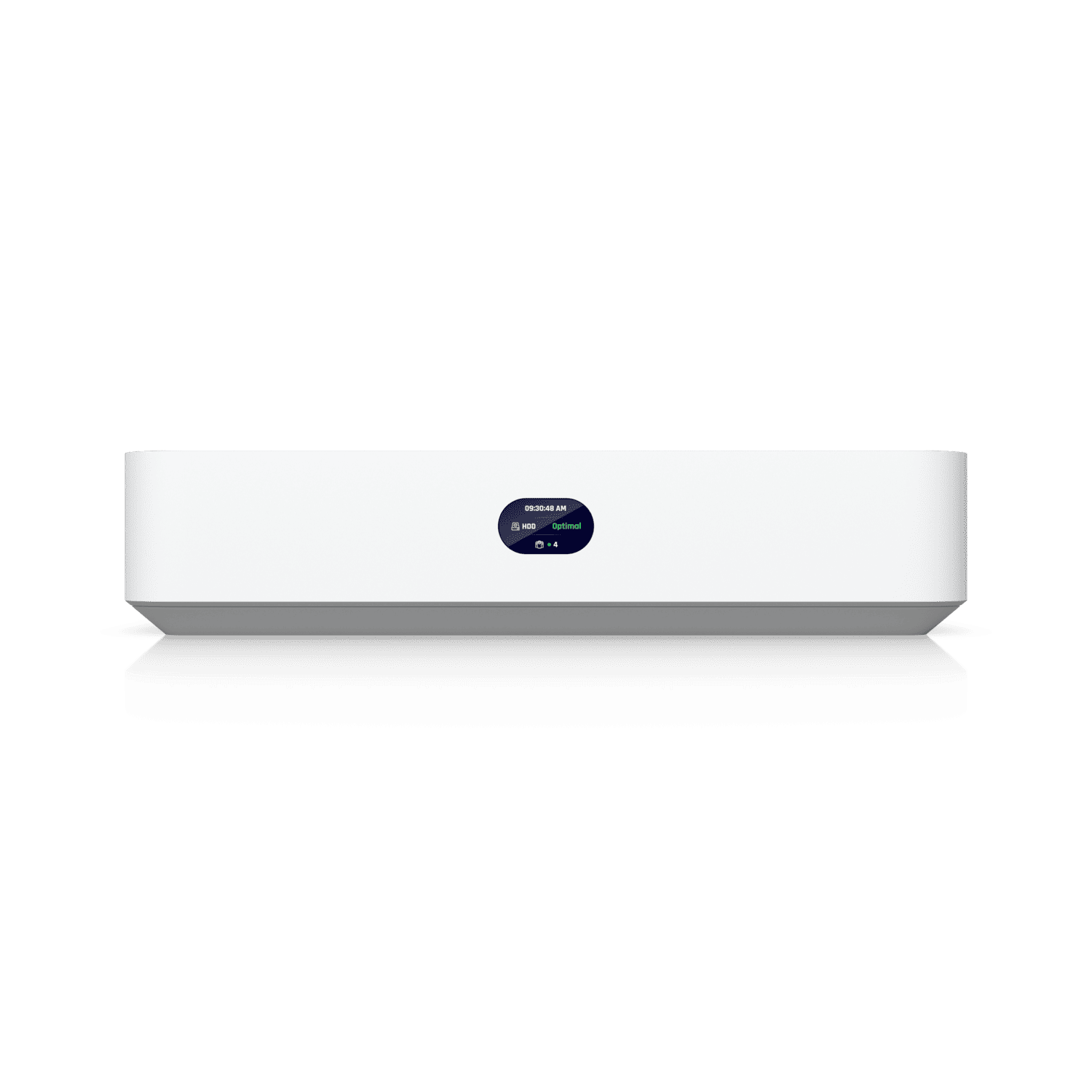

Features Ubiquiti NVR Instant

Manage up to 15 HD, 8 2K or 6 4K camerasSupports UniFi Protect and UniFi AccessEquipped with 6x PoE port (40W PoE budget)Compact design with wall and DIN rail mountingSupports 3.5” HDD for local storageQuad-core ARM Cortex-A55 processor with 4 GB RAMHDMI output for direct camera image via ViewportNDAA compliant and CE certified

Manage multiple UniFi applications

The Ubiquiti UniFi NVR Instant is designed for the UniFi Application Suite and supports UniFi Protect and UniFi Access, among others. This allows you to manage security cameras and access control on one central platform. The intuitive interface gives you live camera images, recordings and access information in one overview.

Compact design with integrated PoE switch

Thanks to its compact size (220 x 220 x 47 mm), the Ubiquiti NVR Instant is easy to place on a desk, on the wall or on a DIN rail. The built-in 6-port PoE switch provides a total PoE budget of 40 watts, allowing you to directly power cameras or access hubs without an additional switch.

Local storage and data recovery

The NVR Instant has a 3.5" HDD bay that allows you to store local recordings. This way you always have access to video images, even without a cloud connection. The recorder supports data protection, so that your files are kept safe in the event of system problems.

Powerful hardware and quiet operation

With a quad-core ARM Cortex-A55 processor (1.7 GHz) and 4 GB RAM, the NVR Instant offers sufficient computing power for simultaneous video streams and access operations. Energy consumption remains low (maximum 9 watts) and the internal 60W power supply ensures stable operation 24 hours a day.

Connections and integration

The Ubiquiti NVR Instant features one GbE uplink port, six GbE PoE downlink ports and an HDMI output for viewing via Viewport. In addition, the device supports Bluetooth and Ethernet for easy management. The polycarbonate design is light, durable and suitable for temperatures from 0 to 40°C.

Package contents

• Ubiquiti UniFi NVR Instant
• Power cable
• DIN rail and wall mounting kit
• Quick start guide
