LevelOne 10-Port Fast Ethernet PoE Switch, 1 x Gigabit RJ45, 1 x Gigabit SFP, 8 PoE Outputs, 120W
LevelOne 10-Port Fast Ethernet PoE Switch, 1 x Gigabit RJ45, 1 x Gigabit SFP, 8 PoE Outputs, 120W, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE)
Availability: Arriving Soon
FGP-1000 is a 8-port 10/100Mbps Fast Ethernet Switch with Power over Ethernet (PoE) capability. With 8 dip switches, each PoE port can be manually set for On-Off control. FGP-1000 supports up to 30W on each LAN port when the DIP switch is in the ON position . Using a LevelOne PoE repeater, it is possible to extend the connection a further 100 meters, or even daisy-chain several PoE repeaters together for greater distances. Dual 10/100Mbps ports can connect with other edge switches or NVR as uplink ports.- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission- 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX- PoE on/off control per port by dip switches- Total PoE power budget: 120W, up to 30W per port- Simple Plug and Play installation
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 9 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 1 |
| Fiber optic connector | SFP |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3u,IEEE 802.3x |
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Full duplex | Y |
| Auto MDI/MDI-X | Y |
| Auto-negotiation | Y |
| Optical fiber | |
| Fiber ethernet cabling technology | 1000BASE-X |
| Fiber type | Single-mode |
| Data transmission | |
| Switching capacity | 5.6 |
| MAC address table | 4096 |
| Store-and-forward | Y |
| Packet forwarding rate (1 Gbps) | 1488000 |
| Packet forwarding rate (100 Mbps) | 148000 |
| Packet forwarding rate (10 Mbps) | 14880 |
| Design | |
| Rack mounting | N |
| Stackable | N |
| Product colour | Black,Grey |
| LED indicators | Activity,LAN,PoE,Power |
| On/off switch | Y |
| Performance | |
| Buffer size | 512 |
| Power | |
| Power supply included | Y |
| AC input voltage | 100 - 240 |
| AC input frequency | 50 - 60 |
| Output voltage | 52 |
| Power consumption (typical) | 120 |
| Power protection features | Over current,Short circuit |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Y |
| Power over Ethernet (PoE) ports quantity | 9 |
| Power over Ethernet (PoE) power per port | 30 |
| Total Power over Ethernet (PoE) budget | 115 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 10 - 90 |
| Weight & dimensions | |
| Width | 188 |
| Depth | 118 |
| Height | 38 |
| Weight | 1500 |
| Packaging content | |
| Manual | Y |
| Packaging data | |
| AC adapter included | Y |
| Package width | 222 |
| Package depth | 146 |
| Package height | 78 |
| Package weight | 1700 |
| Certificates | |
| Certification | FCC, CE, RoHS |
| Logistics data | |
| Country of origin | Taiwan |
| Harmonized System (HS) code | 85176990 |
ISO Safety Sign - Warning

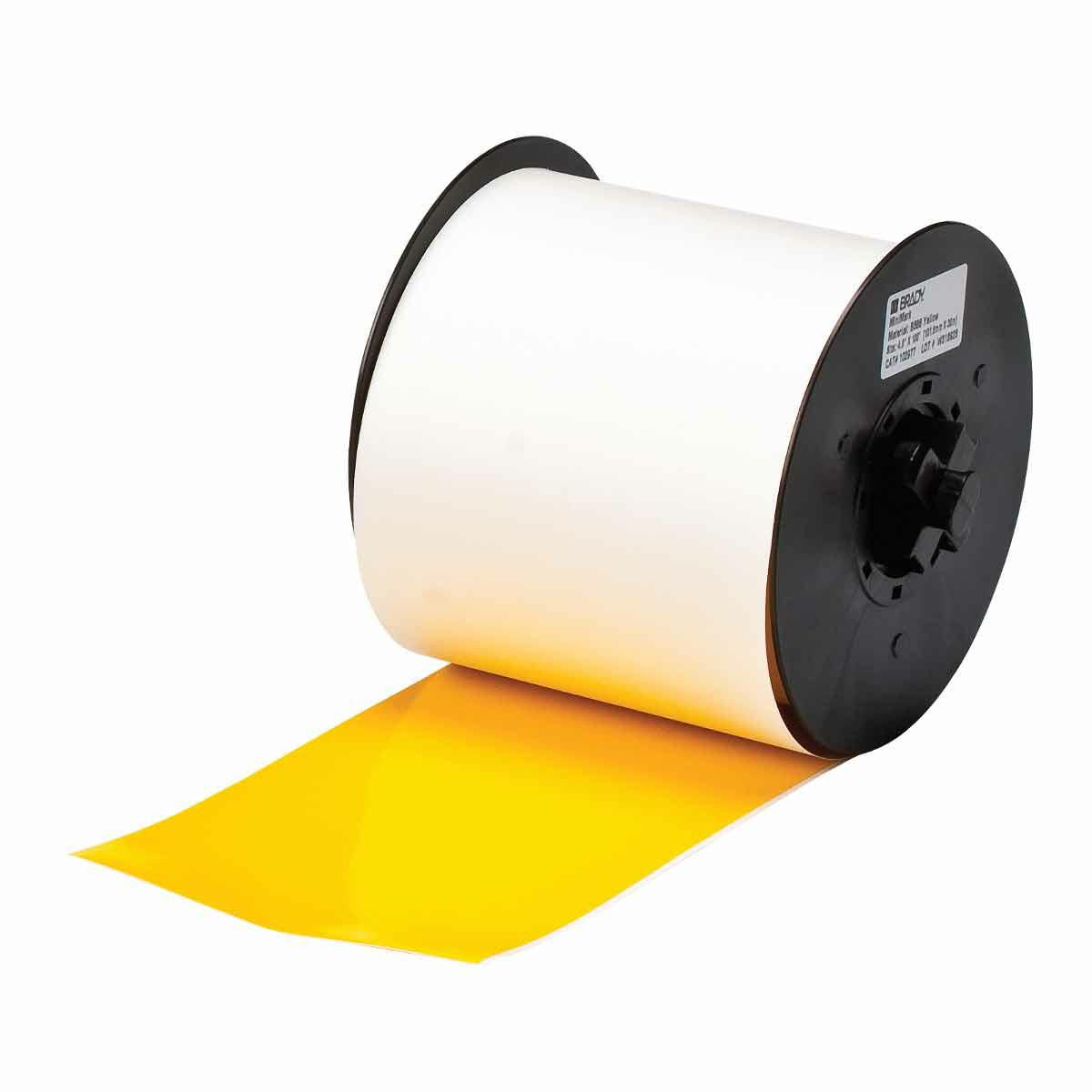

MiniMark Indoor/Outdoor Vinyl
