iiyama TF1515MC-B2 computer monitor 38.1 cm (15") 1024 x 768 pixels XGA LED Touchscreen Black
iiyama TF1515MC-B2, 38.1 cm (15"), 1024 x 768 pixels, XGA, LED, 8 ms, Black
Availability:: Arriving soon
The ProLite TF1515MC-B2 (15 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF1515MC-B2 can be equipped with optional external mounting brackets ( OMK2-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
| Display | |
|---|---|
| Display diagonal | 15 " |
| Display resolution | 1024 x 768 pixels |
| HD type | XGA |
| Native aspect ratio | 4:3 |
| Display technology | LED |
| Panel type | TN |
| Touchscreen | Y |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness (typical) | 350 cd/m² |
| Display brightness | 350 cd/m² |
| Response time | 8 ms |
| Screen shape | Flat screen |
| Aspect ratio | 4:3 |
| Contrast ratio (typical) | 800:1 |
| Maximum refresh rate | 75 Hz |
| Viewing angle, horizontal | 160 ° |
| Viewing angle, vertical | 150 ° |
| Display number of colours | 16.2 million colours |
| Pixel pitch | 0.297 x 0.297 mm |
| Horizontal scan range | 31.4 - 60 kHz |
| Viewable size, horizontal | 304.1 mm |
| Viewable size, vertical | 228.1 mm |
| Display diagonal (metric) | 38 cm |
| Surface hardness | 7H |
| Performance | |
| NVIDIA G-SYNC | N |
| AMD FreeSync | N |
| Windows operating systems supported | Y |
| Linux operating systems supported | Y |
| Multimedia | |
| Built-in microphone | N |
| Built-in camera | N |
| Design | |
| Product colour | Black |
| Front bezel colour | Black |
| Glass thickness | 6 mm |
| Ports & interfaces | |
| USB Touch port | Y |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Y |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Y |
| Ergonomics | |
| VESA mounting | Y |
| Panel mounting interface | 100 x 100 mm |
| Wall mountable | Y |
| On Screen Display (OSD) | Y |
| On Screen Display (OSD) languages | CHI (SIMPL),DEU,ENG,ESP,FRE,ITA,JPN |
| Number of OSD languages | 7 |
| Plug and Play | Y |
| LED indicators | Y |
| Power | |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 10 kWh |
| Power consumption (typical) | 16 W |
| Power consumption (standby) | 1.2 W |
| Power consumption (off) | 1.2 W |
| AC adapter output voltage | 12 V |
| Power supply type | External |
| Energy efficiency scale | A to G |
| European Product Registry for Energy Labelling (EPREL) code | 378636 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Width (with stand) | 364 mm |
| Depth (with stand) | 41.5 mm |
| Height (with stand) | 291 mm |
| Weight (with stand) | 2900 g |
| Width (without stand) | 364 mm |
| Depth (without stand) | 291 mm |
| Height (without stand) | 41.5 mm |
| Weight (without stand) | 2900 g |
| Packaging data | |
| Package width | 460 mm |
| Package depth | 460 mm |
| Package height | 470 mm |
| Package weight | 4600 g |
| Packaging content | |
| Cables included | AC,DisplayPort,HDMI,USB |
| Quick start guide | Y |
| Other features | |
| International Protection (IP) code | IP65 |
| Display viewable area (HxV) | 304.1 x 228.1 mm |
| Placement supported | Horizontal/Vertical |
| Certification | CB, CE, TÜV-Bauart, EAC, cULus |
| Logistics data | |
| Products per pallet | 44 pc(s) |
| Pallet net width | 860 mm |
| Pallet net length | 120 mm |
| Pallet net height | 970 mm |
| Harmonized System (HS) code | 85285210 |

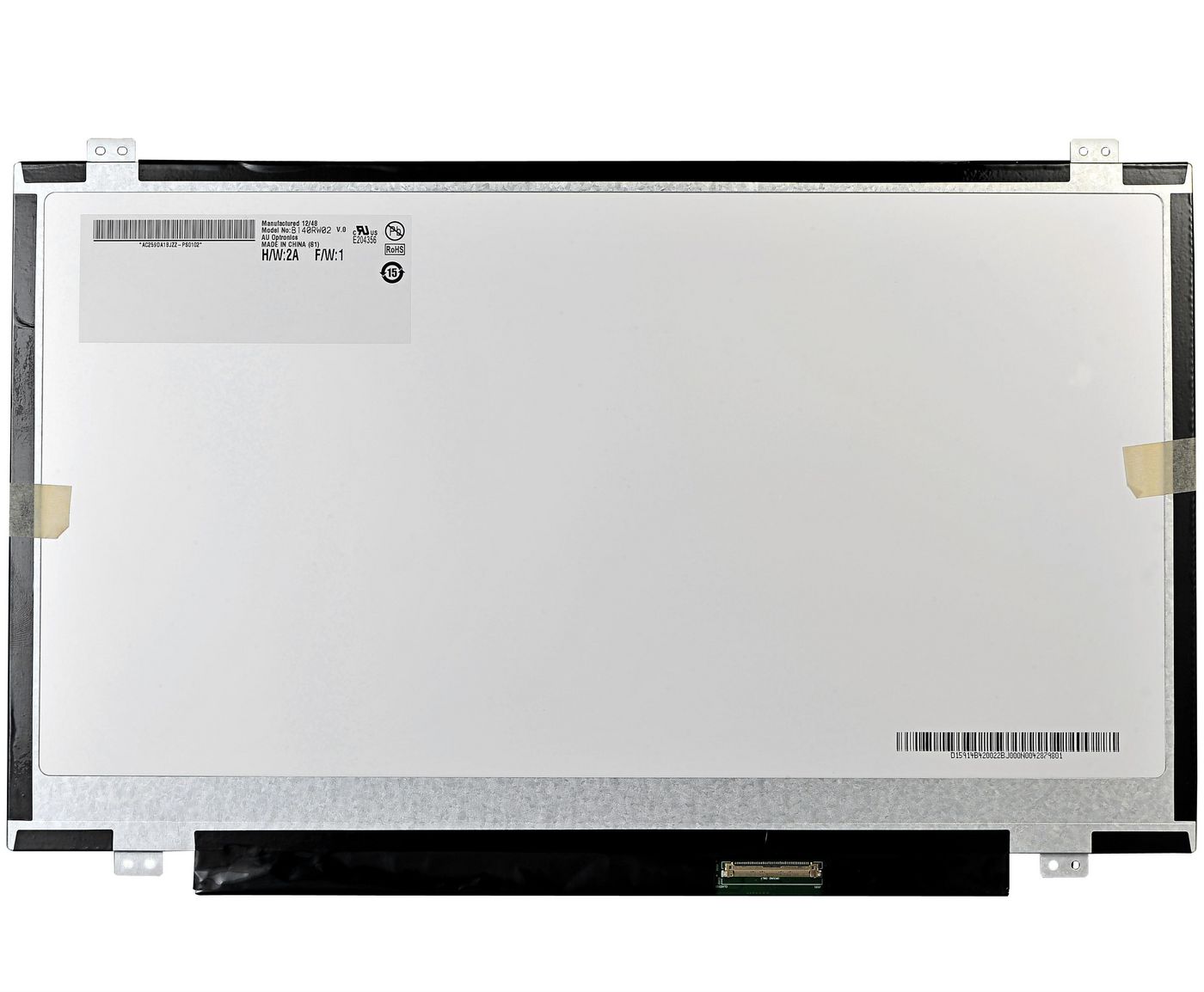

14,0" LCD HD Glossy
