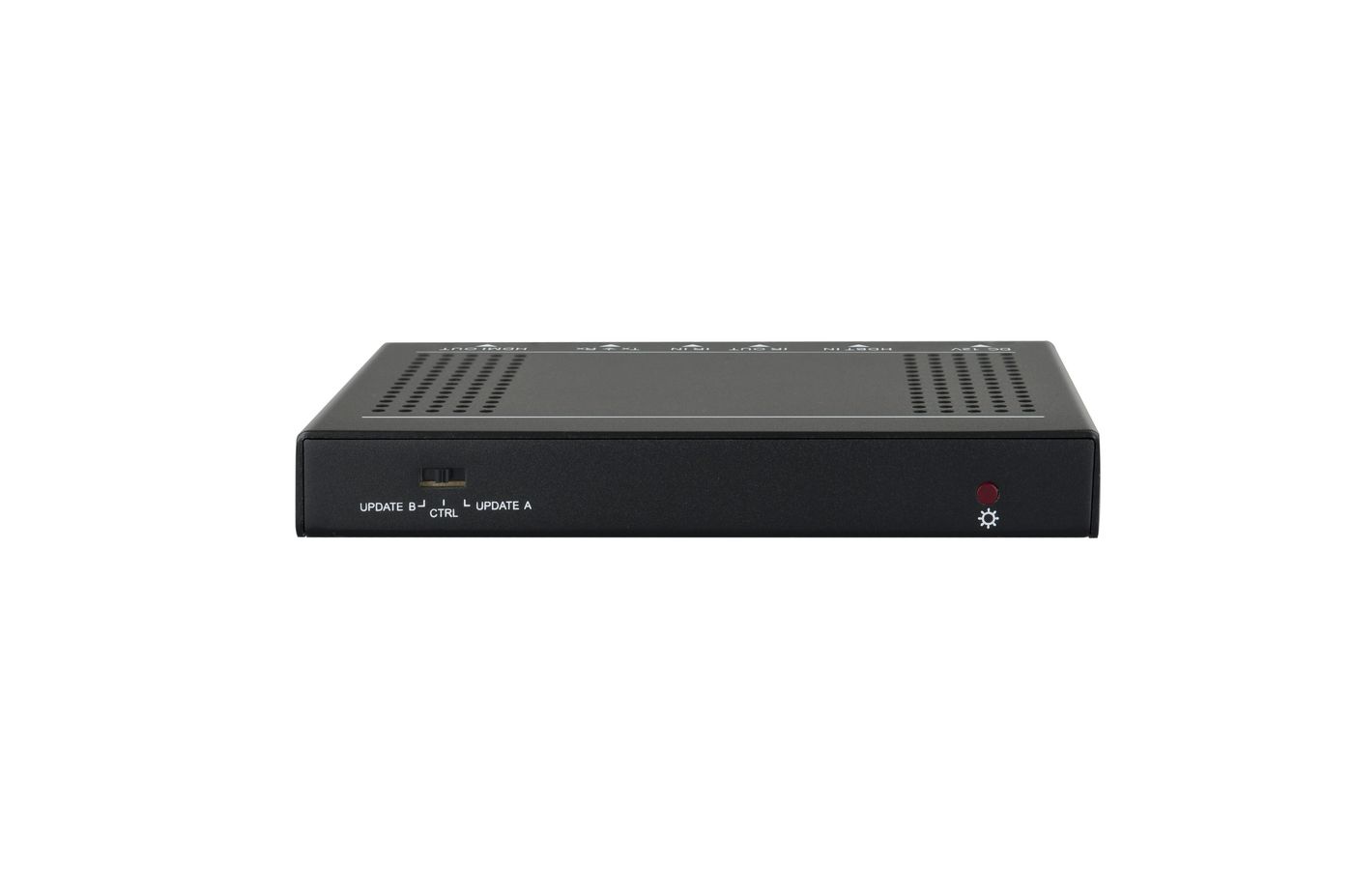

ATEN HDMI HDBaseT Receiver with Dual Output (4K@100m) (HDBaseT Class A)
ATEN HDMI HDBaseT Receiver with Dual Output (4K@100m) (HDBaseT Class A), 4096 x 2160 pixels, AV receiver, 150 m, Wired, 3D, HDCP
Availability:: Arriving soon
ATEN VE814AR is an HDBaseT Video Receiver that is capable of receiving HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable.This HDCP 2.2-compliant receiver meets the HDMI Specification, including 3D, Deep Color, the maximum data rate of (10.2 Gbps), and 4K video quality up to 100 m.The VE814AR supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814AR) while granting access to the HDMI display device from the local unit (VE814AT). In addition, it supports Long Reach Mode that extends HDMI signals up to 150 m, 1080p, via a single Cat 5e/6 cable.The VE814AR is a powerful solution for where digital signage is required, such as bars, educational spaces, and public transportation stations, allowing display of identical contents at different spots.
| Features | |
|---|---|
| Type | AV receiver |
| Maximum resolution | 4096 x 2160 |
| Cable types supported | Cat5e,Cat6,Cat6a |
| Maximum transfer distance | 150 |
| Maximum refresh rate | 60 |
| Infrared (IR) frequency range | 30 - 56 |
| Supported graphics resolutions | 1920 x 1080 (HD 1080),3840 x 2160,4096 x 2160 |
| Bandwidth | 340 |
| HDCP | Y |
| Material | Metal |
| 3D | Y |
| Firmware upgradeable | Y |
| Consumer Electronics Control (CEC) support | Y |
| Baud rate | 57.6 |
| Impedance | 100 |
| HDCP version | 2.2 |
| Product colour | Black |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN | N |
| RJ-45 input ports | 1 |
| HDBaseT port | Y |
| Number of HDMI outputs | 2 |
| Serial ports quantity | 1 |
| Serial interface type | RS-232 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Y |
| Power | |
| Operating voltage | 5 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -20 - 60 |
| Operating relative humidity (H-H) | 0 - 80 |
| Weight & dimensions | |
| Width | 123 |
| Depth | 140.2 |
| Height | 30 |
| Weight | 470 |
| Packaging data | |
| Package width | 59 |
| Package depth | 239 |
| Package height | 160 |
| Package weight | 760 |
| Packaging content | |
| AC adapter included | Y |
| Manual | Y |
| Technical details | |
| Country of origin | Taiwan |
| Package volume | 2265.35 |
| Logistics data | |
| Master (outer) case width | 250 |
| Master (outer) case length | 325 |
| Master (outer) case height | 175 |
| Master (outer) case gross weight | 4150 |
| Master (outer) case volume | 14158.42 |
| Master (outer) case net weight | 3050 |
