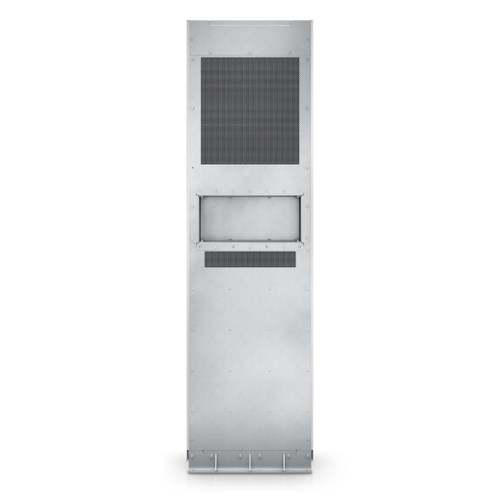

APC Easy 3S uninterruptible power supply (UPS) Double-conversion (Online) 40 kVA 40000 W
€9841,73
APC Easy 3S, Double-conversion (Online), 40 kVA, 40000 W, Pure sine, 304 V, 477 V
Availability: Arriving Soon
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 40 |
| Output power | 40000 |
| Waveform | Pure sine |
| Input operation voltage (min) | 304 |
| Input operation voltage (max) | 477 |
| Input frequency | 45/65 |
| Output operation voltage (min) | 380 |
| Output operation voltage (max) | 415 |
| Output frequency | 50/60 |
| Maximum current | 73 |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Input power factor | 0.99 |
| Crest factor | 3:1 |
| Overload capacity (10 minutes) | 125 |
| Overload capacity (1 minute) | 150 |
| Output voltage Total Harmonic Distortion (THD) | 3 |
| Input current Total Harmonic Distortion (THD) | 3 |
| Noise level | 63 |
| Design | |
| Form factor | Tower |
| Product colour | White |
| International Protection (IP) code | IP20 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -15 - 40 |
| Operating relative humidity (H-H) | 0 - 95 |
| Storage relative humidity (H-H) | 0 - 95 |
| Operating altitude | 0 - 984.3 |
| Non-operating altitude | 0 - 14763.6 |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH |
| Packaging content | |
| Quick installation guide | Y |
| Weight & dimensions | |
| Width | 250 |
| Depth | 900 |
| Height | 770 |
| Weight | 70000 |
| Packaging data | |
| Package width | 400 |
| Package depth | 1050 |
| Package height | 1015 |
| Package weight | 86000 |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Other features | |
| Output voltage | 400 |
