ATEN DisplayPort HDBaseT-Lite Transmitter 4K/40m;1080p/70m
ATEN DisplayPort HDBaseT-Lite Transmitter 4K/40m;1080p/70m, 4096 x 2160 pixels, AV transmitter, 70 m, Wired, Black, HDCP
Availability:: Arriving soon
The VE901T DisplayPort HDBaseT-Lite Transmitter is able to extend a DisplayPort display up to 70 m using a Cat 6/6a/ATEN 2L-2910 Cat 6 cable. This combination of ATEN and HDBaseT™ technology supports sharing 4K media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.1x VE901T DisplayPort HDBaseT-Lite Transmitter1x 0AD8-1F05-26M1 Power Adapter1x User Instructions
| Features | |
|---|---|
| Type | AV transmitter |
| Maximum resolution | 4096 x 2160 |
| Cable types supported | Cat5e,Cat6,Cat6a |
| Maximum transfer distance | 70 |
| Supported video modes | 1080p |
| Supported graphics resolutions | 3840 x 2160,4096 x 2160 |
| Bandwidth | 297 |
| HDCP | Y |
| Material | Metal |
| Rack mounting | Y |
| Plug and Play | Y |
| Impedance | 100 |
| HDCP version | 1.4 |
| Product colour | Black |
| HDBaseT certified | Y |
| Ports & interfaces | |
| Connectivity technology | Wired |
| RJ-45 output ports | 1 |
| HDBaseT port | Y |
| DisplayPorts in | 1 |
| DC-in jack | Y |
| Power | |
| Operating voltage (transmitter) | 5 |
| Power consumption (TX) | 2.84 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -20 - 60 |
| Operating relative humidity (H-H) | 0 - 80 |
| Storage relative humidity (H-H) | 0 - 80 |
| Weight & dimensions | |
| Width | 94.2 |
| Depth | 66 |
| Height | 29 |
| Weight | 380 |
| Packaging data | |
| Quantity per pack | 1 |
| Package width | 59 |
| Package depth | 119 |
| Package height | 160 |
| Package weight | 440 |
| Packaging content | |
| AC adapter included | Y |
| Manual | Y |
| Logistics data | |
| Master (outer) case width | 250 |
| Master (outer) case length | 325 |
| Master (outer) case height | 175 |
| Master (outer) case gross weight | 5000 |
| Master (outer) case net weight | 3800 |
| Products per master (outer) case | 10 |

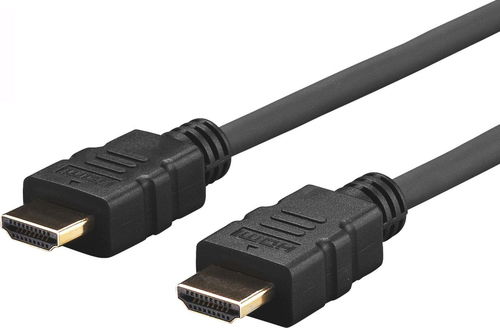

PRO HDMI LSZH
