LevelOne 1.25Gbps Single-mode BIDI Industrial SFP Transceiver, 20km, TX 1550nm / RX 1310nm, -40°C to 85°C
LevelOne 1.25Gbps Single-mode BIDI Industrial SFP Transceiver, 20km, TX 1550nm / RX 1310nm, -40°C to 85°C, Fiber optic, 1250 Mbit/s, SFP, LC, 9/125 µm, 20000 m
Availability: Arriving Soon
The LevelOne SFP-4340 is a high performance, costeffective SFP transceiver. It provides up to 1,25 Gbps bi-directional data transfer rate at distances up to 20km on a single fiber core. These bi-directional SFP Transceivers allow data transfer in either direction through a single optical fiber by employing separate wavelengths travelling in either direction.The SFP-4340 transmits using a wavelength of 1550nm and receives using a wavelength of 1310nm. When coupled with the LevelOne SFP-4330 transceiver which transmits at and receives at the opposite rates (1310nm TX and 1550nm RX) you get bi-direction data communication on a single fiber core. This Hot-swappable SFP transceiver offers the latest Industrial standard in full-duplex Ethernet connectivity and withstand under wide range temperature operation.
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Y |
| Multi-mode fiber (MMF) supported | N |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 9/125 |
| Maximum transfer distance | 20000 |
| Tx wavelength (max) | 1550 |
| Rx wavelength (max) | 1310 |
| Tx power (min) | -9 |
| Tx power (max) | -3 |
| Rx power (min) | -25 |
| Rx power (max) | -2 |
| Digital Diagnostics Monitoring (DDM) | Y |
| Features | |
| Product colour | Silver |
| Hot-swap | Y |
| Power | |
| Maximum voltage | 3.47 |
| Maximum current | 0.3 |
| Power consumption (typical) | 1 |
| Certificates | |
| Compliance certificates | RoHS |
| Safety | FCC Part 15 Class B EN55022 Class B (CISPR 22B) VCCI Class B |
| Certification | CE |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 |
| Storage temperature (T-T) | -40 - 85 |
| Operating relative humidity (H-H) | 0 - 85 |
| Weight & dimensions | |
| Width | 13.7 |
| Depth | 56.6 |
| Height | 12.4 |
| Weight | 19 |
| Packaging content | |
| Quantity per pack | 1 |
| Packaging data | |
| User guide | Y |
| Package width | 65 |
| Package depth | 106 |
| Package height | 20 |
| Package weight | 39.5 |
| Package type | Box |
| Other features | |
| RX sensitivity | -25 |
| Logistics data | |
| Pallet gross length | 800 |
| Pallet gross width | 1200 |
| Pallet height (air) | 1669 |
| Products per pallet | 35 |
| Master (outer) case width | 310 |
| Master (outer) case length | 375 |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 268 |
| Master (outer) case gross weight | 6670 |
| Products per master (outer) case | 150 |
| Country of origin | China |

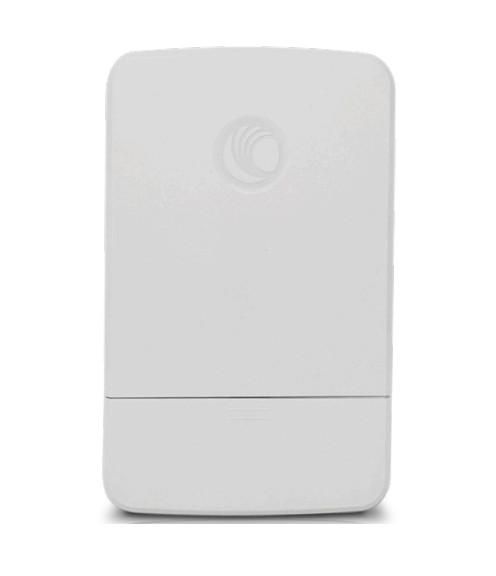

ePMP Bridge in a Box UHD 5
5-Port 802.3at PoE+ Solar PoE

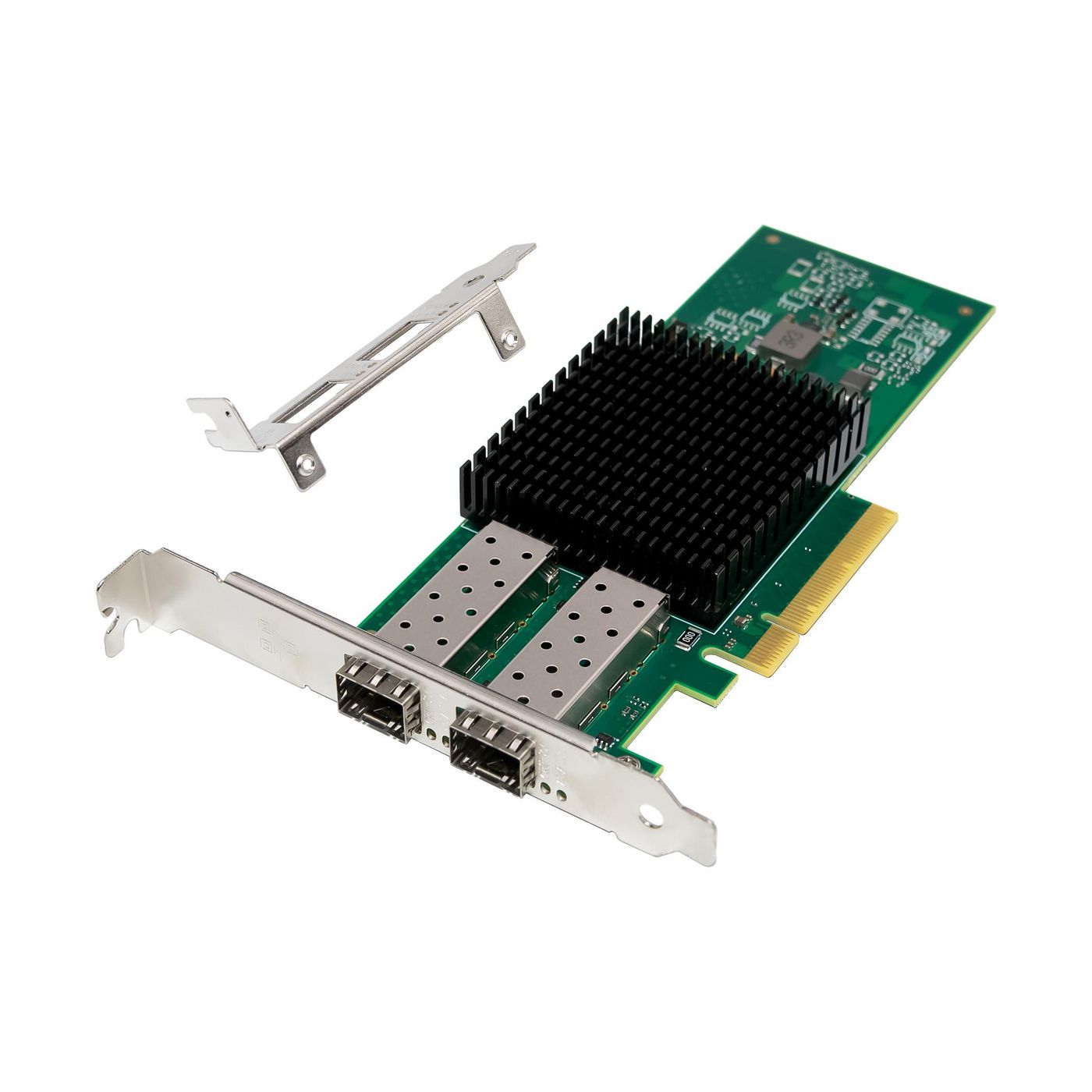

Network Card PCIe X8

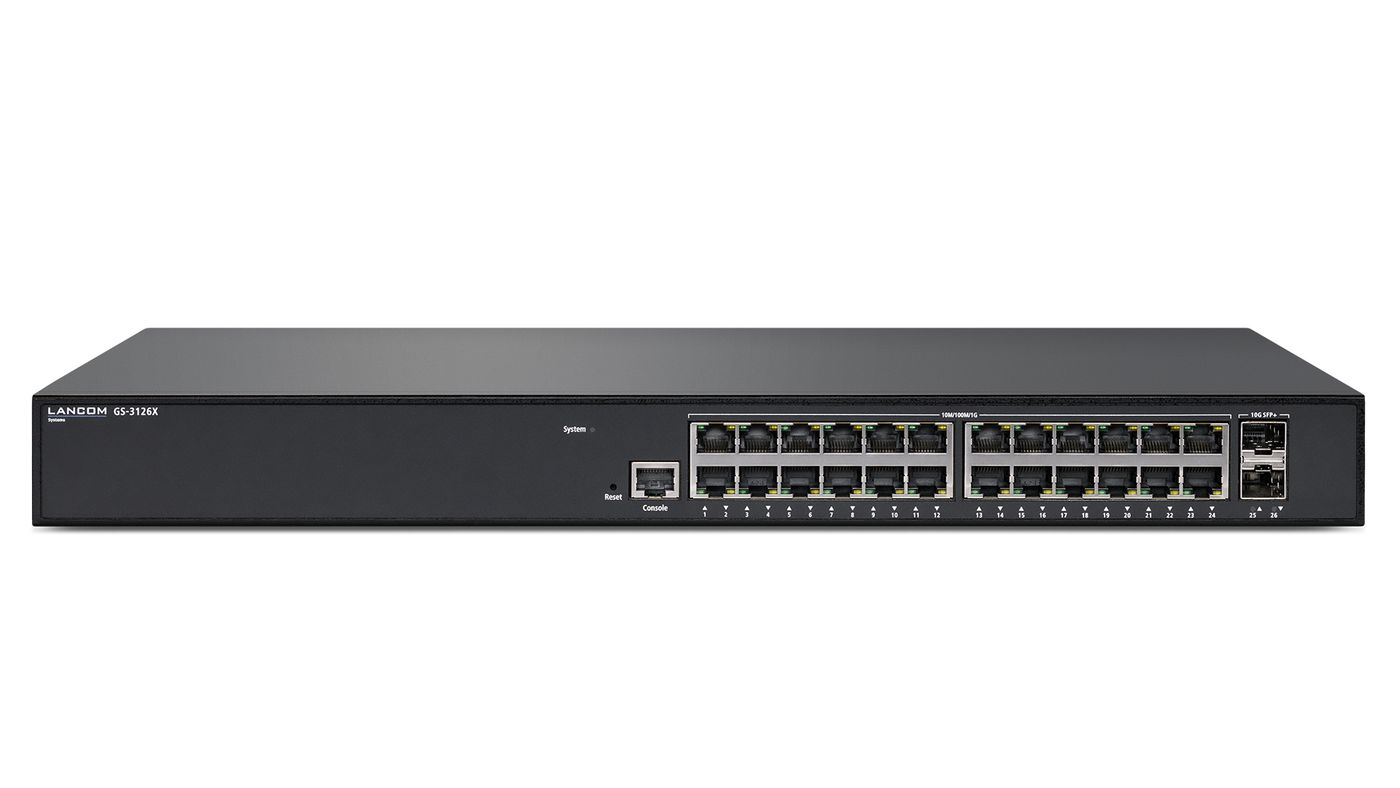

GS-3126X
