TP-Link Omada 16-Port Gigabit Smart Switch with 2 SFP Slots
TP-Link Omada 16-Port Gigabit Smart Switch with 2 SFP Slots, Managed, L2/L2+, Gigabit Ethernet (10/100/1000), Rack mounting, 1U
Availability: Arriving Soon
TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L2+ |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Cloud-managed | Y |
| ARP inspection | Y |
| System event log | Y |
| MIB support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| SFP module slots quantity | 2 |
| Network | |
| Networking standards | IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3z |
| 10G support | N |
| Port mirroring | Y |
| Flow control support | Y |
| Link aggregation | Y |
| Broadcast storm control | Y |
| Rate limiting | Y |
| Spanning tree protocol | Y |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| VLAN support | Y |
| Virtual LAN features | Port-based VLAN,Private VLAN,Protocol-based VLAN,Tagged VLAN,Voice VLAN |
| Number of VLANs | 4000 |
| Data transmission | |
| Switching capacity | 36 Gbit/s |
| Forwarding rate | 26.8 Mpps |
| MAC address table | 8000 entries |
| Store-and-forward | Y |
| Static route | Y |
| Number of static routes | 32 |
| Number of IP interfaces | 16 |
| Jumbo frames support | Y |
| Jumbo frames | 9000 |
| Packet buffer memory | 4.1 MB |
| Security | |
| DHCP features | DHCP client,DHCP relay,DHCP server,DHCP snooping,DHCPv6 client,DHCPv6 snooping |
| Access Control List (ACL) | Y |
| IGMP snooping | Y |
| SSH/SSL support | Y |
| Loop protection | Y |
| BPDU filtering/protection | Y |
| Multicast features | |
| Multicast support | Y |
| Multicast Listener Discovery (MLD) snooping | Y |
| Protocols | |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| GARP VLAN Registration Protocol (GVRP) | Y |
| Design | |
| Rack mounting | Y |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Y |
| Performance | |
| Fanless | Y |
| Power | |
| Power source | AC |
| Power supply included | Y |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 12.3 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | N |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90 % |
| Storage relative humidity (H-H) | 5 - 90 % |
| Heat dissipation | 41.97 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Packaging content | |
| Cables included | AC,LAN (RJ-45) |
| Quick start guide | Y |
| Certificates | |
| Certification | CE, FCC, RoHS |

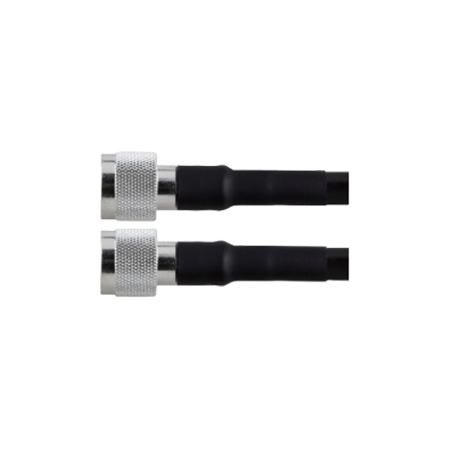

50' LMR-400DB NM-NM

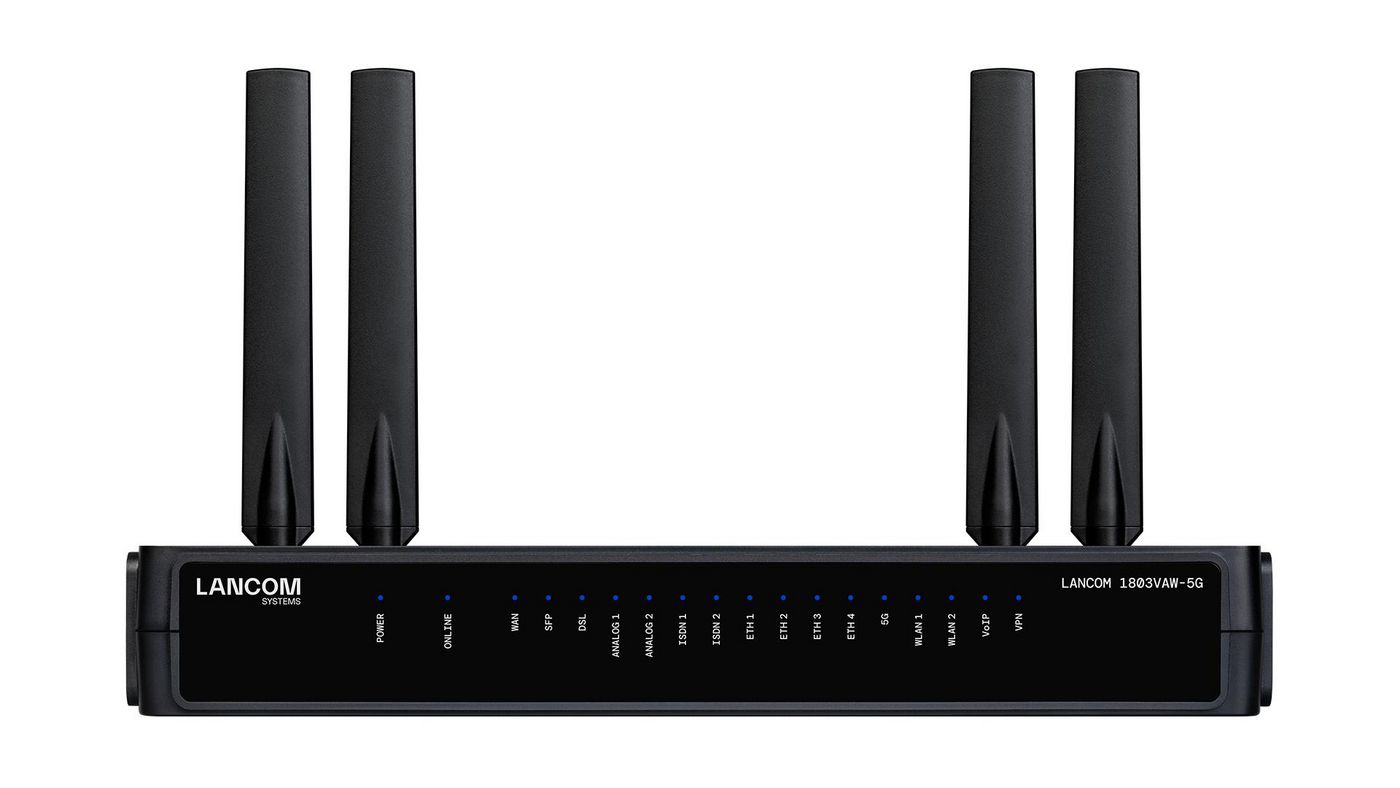

1803VAW-5G (EU)

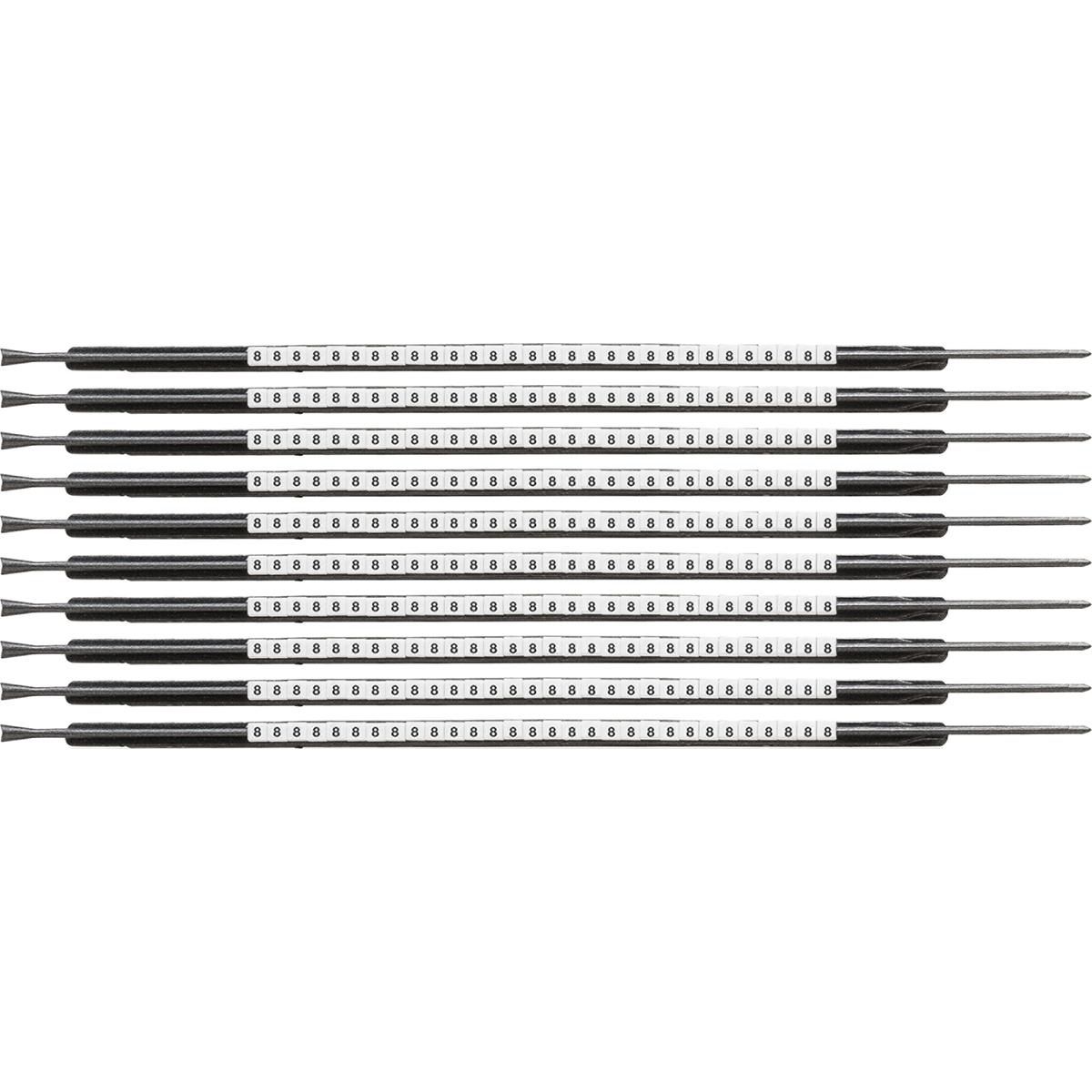

Clip Sleeve Wire Markers
Speaker cable, 100m,
ISO Safety Sign - Warning

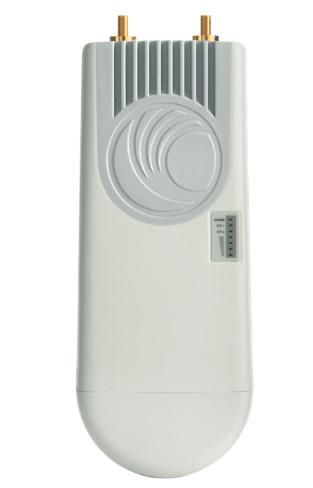

ePMP 1000
