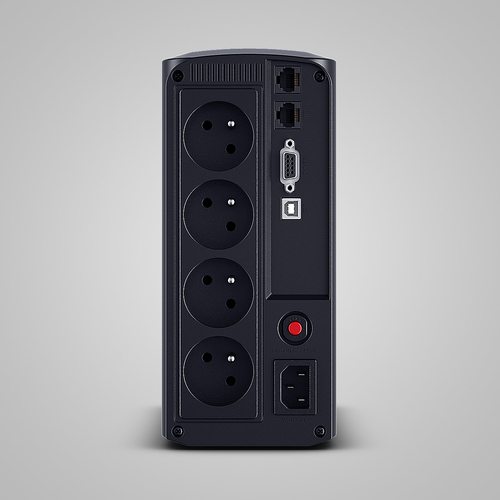

CyberPower PR750ELCDN uninterruptible power supply (UPS) Line-Interactive 7.5 kVA 675 W 6 AC outlet(s)
CyberPower PR750ELCDN, Line-Interactive, 7.5 kVA, 675 W, Pure sine, 150 V, 301 V
Availability: Arriving Soon
CyberPower PR750ELCDN Line-Interactive UPS, with seamless Pure Sine Wave, provides the best power protection available for office system devices including PCs, workstations, networking devices, and peripherals. It’s typically integrated in the back office, server room, and data center environment. The UPS can be locally managed via USB or serial ports, or remotely managed via an SNMP Card (an optional Remote Management Card), allowing administrators and users unsurpassed flexibility to remotely access each UPS through the network to perform real-time monitoring, UPS configurations, and scheduled system shutdowns by using PowerPanel Management software.
| Features | |
|---|---|
| UPS topology | Line-Interactive |
| Output power capacity | 7.5 |
| Output power | 675 |
| Waveform | Pure sine |
| Input operation voltage (min) | 150 |
| Input operation voltage (max) | 301 |
| Input frequency | 50/60 |
| Output operation voltage (min) | 230 |
| Output operation voltage (max) | 230 |
| Output frequency | 50/60 |
| Automatic Voltage Regulation (AVR) | Y |
| Maximum current | 10 |
| Surge energy rating | 405 |
| Response time | 4 |
| Power factor | 0.9 |
| EMI/RFI noise filtering | Y |
| Surge protection | Y |
| Power protection features | Overload |
| Audible alarm(s) | Y |
| Audible alarm modes | Alarm when on battery,Fault,Low battery alarm,Overload alarm |
| Ports & interfaces | |
| AC outlet types | C14 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 6 |
| USB port | Y |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Number of batteries supported | 1 |
| Typical backup time at full load | 2.5 |
| Typical backup time at half load | 10.5 |
| Battery recharge time | 8 |
| Hot-swap battery | Y |
| Design | |
| Form factor | Tower |
| Housing material | Metal |
| Cable length | 1.8 |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Error,Operation |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -15 - 45 |
| Operating relative humidity (H-H) | 0 - 95 |
| Storage relative humidity (H-H) | 0 - 95 |
| Operating altitude | 0 - 3000 |
| Non-operating altitude | 0 - 15000 |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, EAC, RCM |
| Packaging content | |
| Cables included | Serial,USB cable |
| Weight & dimensions | |
| Width | 136 |
| Depth | 349 |
| Height | 162 |
| Weight | 12300 |
| Packaging data | |
| Package width | 272 |
| Package depth | 486 |
| Package height | 283 |
| Package weight | 13300 |
| Logistics data | |
| Harmonized System (HS) code | 8504408590 |
| Country of origin | China |
