ATEN 8-Port USB 3.0 4K DisplayPort KVM Switch
ATEN 8-Port USB 3.0 4K DisplayPort KVM Switch, 4096 x 2160 pixels, 4K Ultra HD, 18.44 W, Black
Availability: Arriving Soon
The ATEN CS19208 8-Port USB 3.0 4K DisplayPort KVM Switch can effectively access and control up to 8 DisplayPort computers from a single USB keyboard, USB mouse, and monitor console. With its dual interface console, users can choose between DisplayPort/HDMI video output supporting high video quality up to 4K DCI (4096 x 2160 @ 60Hz), presenting crystal-clear visuals.1x CS19208 8-Port USB 3.0 4K DisplayPort KVM Switch with Rack Mounting Kit2x LIN5-20K1-K13G DisplayPort 1.4 Cables2x LIN6-11C1-E12G USB 3.0 Cables2x LIN5-0205-21CG Audio Cables1x LIN5-04A2-J11G Firmware Upgrade Cable1x 0X02-0017-000G Foot Pad Set (4 pcs)1x 0AD8-8012-33MG + LIN2-418K-E12G Power Adapter1x User Instructions
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 8 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 8 |
| Console ports | 3.5mm headphone,DisplayPort,HDMI,USB A |
| Console USB ports quantity | 2 |
| USB hub | Y |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| USB connector type | USB Type-A,USB Type-B |
| Audio connections | Y |
| Headphone outputs | 9 |
| Number of microphone inputs | 1 |
| DC-in jack | Y |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 |
| Video bandwidth | 60 |
| Scan interval | 1,5,255 |
| Design | |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Y |
| Push button | Y |
| Hot keys | Y |
| Display | |
| Built-in display | N |
| Power | |
| Input voltage | 12 |
| Power consumption (typical) | 18.44 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -20 - 60 |
| Operating relative humidity (H-H) | 0 - 80 |
| Storage relative humidity (H-H) | 0 - 80 |
| Weight & dimensions | |
| Width | 432.4 |
| Depth | 214.3 |
| Height | 44 |
| Weight | 3750 |
| Packaging data | |
| Package width | 133 |
| Package depth | 499 |
| Package height | 324 |
| Package weight | 4830 |
| Packaging content | |
| Quick installation guide | Y |
| Manual | Y |
| Logistics data | |
| Master (outer) case net weight | 11250 |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 427 |
| Master (outer) case length | 519 |
| Master (outer) case height | 348 |
| Master (outer) case gross weight | 15570 |
| Products per master (outer) case | 3 |
Commercial Grade Wire Marking
DDC Adapter for

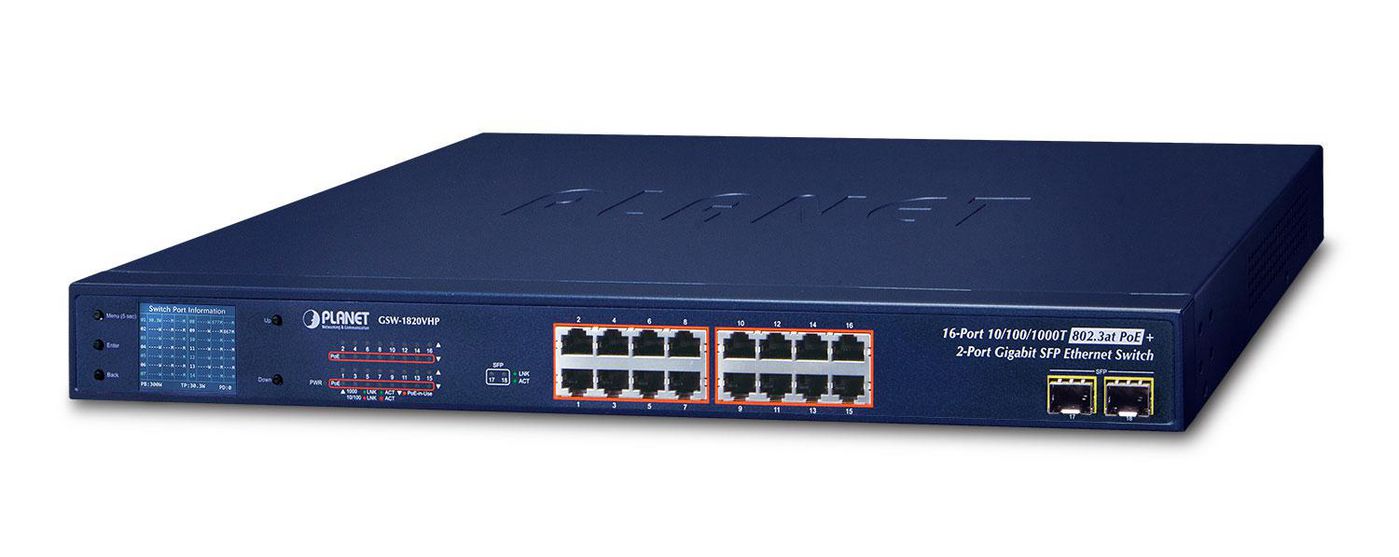

16-Port 10/100/1000T 802.3at
Individual Pipe Markers on a

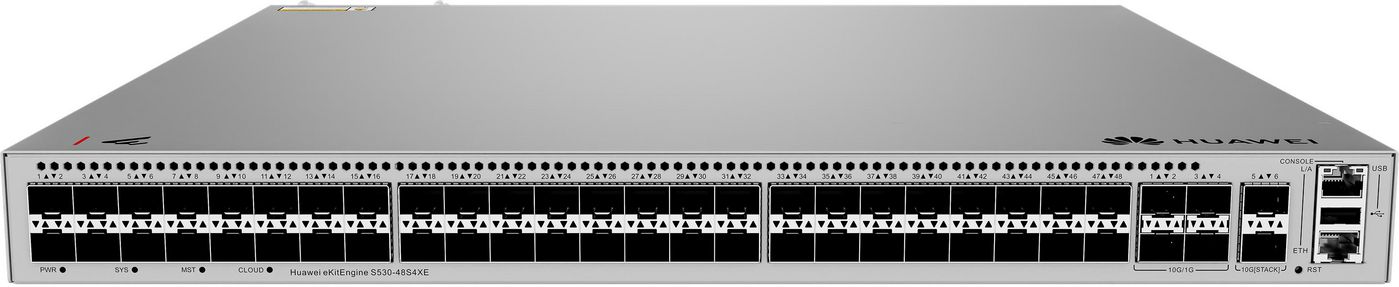

S530-48S4XE
