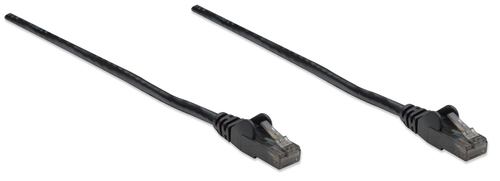

Lindy 7.5m CAT6 U/UTP Network Cable, Black
Lindy 7.5m CAT6 U/UTP Network Cable, Black, 7.5 m, Cat6, U/UTP (UTP), RJ-45, RJ-45, Black
Availability: Arriving Soon
Cat.6 U/UTP PVC network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameters (NExT, FExT, etc.) despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.Available colours: Blue, Red, Green, Yellow, Black, White, Orange, Purple, Grey.
| Features | |
|---|---|
| Product colour | Black |
| Cable length | 7.5 |
| Cable standard | Cat6 |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male connector |
| Connector 2 gender | Male connector |
| Connector contacts plating | Gold |
| Connector shielding | Y |
| Connector shield material | Aluminium |
| Jacket material | Polyvinyl chloride (PVC) |
| Conductor material | Copper |
| Cabling technology | 10/100/1000Base-T(X) |
| AWG wire size | 24 |
| Frequency | 250 |
| Bend radius (min) | 69 |
| Snagless cable boot | Y |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 |
| Storage temperature (T-T) | -20 - 75 |
| Certificates | |
| Certification | RoHS, REACH, UL, California Proposition 65 |
| Weight & dimensions | |
| Outer diameter | 5.8 |
| Connector 1 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 |
| Connector 2 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 |
| Packaging data | |
| Package type | Polybag |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
